Rigol DG4000 Series

RIGOL Chapter 1 Quick Start
DG4000 Series User’s Guide
1-24
To Use the Rack Mount Kit
This instrument can be installed into a standard 19 inches cabinet.

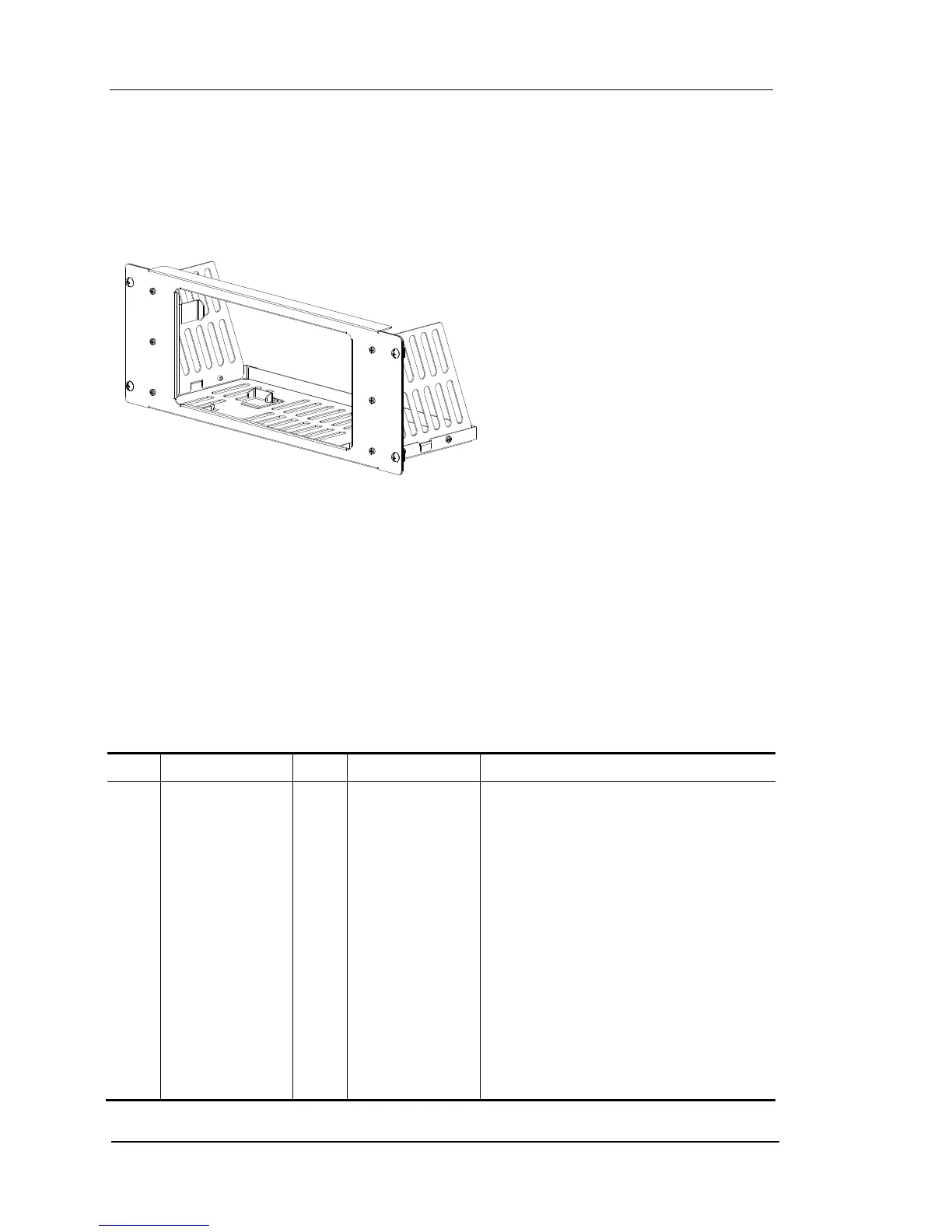

Figure 1-10 Rack Mount Kit
Kit Parts List
The part list of the rack mount kit (as shown in Figure 1-10) of DG4000 is as shown
in the table below. Wherein, the “No.” column corresponds to Figure 1-11 and
Figure 1-12.
Table 1-1 Kit Parts List
No.
Name
Qty
Part No.
Description
1-1
Front Panel
1
RM-DG4-01
1-2
Support Board
1
RM-DG4-02
1-3
Left Plate
1
RM-DG4-03
1-4
Right Plate
1
RM-DG4-04
1-5
Pressure Feet
2
RM-DG4-05
1-6
Built-in Fitting
2
RM-DG4-06
2-1
M4 Screw
18
RM-SCREW-01
M4 x 6 Phil-Slot Pan Head Machine
Screw Nail
2-2
M6 Screw
4
RM-SCREW-02
M6 x 20 Phil-Slot Pan Head Machine
Screw Nail
2-3
M6 Screw
4
RM-SCREW-03
M6 x 4 Square Machine Female
Screw Contain Lock Blade
