TIP
You can also click or tap > Utility > Setup and select "Swit
ch On" in "Power Status" item.
In this way, the instrument powers on once connected to power.
5.4 Setting the System Language
This oscilloscope supports multiple languages. You can click or tap > Utility >
Setup > Language to select the syst
em language.
5.5 Connecting Probes
RIGOL provides passive probes for DHO1000 series. For specific probe models, please
refer t
o
DHO1000 series Data Sheet
. For detailed technical information of the probes,
please refer to the corresponding Probe User Guide.
Connect the Passive Probe
1. Connect the BNC terminal of the probe to an analog channel input terminal of the
oscilloscope on the front panel as shown in the figure below.
2. Connect the ground alligator clip or spring of the probe to the circuit ground
terminal, and then connect the probe tip to the circuit point to be tested.

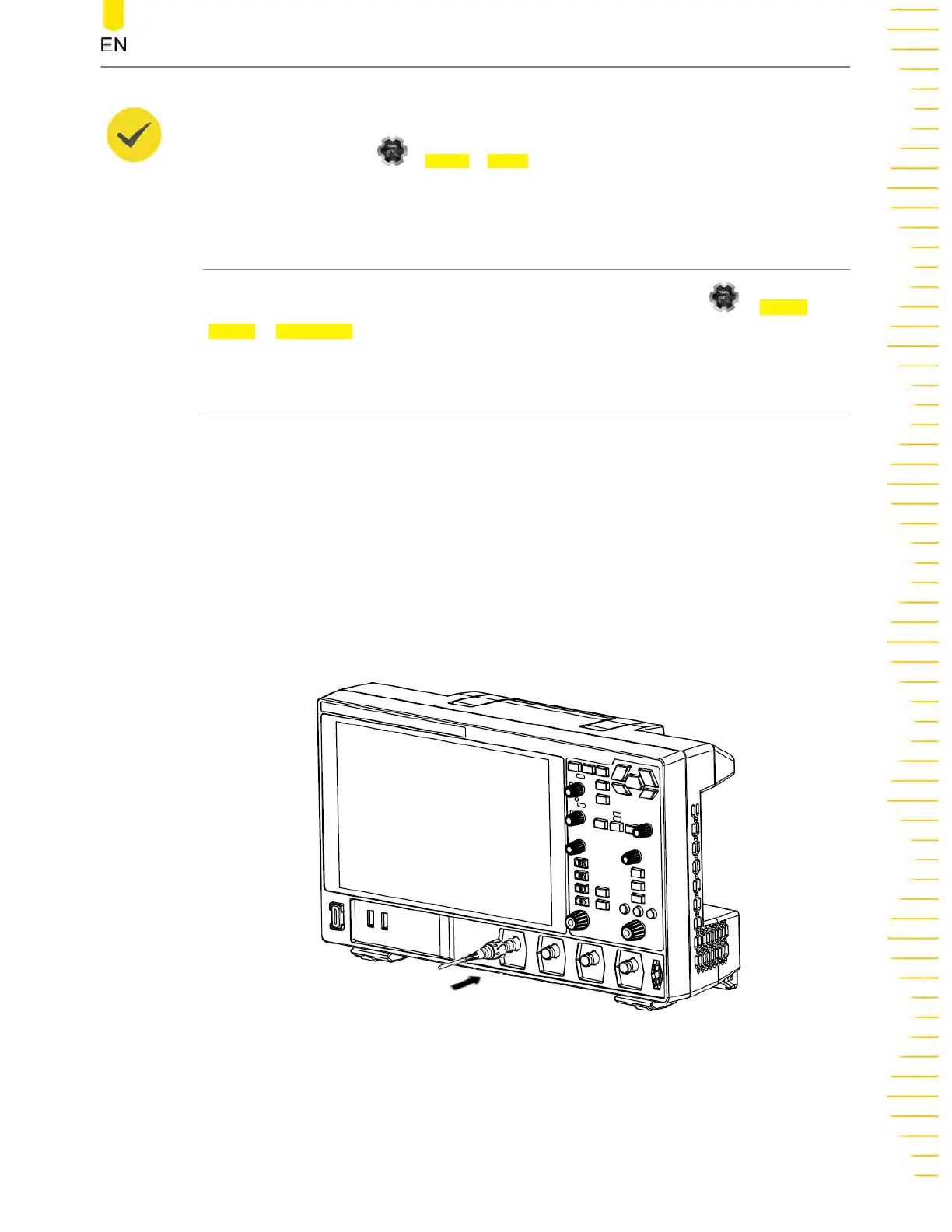

Figure 5.3 Connecting the Passive Probe
Aft
er you connect the passive probe, check the probe function and probe
compensation adjustment before making measurements. For details, please refer to
Function Inspection
and
Probe Compensation
.
To Prepare for Use
