6. Test the other channels in the same way. If you see the waveform, but the square
wav
e is not shaped correctly as shown above, perform the procedure described in
Probe Compensation
. If you do not see the waveform, perform these steps again.
WARNING
To av
oid electric shock when using the probe, please make sure that the insulated wire of
the probe is in good condition. Do not touch the metallic part of the probe when the
probe is connected to high voltage source.
5.7 Probe Compensation
When used for the first time, the oscilloscope probe must be compensated to match
the input characteristics o
f the oscilloscope channel to which it is connected. A non-
compensated or poorly compensated probes can introduce measurement inaccuracy
or errors. The compensation procedure is as follows:
1. Perform step 1, 2, 3, and 4 in
Function Inspection
.

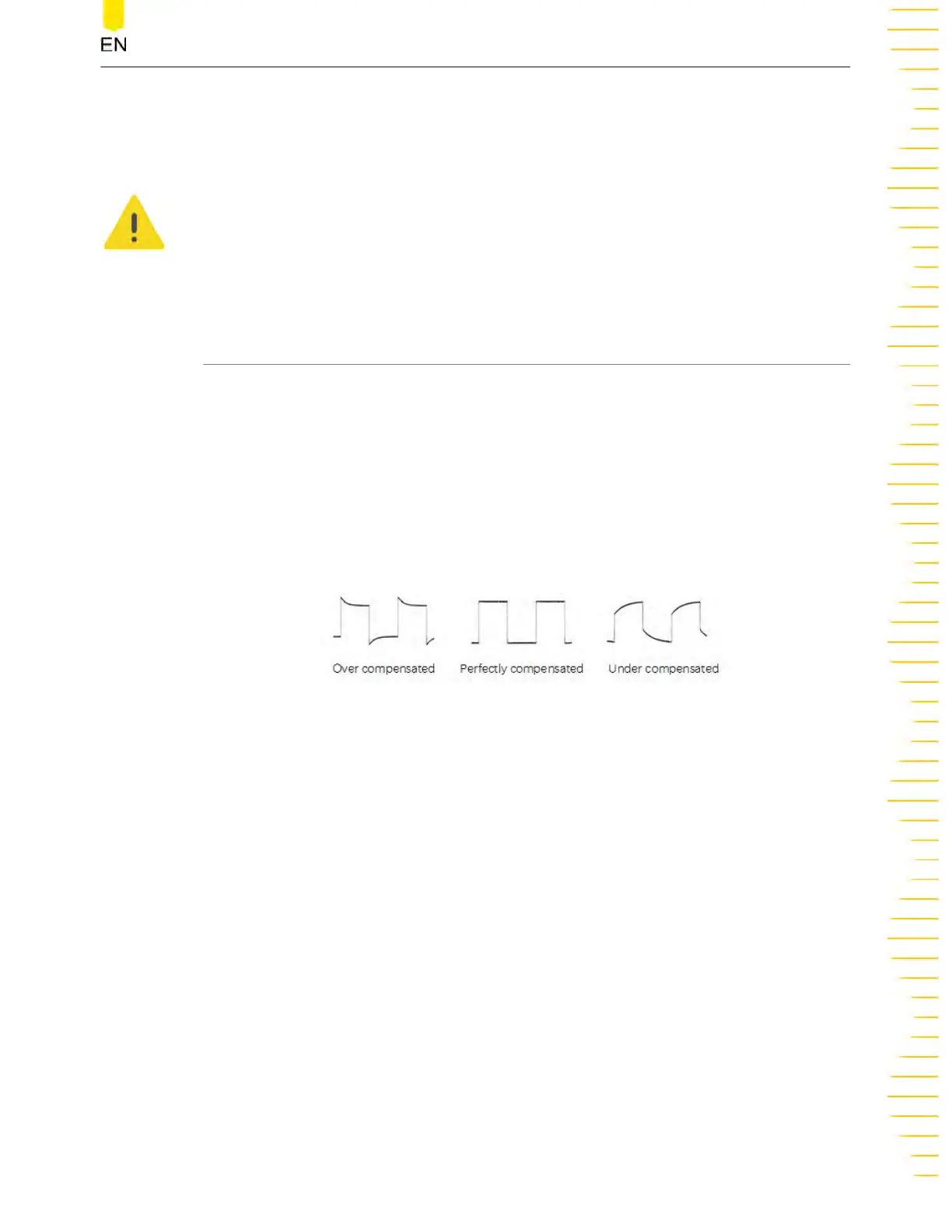

2. Check the displayed waveforms and compare them with waveforms shown in the
figure below.
Figure 5.6 Probe Compensation
3. Use the probe compensation adjustment t
ool provided in the accessories to adjust
the low-frequency compensation adjustment hole on the probe until the displayed
waveform is consistent with the "Perfectly compensated" waveform shown in the
figure above.
To Prepare for Use
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
17
