3. The Data log stop
To set the conditions to stop Data Log.
Press  Log  Stop, the interface shows below.

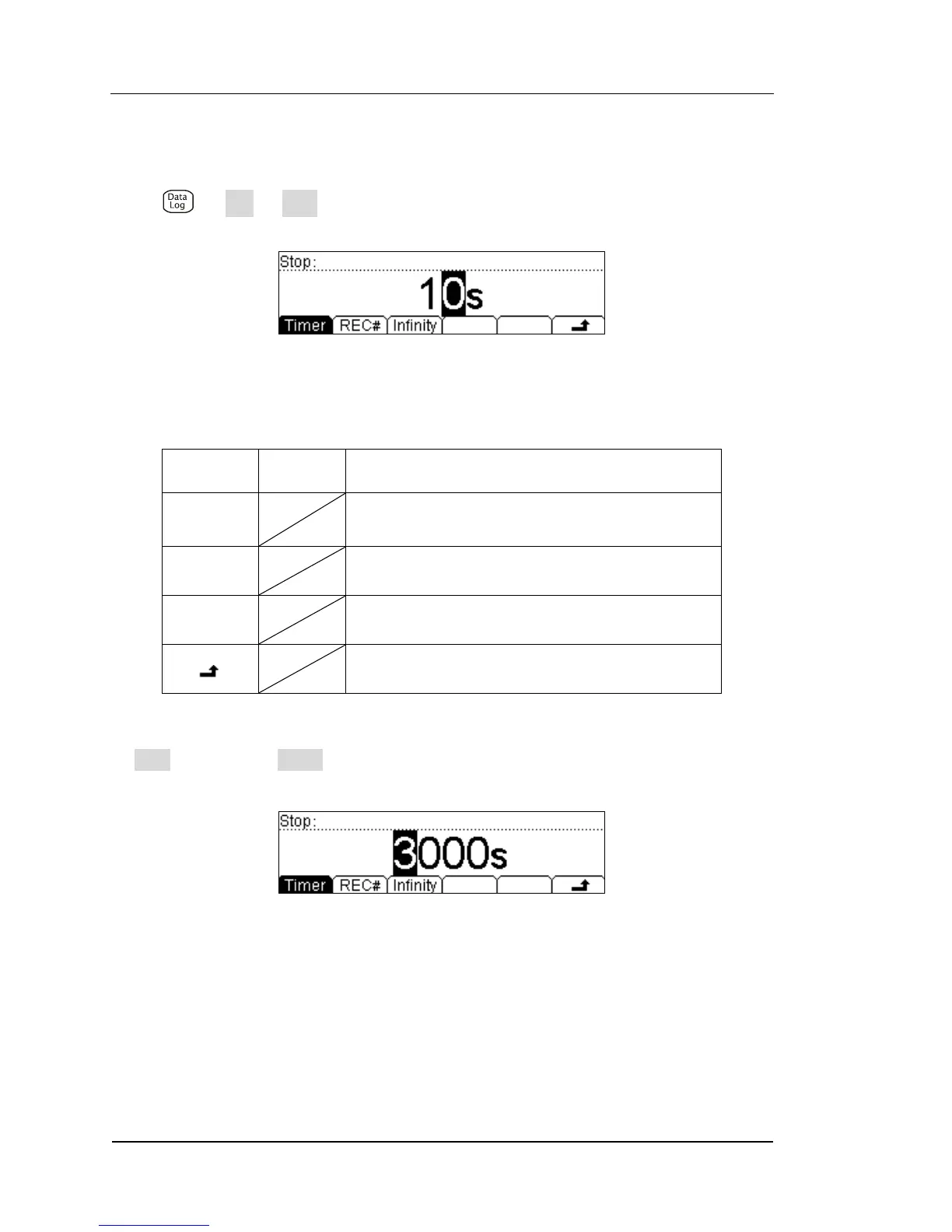

Figure 2- 63 The Stop Condition Menu Interface
Table 2- 40 The Stop Condition Menu Explanation
Function
Menu
Setting
Explanation
Timer
To set the time of Data Log, stop the sampling
when the time is over.
REC#
To set the sample points of Data Log, stop the
sampling when reach the set number.
Infinity
To set the Data Log don‟t stop sampling until
you force to stop the sampling.
Save all the changes, back to a higher level
menu.
Timer
In Stop menu, press Timer button to set the stop time of Data Log, stop the sample
when the time is over.
Figure 2- 64
(1). In timer mode, the default value for timer is 10s.
(2). The setting scope of Timer is from 0s to 4194s.
(3). Timer parameter is saved in inviolate memory.
