RIGOL Chapter 2 Quick Start
DP1308A Service Guide
Track: enable the track function
Help: system online help
1. Key Indicators
The key will be illuminated when you press the power key and the
instrument enters working state.
On/Off The corresponding key will be illuminated when the channel is enabled.
Wave Disp The key will be illuminated when waveform display is enabled.
Timer The key will be illuminated when the timing output function is enabled.
Track The key will be illuminated when the track function is enabled.
Store/Recall The key will be illuminated when the instrument enters the store
and recall menu.
Utility The key will be illuminated when the instrument enters system setting.
Help The key will be illuminated when the online help is enabled.

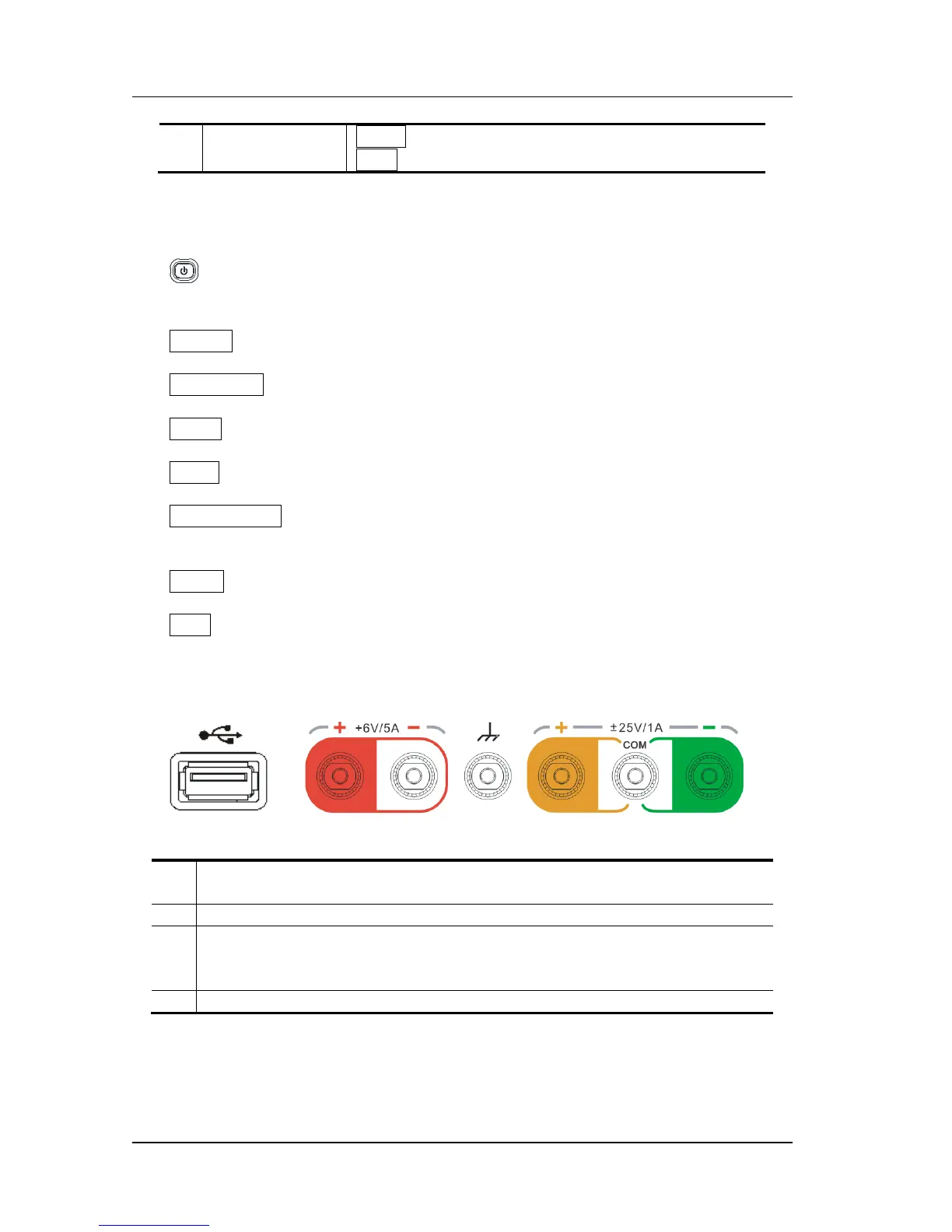

2. Front Panel Connectors
① ② ③ ④
USB Host: connect the instrument (host device) with external USB
devices, such as USB storage device
Output terminals of +6V channel
This terminal is connected with the chassis and ground wire and is
grounded when the instrument is powered on. You can directly connect
other electric devices to this terminal to ground them.
Ouput terminals of ± 25V channel
Remark*: COM is a common terminal.
