Rigol DS1000Z Series User Manual

Chapter 6 To Make Measurements RIGOL
DS1000Z User’s Guide
6-21

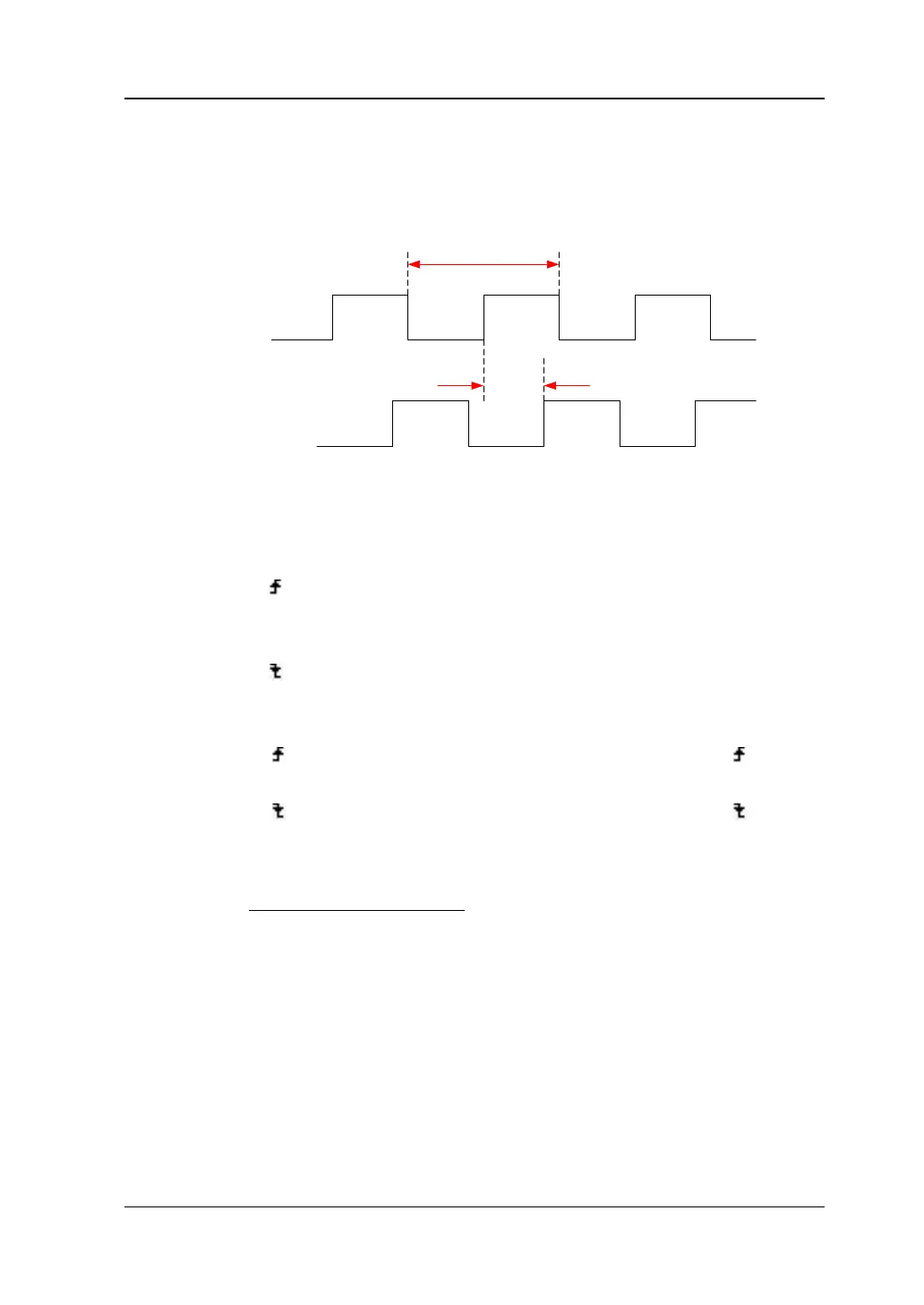

Delay and Phase
Source A
Source B
Period
Delay
Source A and source B can be CH1 or CH2.
1. Delay A→B : the time difference between the rising edges of source A and
source B. Negative delay indicates that the selected rising edge of source A
occurred after the selected edge of source B.
2. Delay A→B : the time difference between the falling edges of source A and
source B. Negative delay indicates that the selected edge of source A occurred
after the selected edge of source B.
3. Phase A→B : phase difference calculated according to “Delay A→B ” and the
period of source A, expressed in degree.
4. Phase A→B : phase difference calculated according to “Delay A→B ” and the
period of source A, expressed in degree.
°360
×
ASource of Period The
Delay
=Phase
