Rigol DS1000Z Series User Manual

RIGOL Chapter 14 System Function Setting
DS1000Z User’s Guide
14-2
Remote Interface Configuration
DS1000Z can communicate with PC via LAN and USB buses. Please refer to the
introduction below to configure the corresponding interface before using the remote
interfaces.
LAN Setting
Press Utility  IO Setting  LAN Conf. to turn on the LAN setting interface. You
can view the network connection status and configure the network parameters.
Network Status
Connect the oscilloscope to your local area network using the network cable. The
network hole of the oscilloscope is at the rear panel. The oscilloscope will give
different prompts according to the current network connection status.
 Net Config Success!
 Acquire IP…
 IP Conflict!
 Unconnected!
 DHCP Fail!
 Read Status Fail!

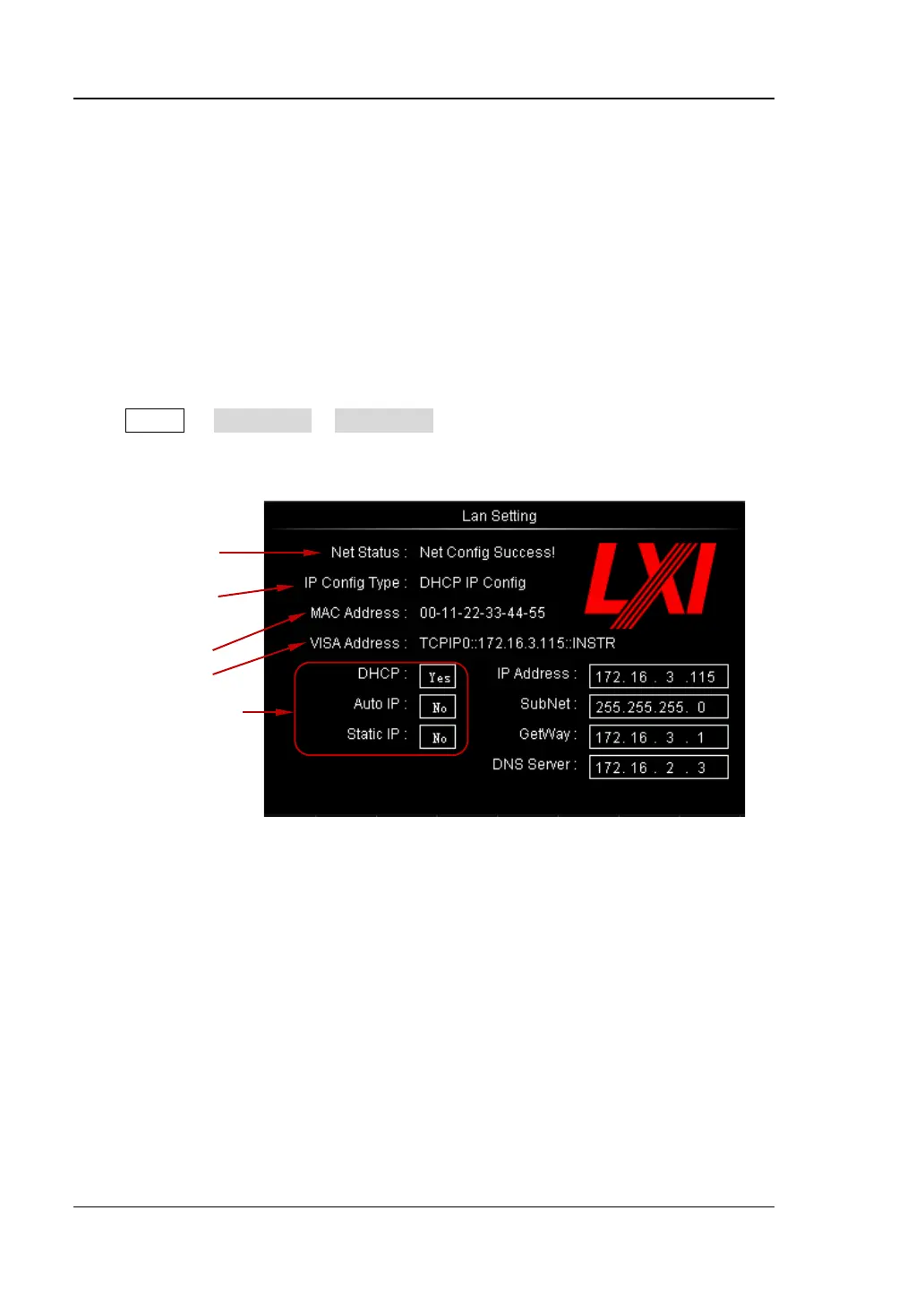

Network Status
Current IP
Config Type
MAC Address
VISA Address
IP Config Type
Status
