RIGOL Chapter 1 Quick Start
DS1000Z User’s Guide
1-16

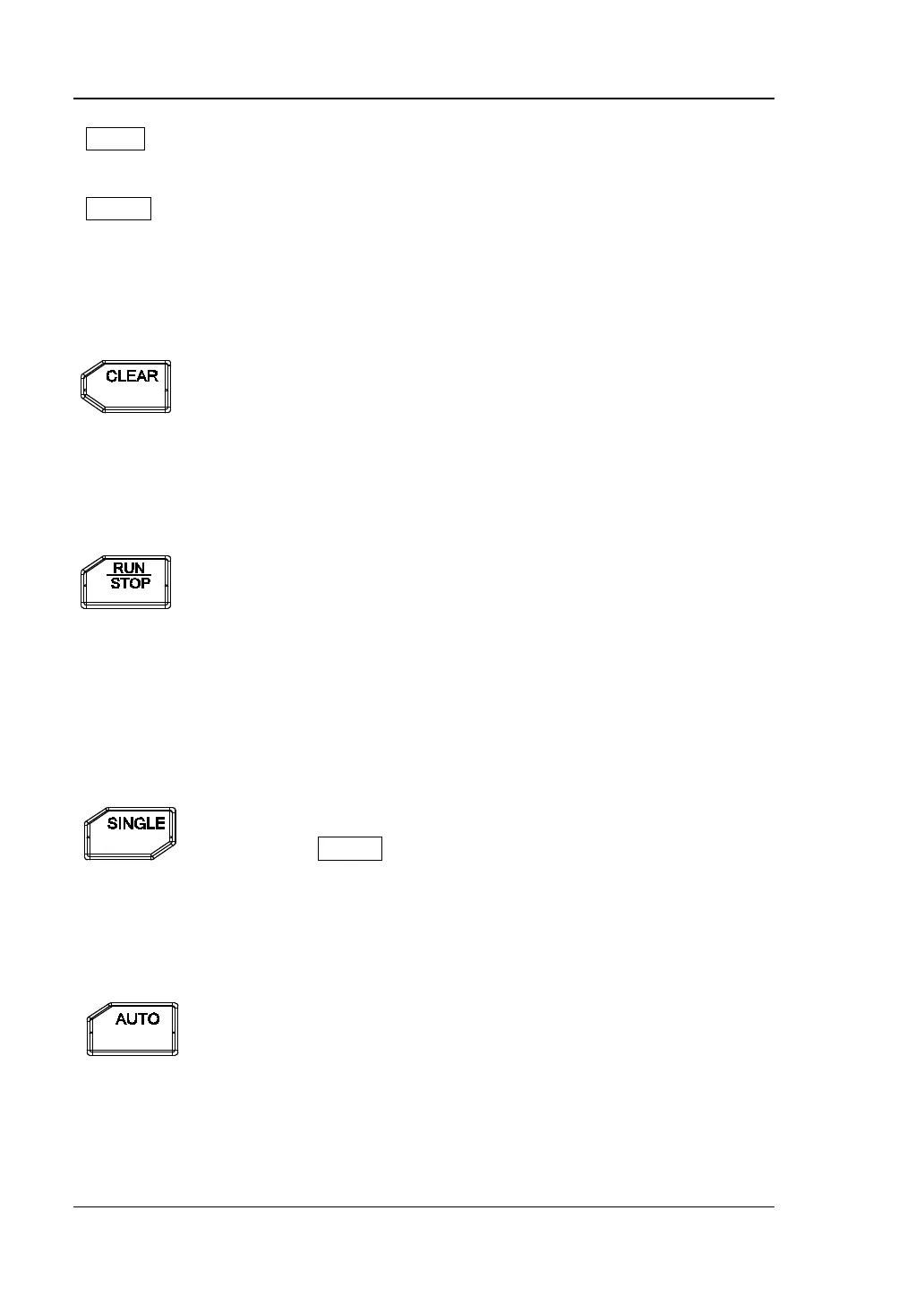

MENU: press this key to open the trigger operation menu. This oscilloscope
provides various trigger types.
FORCE: press this key to generate a trigger signal forcefully.
CLEAR
Press this key to clear all the waveforms on the screen. If the
oscilloscope is in “RUN” state, new waveforms will still be displayed.
RUN/STOP
Press this key to set the state of the oscilloscope to “RUN” or
“STOP”.
In “RUN” state, the key is illuminated in yellow.
In “STOP” state, the key is illuminated in red.
SINGLE
Press this key to set the trigger mode to “Single”. In single trigger
mode, press FORCE to generate a trigger signal immediately.
AUTO
Press this key to enable the waveform auto setting function. The
oscilloscope will automatically adjust the vertical scale, horizontal
time base and trigger mode according to the input signal to realize
optimum waveform display. Note that auto setting requires that the
frequency of the signal under test should be no lower than 50 Hz,
the duty cycle be greater than 1% and the amplitude be at least 20
