To Use the Security Lock
If needed, you can use the security lock (please buy it yourself) to lock the
oscilloscope to a fixed location. The method is as follows, align the lock with the lock
hole and plug it into the lock hole vertically, turn the key clockwise to lock the
oscilloscope and then pull the key out.

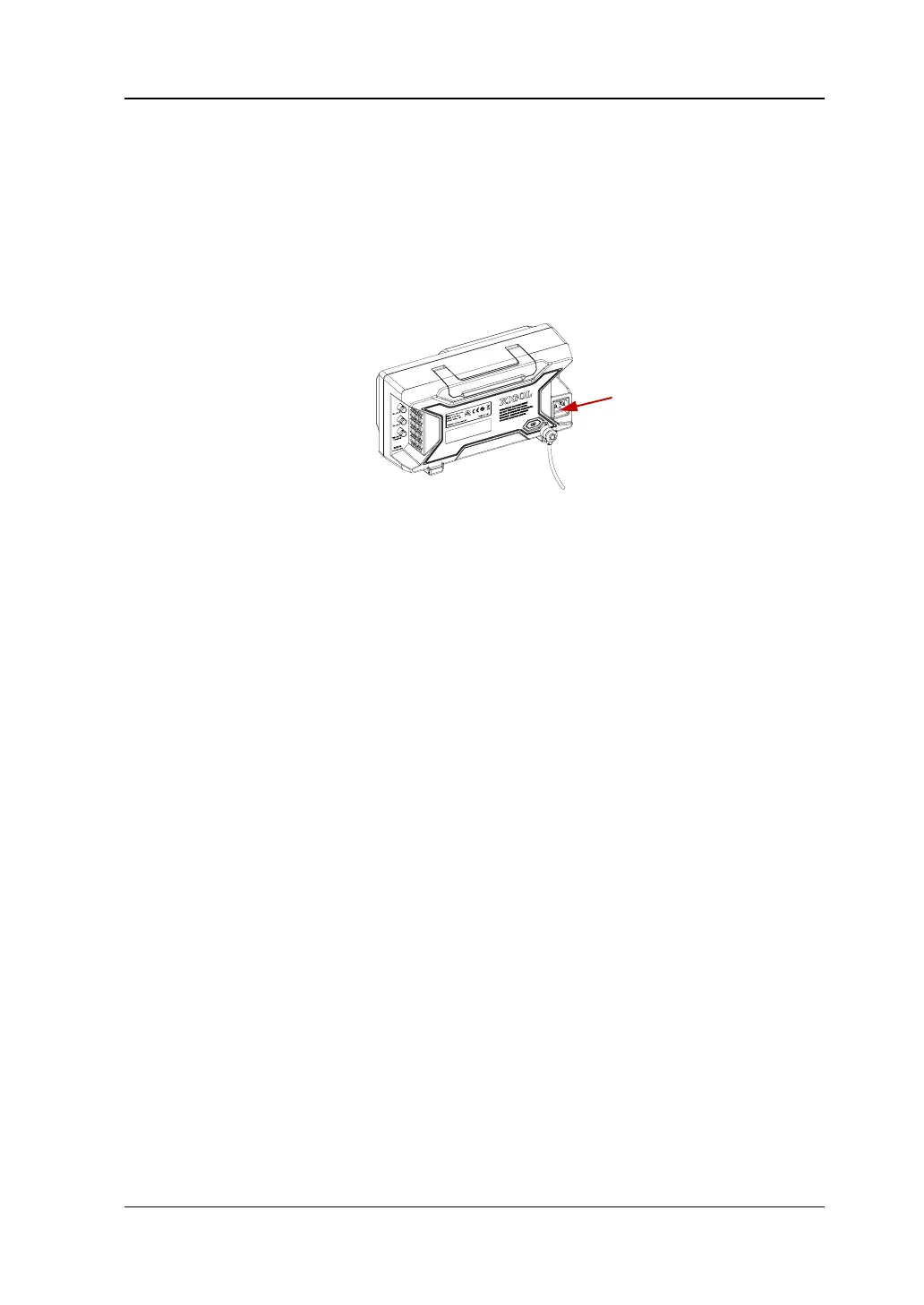

Figure 0-12 To Use the Security Lock
Note: please do not insert other articles into the security lock hole to avoid damaging
the instrument.
Security Lock Hole
