Rigol DS1000Z Series User Manual

Chapter 12 Signal Source RIGOL
DS1000Z User’s Guide
12-5

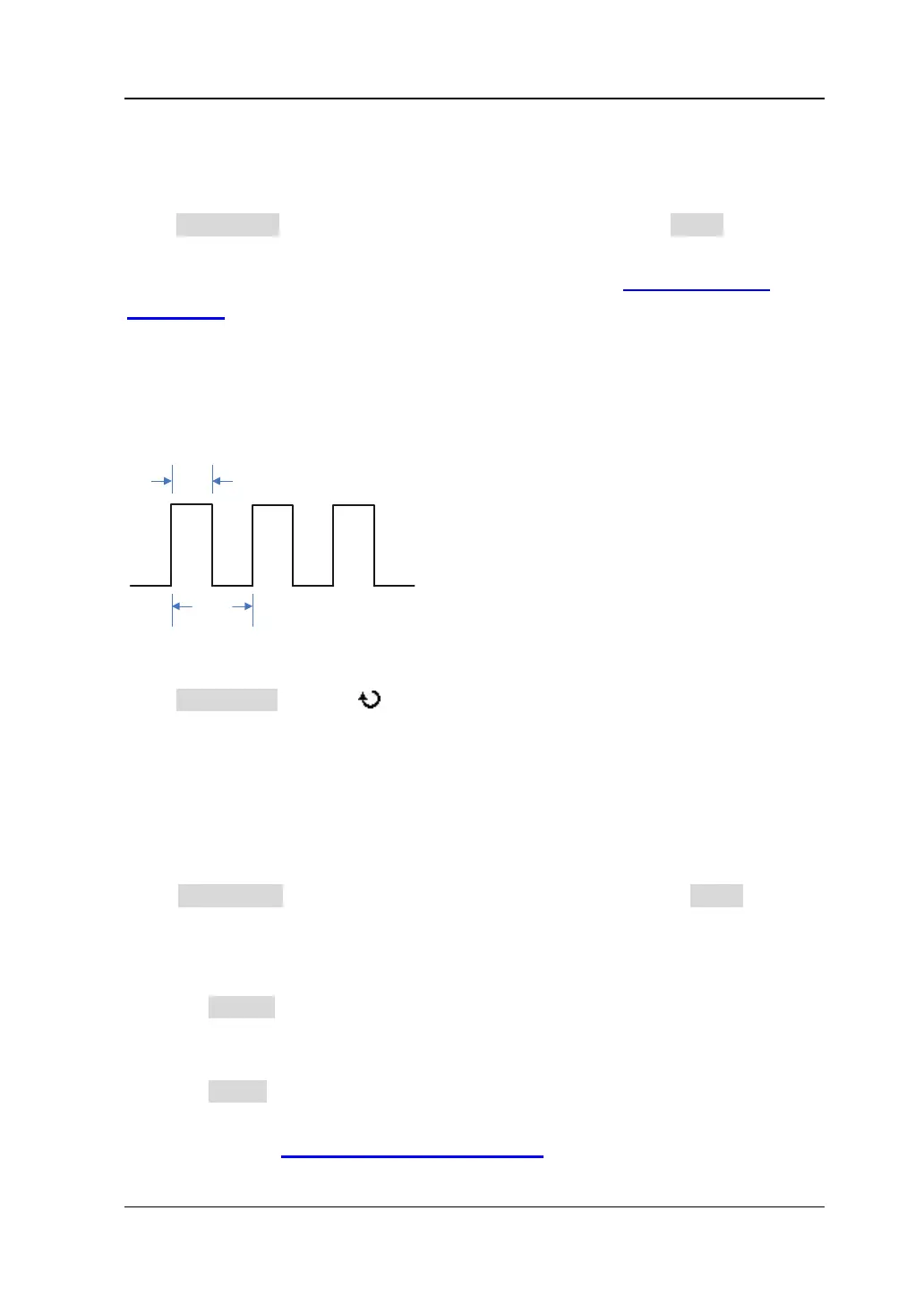

To Output Pulse Waveform
Press Src1 Setup to enter the waveform setting interface. Press Wave to select
“Pulse”, at this point, you can set relative parameter of the sine signal. For the
specified setting method, please refer to the instruction of “
To Output Sine
Waveform”. “Duty cycle” is introduced only in this chapter.
Duty cycle
Duty cycle is difined as the percentage that the high level takes up in the whole
period of pulse.
T
t
Duty Cycle=t/T*100%
To set the duty cycle
Press Duty Cycle and use to set the duty cycle of the current pulse signal and
the range available is from 10% to 90%.
To Output DC Waveform
Press Src1 Setup to enter the waveform setting interface. Press Wave to select
“DC”, at this point, you can output DC signals with -2.5 V to +2.5 V offset.
1. Output
Press Output to turn the signal output on or off.
2. To set DC offset
Press Offset to set the offset value of the current DC signal and the range
available is -2.5 V to +2.5 V. For the setting method, please refer to the
instruction of “
To set the DC offset voltage”.
