Chapter 12 Signal Source RIGOL
DS1000Z User’s Guide
12-9
Haversine

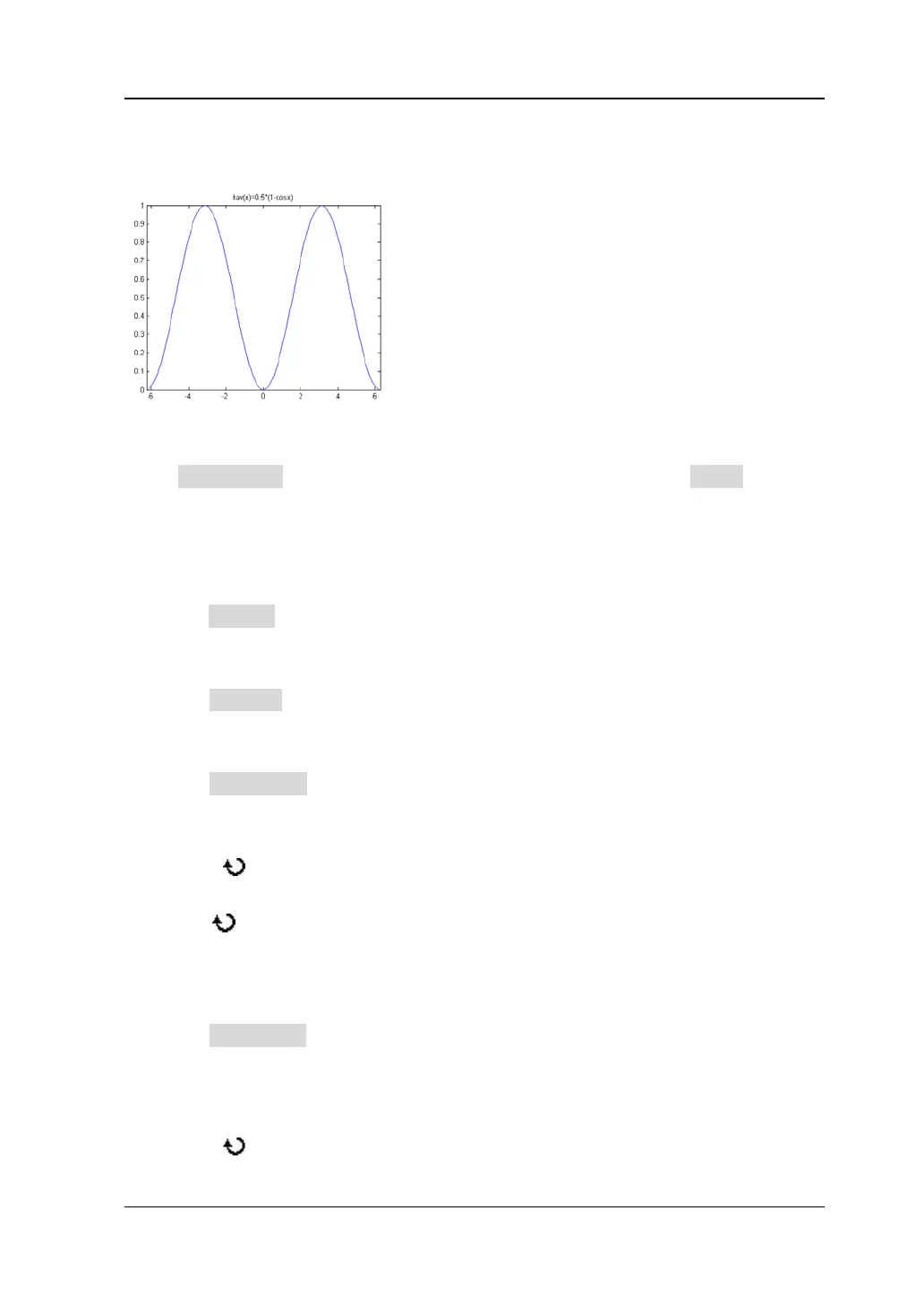

The figure below shows a Haversine waveform.
Press Src1 Setup to enter the waveform setting interface. Press Wave to select
“Built-In”, at this point, you can set relative parameter of the output signal according
to the kinds of built-in waveform selected.
1. Output
Press Output to turn the signal output on or off.
2. To select built-in waveform
Press Built-In to select any one of the 7 kinds of built-in waveforms.
3. To set frequency
Press Frequency to set the frequency of the current signal and the range
available is from 100 mHz to 1 MHz.
Method one:
Rotate
directly to set the desired frequency value.
Method two:
Press
to input desired paramrter values and unist directly using the pop-up
numeric keyboard.
4. To set amplitude
Press Amplitude to set the amplitude of the current signal and the range
available is from 20 mVpp to 5Vpp (when the impedance is “HighZ”) or from 10
mVpp to 2.5 Vpp (when the impedance is “50 Ω”).
Method one:
Rotate
directly to set the desired implitude value.
