Chapter 3 To Set the Horizontal System RIGOL
DS1000Z User’s Guide
3-3

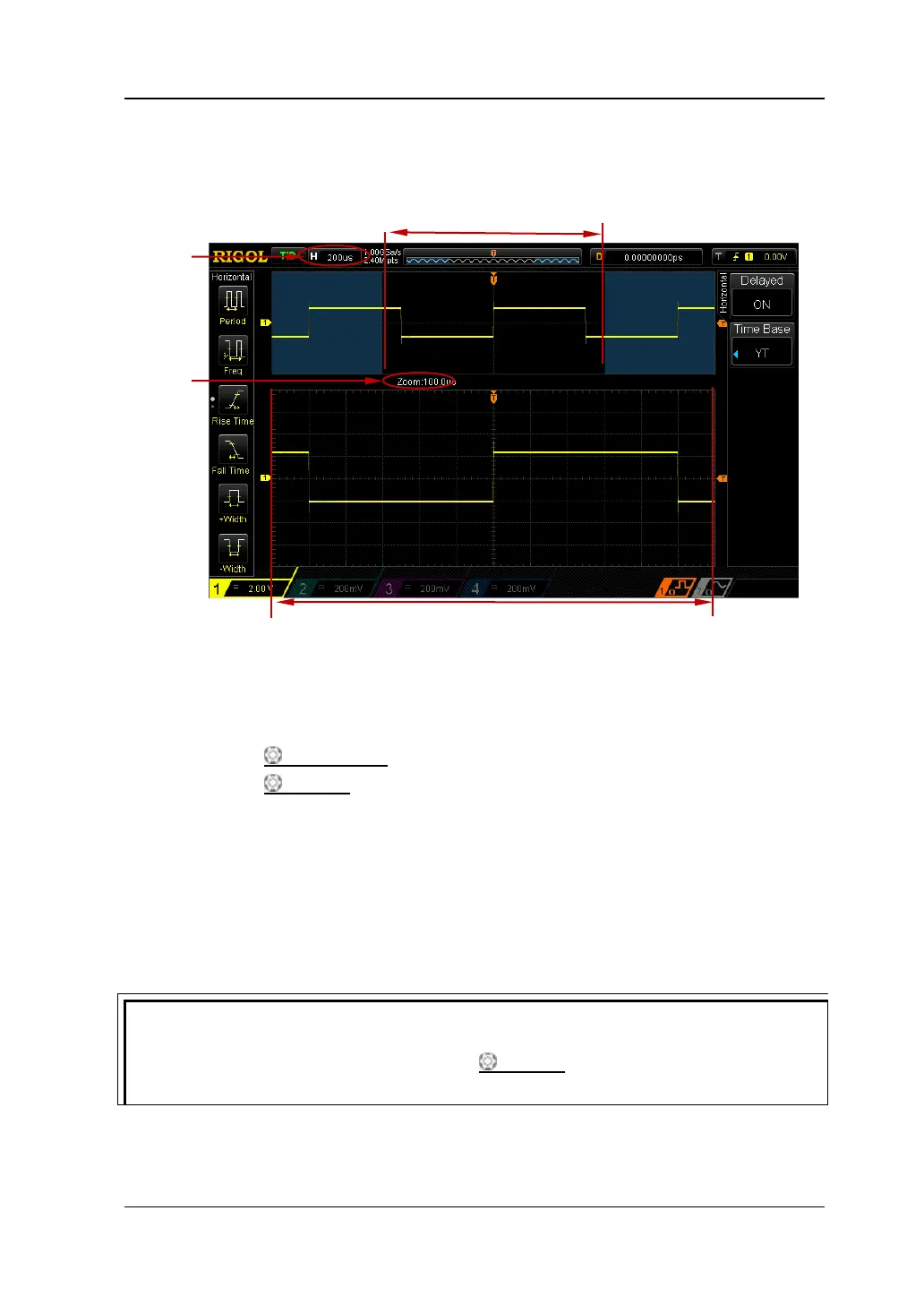

In delayed sweep mode, the screen is divided into two display areas as shown in the
figure below.
The waveform before enlargement:
The waveform in the area that has not been covered by the subtransparent blue in
the upper part of the screen is the waveform before enlargement. You can turn
HORIZONTAL
POSITION to move the area left and right or turn
HORIZONTAL
SCALE to enlarge or reduce this area.
The waveform after enlargement:
The waveform in the lower part of the screen is the horizontally expanded waveform.
Note: compared to the main time base, the delayed time base has increased the
waveform resolution (as shown in the figure above). The delayed time base should
be less than or equal to the main time base.
Tip
You can also press down HORIZONTAL
SCALE (delayed sweep shortcut key)
to directly switch to delayed sweep mode.
The waveform before
enlargement
Main time
base
Delayed
Sweep
Time Base
The waveform after enlargement
