Measurement Setting
1. Source Selection
Press Measure  Source to select the source channel (CH1, CH2, MATH or
any channel of D0-D15) of the time, voltage or area parameter. The color of the
parameter icons under MENU at the left of the screen will change with the
source selected.
2. Measurement Range
Press Measure  Range  Range to select “Screen” or “Cursor” for
measurement.
When “Cursor” is selected, two cursor lines appear on the screen. At this point,
press CursorA and CursorB and use to adjust the position of the two
cursor lines respectively so as to determine the measurement range. Or, press
CursorAB and use to adjust the positions of cursor A and cursor B at the
same time.
Note: You can press continuously to switch among CursorA, CursorB and
CursorAB.

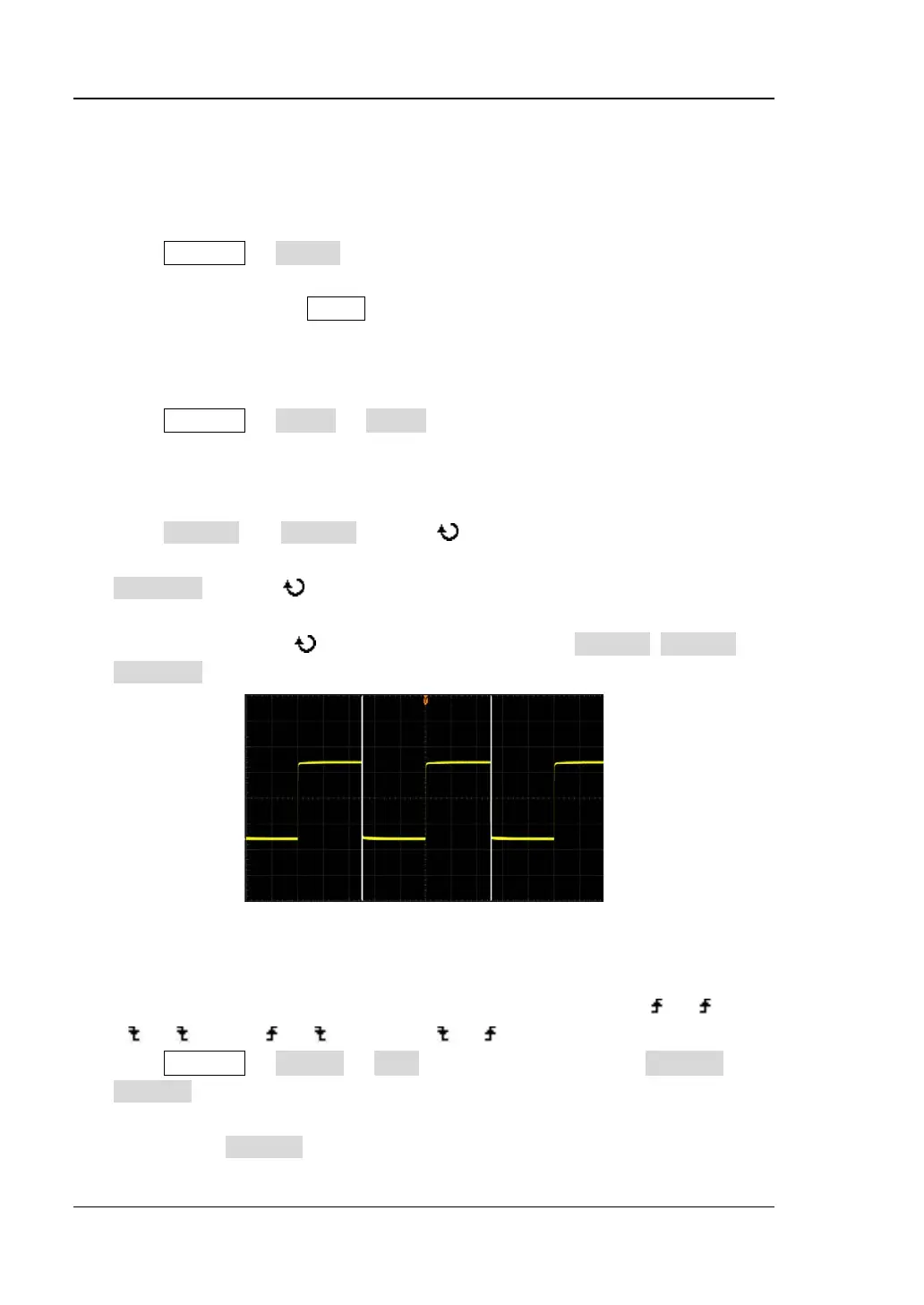

Figure 6-6 Cursor Region
3. Delayed Measurement Setting
Specify source A and source B in the measurement items “Dly A
→B ”, “Dly
A
→B ”, “Dly A →B ” and “Dly A →B ”.
Press Measure  Setting  Type  “Delay” and then press SourceA and
SourceB to set the two channel sources (CH1, CH2 or any channel of D0-D15)
of delayed measurement respectively.
Note: When SourceA is set to any analog channel (or digital channel),
