RIGOL Chapter 3 To Set the Horizontal System
3-2 MSO2000A/DS2000A User’s Guide
Delayed Sweep
Delayed sweep can be used to enlarge a length of waveform horizontally to view the
waveform details.
Press MENU in the horizontal control area (HORIZONTAL) at the front panel and
press Delayed to enable or disable delayed sweep. In delayed sweep mode, the
screen is divided into two display areas as shown in the figure below.
Note: To enable delayed sweep, the current time base mode must be “Y-T” and the
“Pass/Fail test” must be disabled.

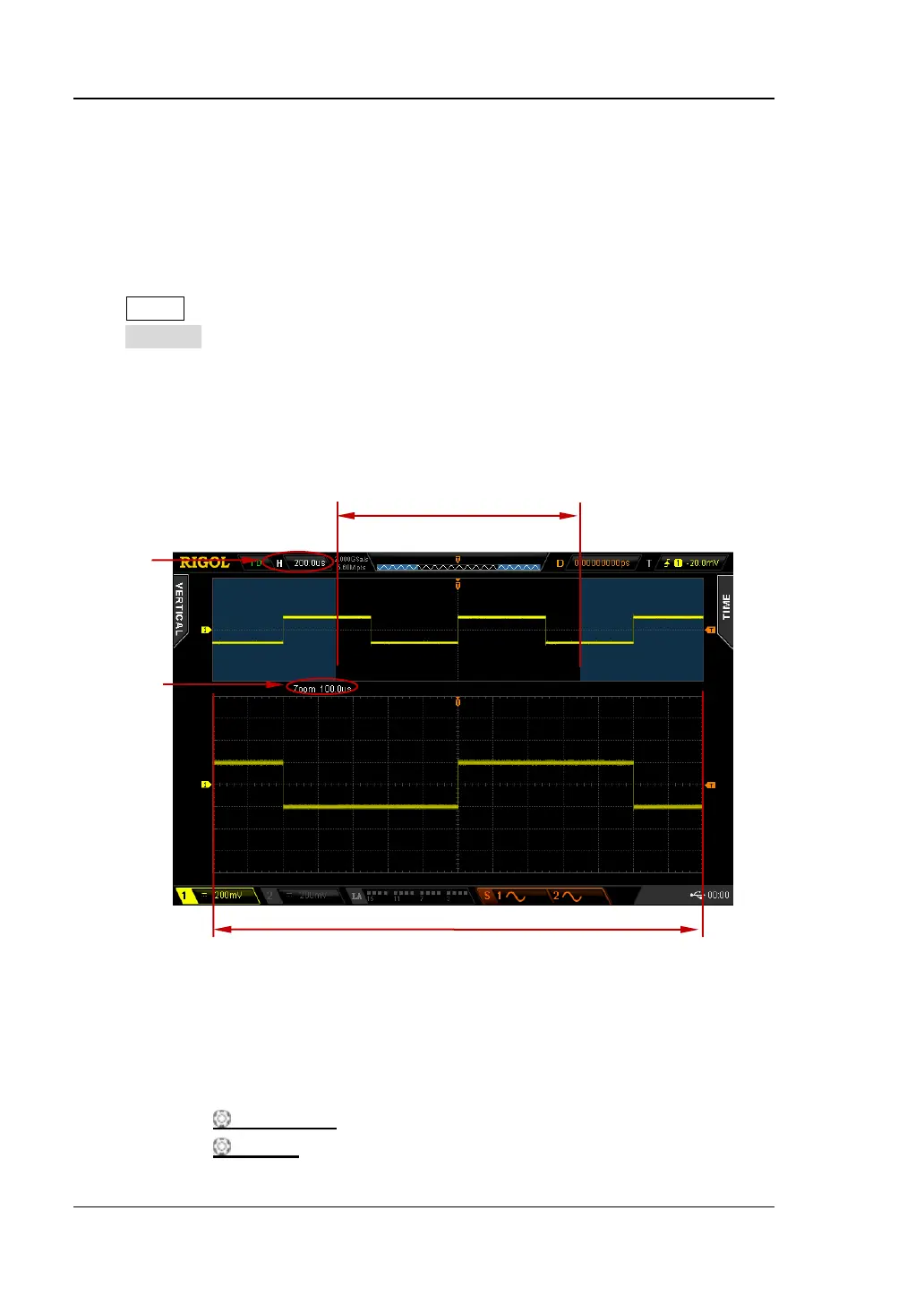

Figure 3-1 Delayed Sweep
The Waveform before Enlargement:
The waveform in the area that has not been covered by the subtransparent blue in
the upper part of the screen is the waveform before enlargement. You can turn
HORIZONTAL
POSITION to move the area left and right or turn
HORIZONTAL
SCALE to enlarge or reduce this area.
The Waveform before
Enlargement
The Waveform after Enlargement
Main
Time Base
Delayed
Sweep
Time Base
