RIGOL Chapter 13 Signal Source

13-8 MSO2000A/DS2000A User’s Guide

To Output Built-in Waveform

MSO2000A/DS2000A series oscilloscope provides 7 kinds of built-in waveforms,

including Sinc, ExpRise, ExpFall, ECG, Gauss, Lorentz and Haversine.

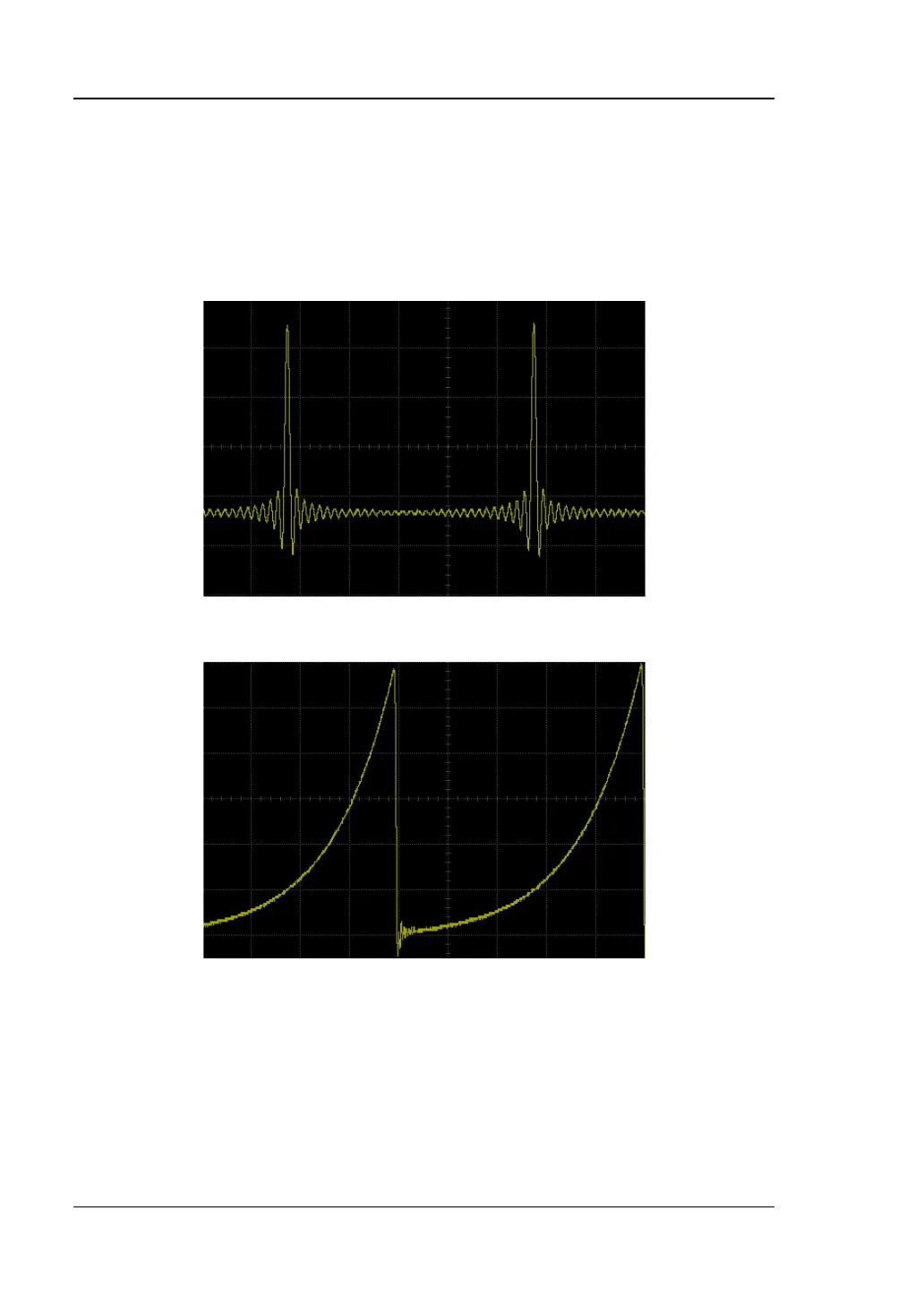

Figure 13-2 Sinc Function Waveform

Figure 13-3 ExpRise Function Waveform
