External Storage and Recall
Before using external storage and recall, make sure that the USB storage device is
connected correctly. External storage supports all the types of files in Storage but in
recall, “Picture” and “CSV” are not supported.
1. Save the specified type of file in the external USB storage device (take
CSV as an example).
1) Connect the signal to the oscilloscope and obtain stable display.
2) Press Storage  Storage to select “CSV” and press Save to turn on the
disk management interface. Use to select “Disk D” and press down
to open the USB storage device, as shown in Figure 14-4.
3) Use
to select the desired storage position. The file can be stored under
the root directory or in a certain folder under the root directory of the USB
storage device.

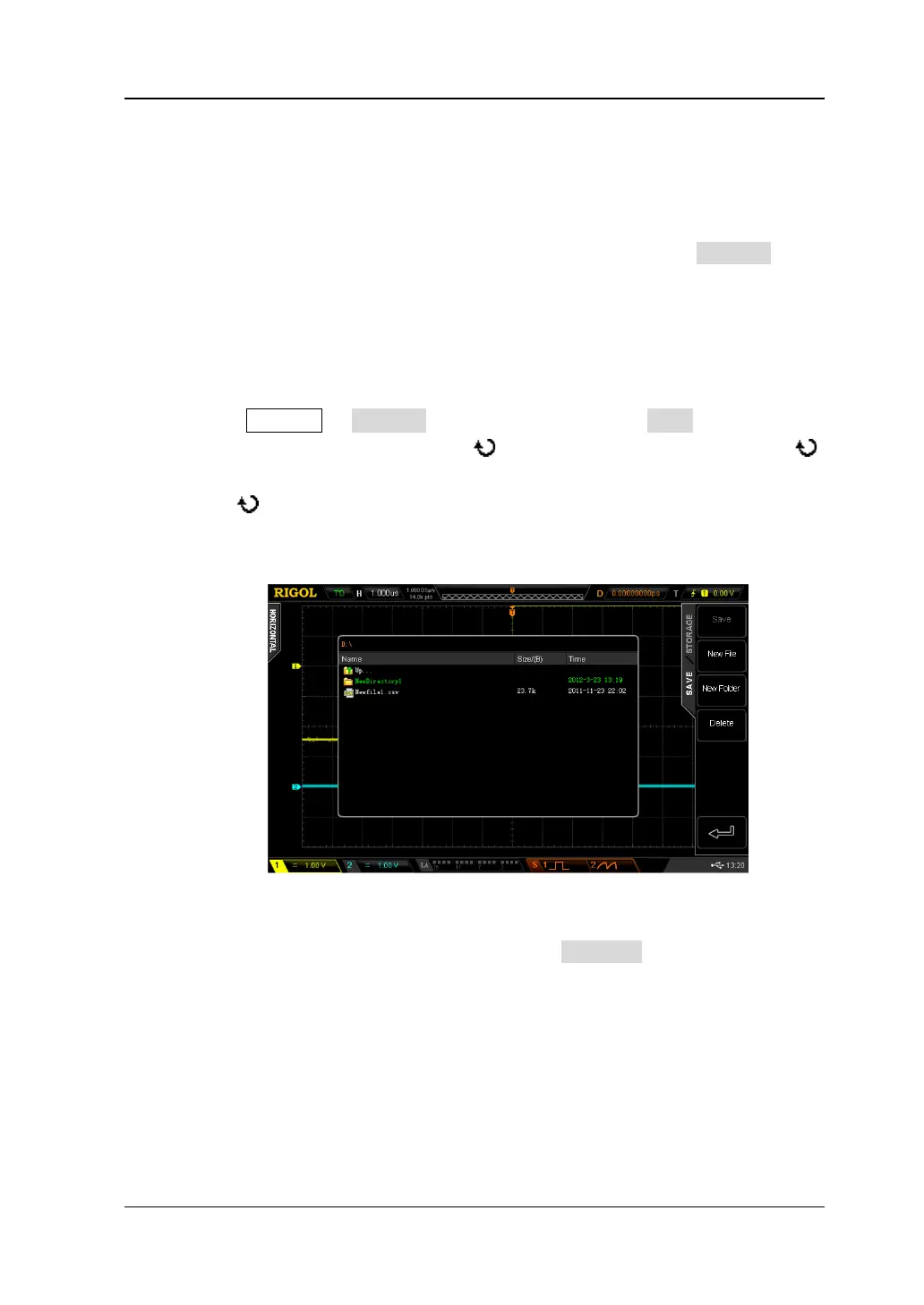

Figure 14-4 External Disk (To Select the Storage Position)
4) After the storage position is selected, press New File to turn on the
interface as shown in
Figure 14-5. Refer to the descriptions in “To Create a
New File or Folder” to create a new file.
