Rigol MSO2000A Series User Manual

RIGOL Chapter 14 Store and Recall
14-8 MSO2000A/DS2000A User’s Guide

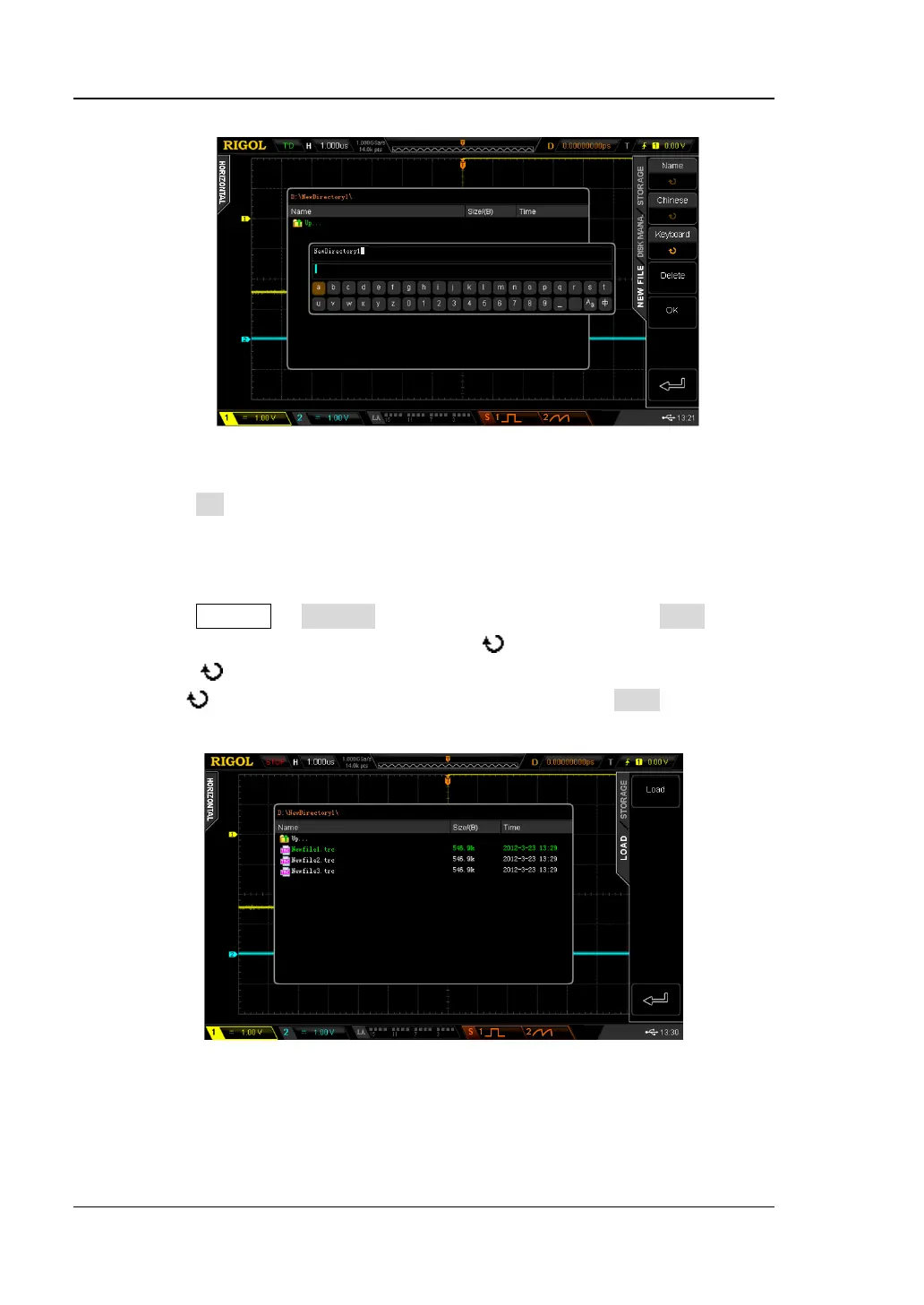

Figure 14-5 External Disk (To Create a New File)
5) Press OK to execute the saving operation.
2. Load the specified type of file in the external USB storage device (take
trace storage as an example).
1) Press Storage  Storage to select “Traces” and then press Load to turn
on the disk management interface. Use to select “Disk D” and press
down
to open the USB storage device, as shown in Figure 14-6.
2) Use to select the desired file to load and then press Load to load the
selected file.
Figure 14-6 External Disk (To Select the File to Load)
