Rigol MSO2000A Series User Manual

RIGOL Chapter 11 Waveform Record
11-8 MSO2000A/DS2000A User’s Guide
Waveform Analysis
This function is used to analyze the recorded waveform. Press Utility Record 
Mode and use to select “Analyze” to open the waveform analysis menu. At this
point, the screen is divided into two display areas as shown in the figure below.

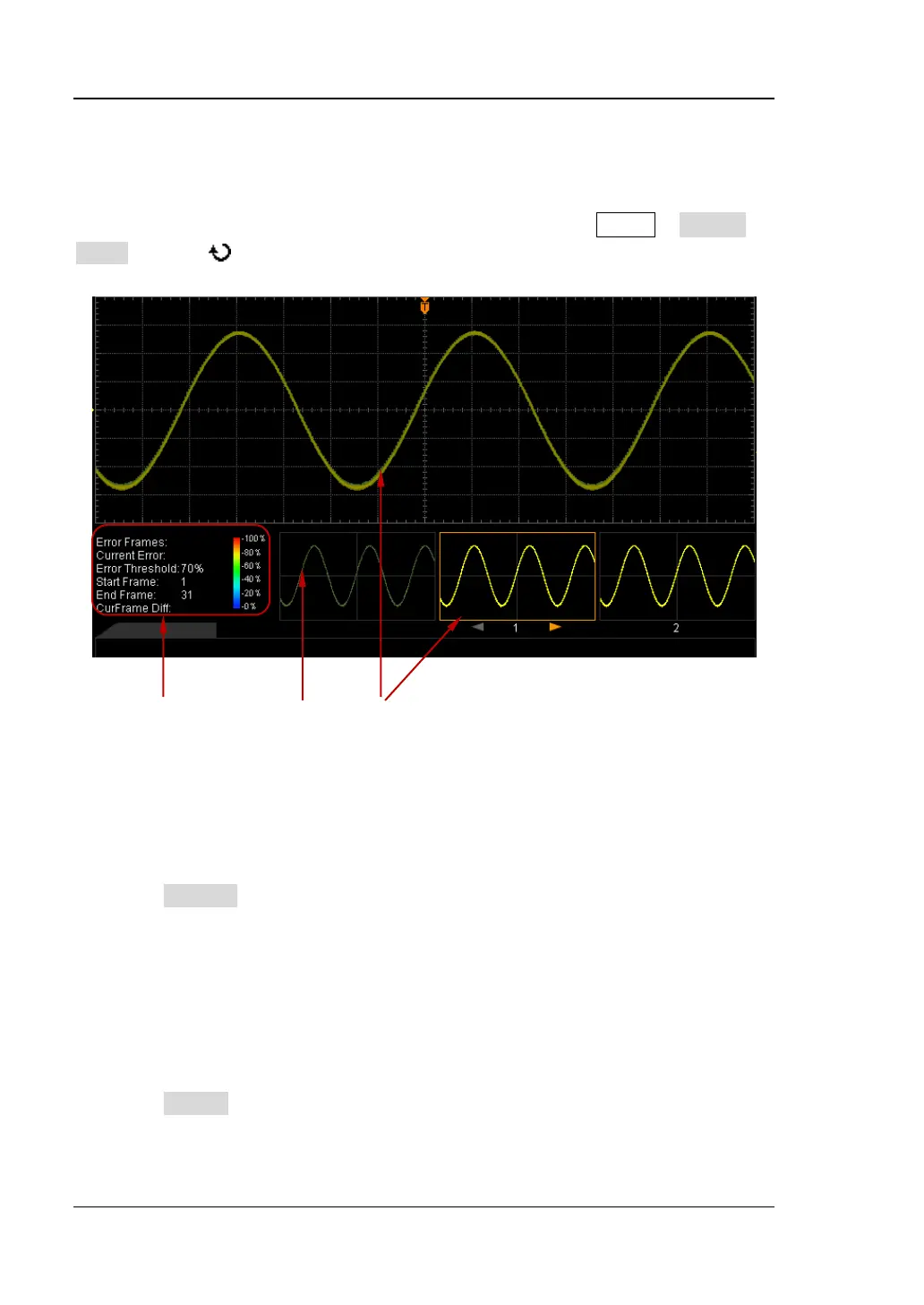

Figure 11-3 Waveform Analysis
Please refer to the following explanations to set the waveform analysis parameters.
1. Analyze
Press Analyze to select the desired analysis mode.
 Trace: perform analysis on the basis of the templet selected by users. For
the detailed information, refer to “Analysis Based on Trace”.
 Pass/Fail: perform analysis on the basis of the Pass/Fail mask created by
users. For the detailed information, refer to “Analysis Based on
Pass/Fail Mask”.
2. Source
Press Source to select the channel (CH1 or CH2) to be analyzed.
Note: Only channels currently enabled can be selected.
