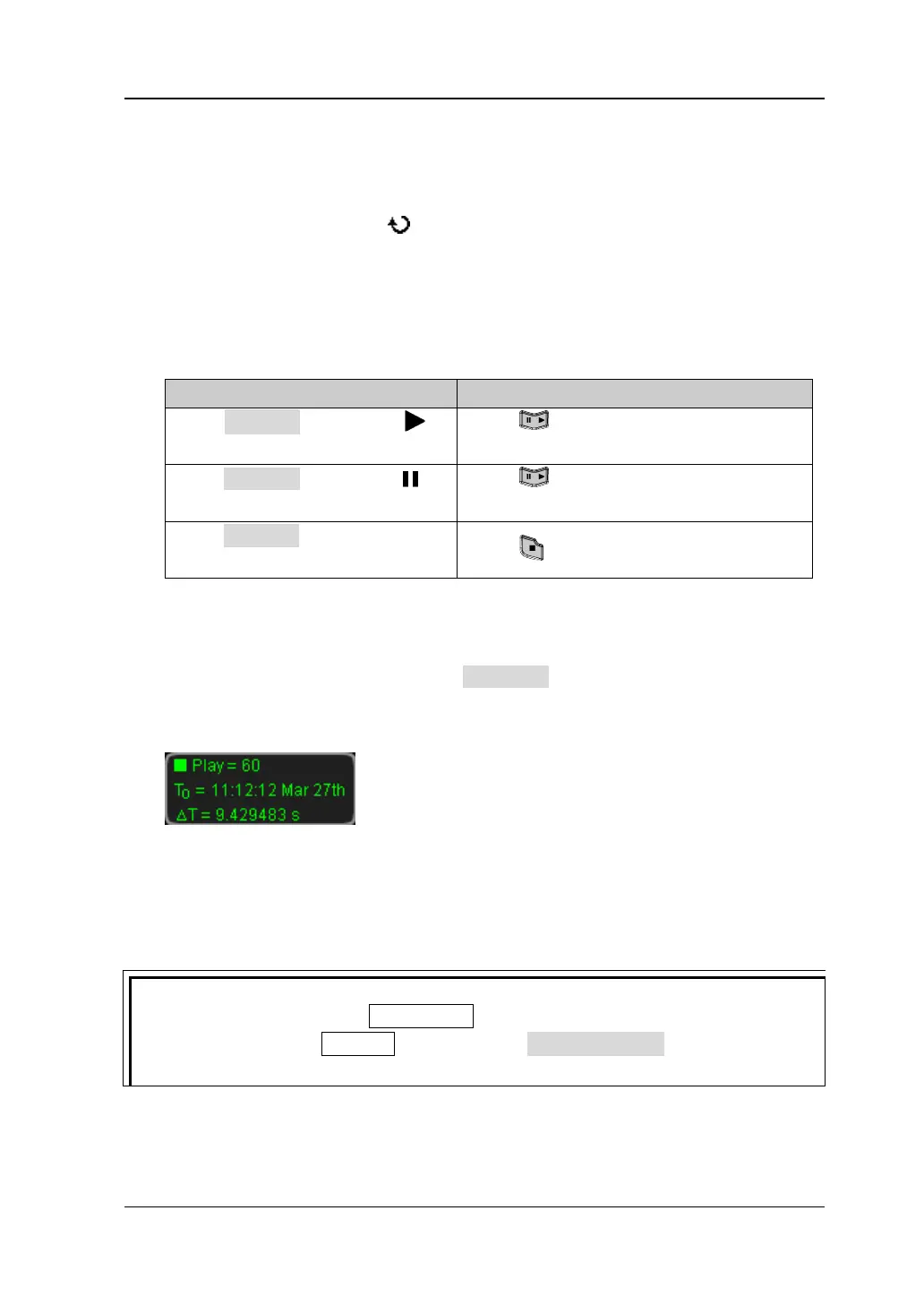

Chapter 11 Waveform Record RIGOL
MSO2000A/DS2000A User’s Guide 11-7
during the playback process.
5. End Frame
Press this softkey and use
to set the end frame of the playback. The default
is the total number of frames of the waveform recorded.
6. Playback Operation
Waveform playback can be realized through the menu or the shortcut buttons at
the front panel.
Menu Front Panel
Press Operate and select “ ”
to start playing back.
Press
; the backlight flashes,
indicating that the playback is started.
Press Operate and select “ ” to
pause the playback.
Press again (the backlight goes on
(yellow)) to pause the playback.
Press Operate and select “■ ” t o
stop the playback.
Press to stop the playback.
7. Time Tag
The time tag is used to display the absolute recording time of each frame of the
waveform currently recorded. Press Time Tag to enable or disable the time tag
function. When it is enabled, the time tag information is displayed at the upper
right corner of the screen as shown in the figure below.
T
0
:
display the absolute starting time of the waveform record.
△T: display the recording time deviation of the current waveform relative to the
first frame of waveform. This value changes accordingly during the waveform
playback process.
Tip
During waveform playback, RUN/STOP can be used to switch between playback
and pause. Each time SINGLE is pressed, the Current Frame moves one frame
forward.
