Chapter 11 Waveform Record RIGOL

MSO2000A/DS2000A User’s Guide 11-5

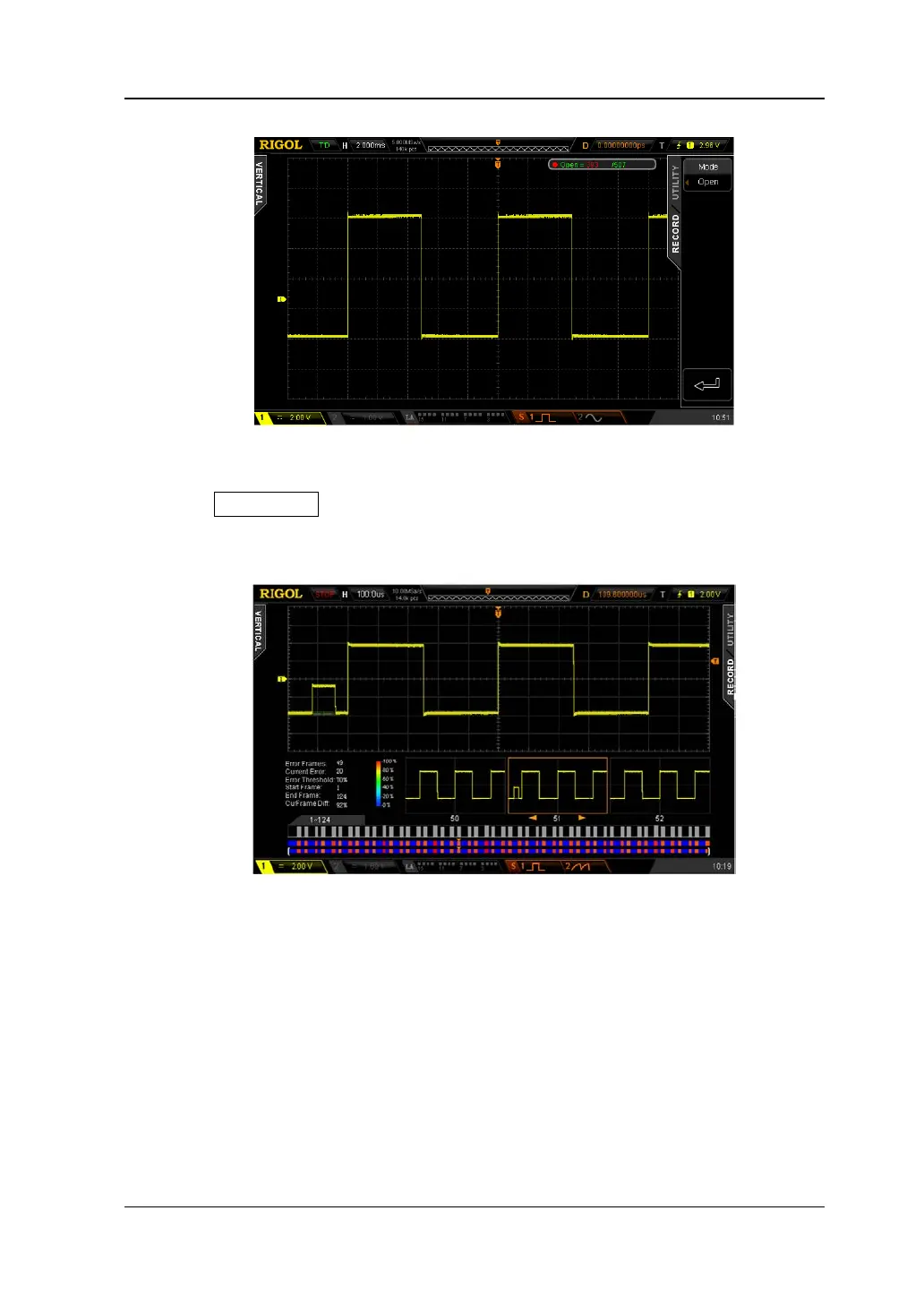

Figure 11-1 Record Constant On

3. Press RUN/STOP to stop the record.

4. Analyze the waveform recorded using waveform analysis and as shown in the

figure below, the runt pulses are captured.

Figure 11-2 Analyze the waveform recorded
