RIGOL Chapter 13 Signal Source
13-10 MSO2000A/DS2000A User’s Guide

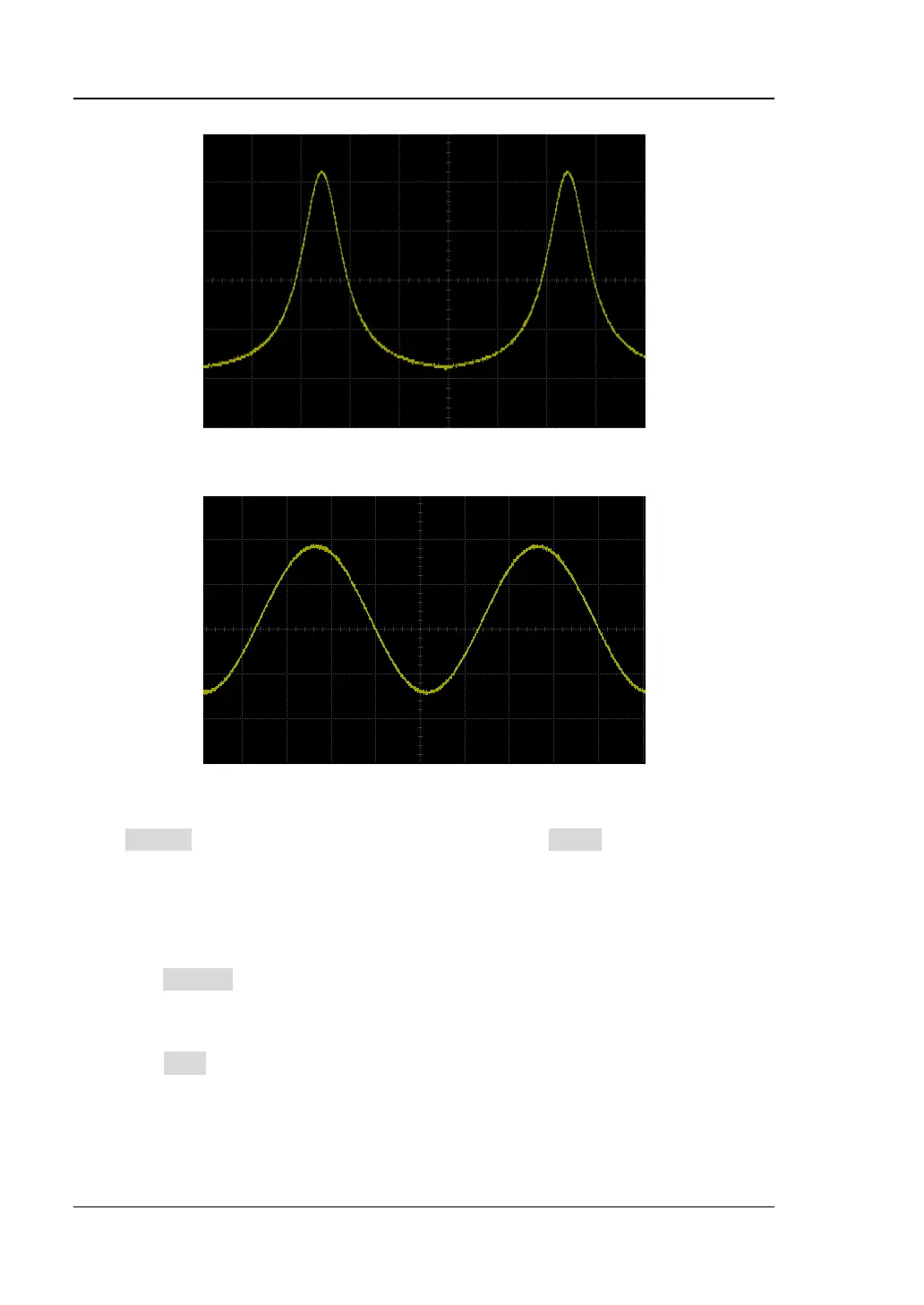

Figure 13-7 Lorentz Function Waveform
Figure 13-8 Haversine Function Waveform
Press Setup1 to open the waveform setting menu. Press Wave and select “Built-in”.
At this point, you can set the output signal parameters according to the type of the
built-in waveform selected.
1. Select built-in waveform
Press Built-in to select any of the 7 built-in waveforms.
2. Set the frequency
Press Freq to set the frequency of the signal. The range is from 100 mHz to 1
MHz. For the setting method, please refer to the introduction in “
Parameter
Setting Method”.
