Chapter 13 Signal Source RIGOL
MSO2000A/DS2000A User’s Guide 13-15
introduction in “Parameter Setting Method”.

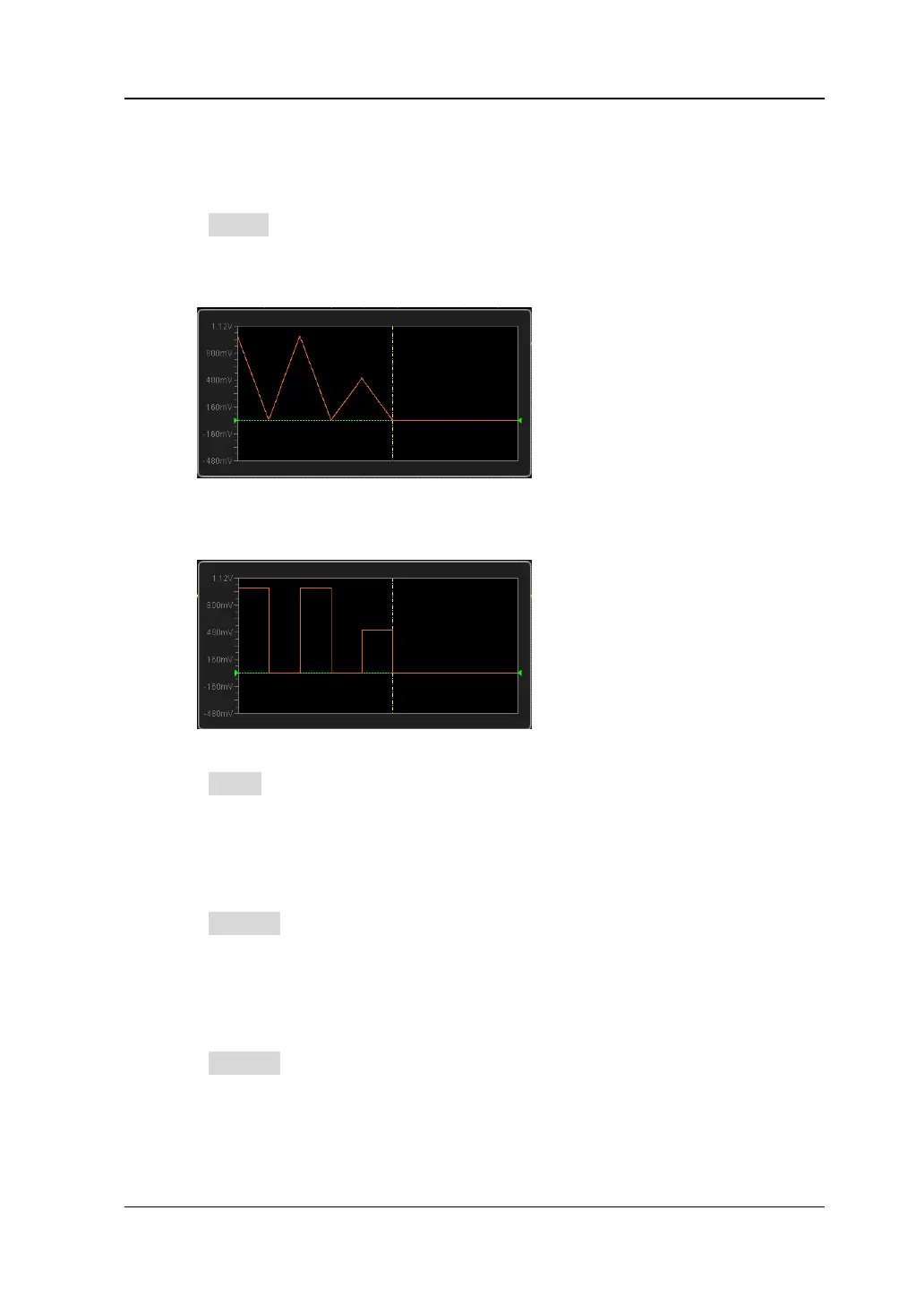

2. Interpolation
Press Interp to turn on or off the interpolation mode between the points of the
waveform.
 ON: the waveform editor connects two points using a straight line.
 OFF: the waveform editor will keep a constant voltage level between the
two points and create a ladder-like waveform.
3. Zoom
Press Zoom to turn on or off the zoom function.
 ON: the waveform editing window only displays the current point.
 OFF: the waveform editing window displays all the initial points.
4. Current Point
Press Current to select the point to be edited. The range is from 1 to the initial
points. For the setting method, please refer to the introduction in “
Parameter
Setting Method”.
5. Voltage
Press Voltage to set the voltage of the current point. The range is from -2.5 V to
+2.5 V. For the setting method, please refer to the introduction in “
Parameter
Setting Method”.
