Installation site requirements
14 © robatherm
HE-RAC hydraulics on stand
The HE-RAC hydraulics on stand has the following footprint requirements:

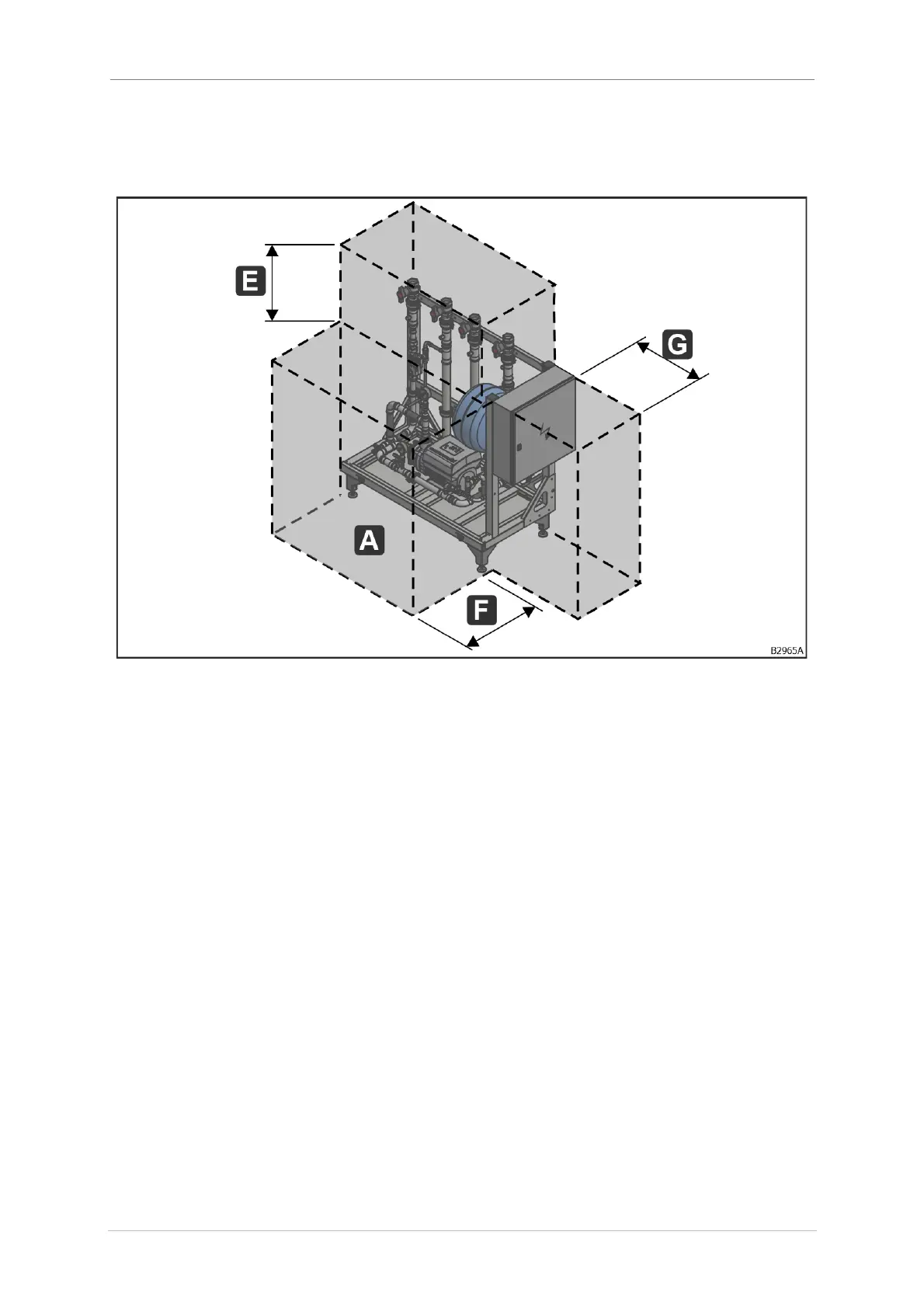

Fig. 3: Footprint requirements of HE-RAC hydraulics on stand
A - revision area; E ≥ 350 mm; F ≥ 500 mm; G - ≥ 650 mm
• Leave ≥ 350 mm (E) above the rack for the connections.
• Leave ≥ 500 mm (F) free as a revision area (A) on the operating side and ≥ 650 mm (G) in
front of the control cabinet.
