Unit assembly
© robatherm 21
Unit assembly
Check the arrangement of the sections and components and the execution according to the technical
drawing before starting the unit assembly.

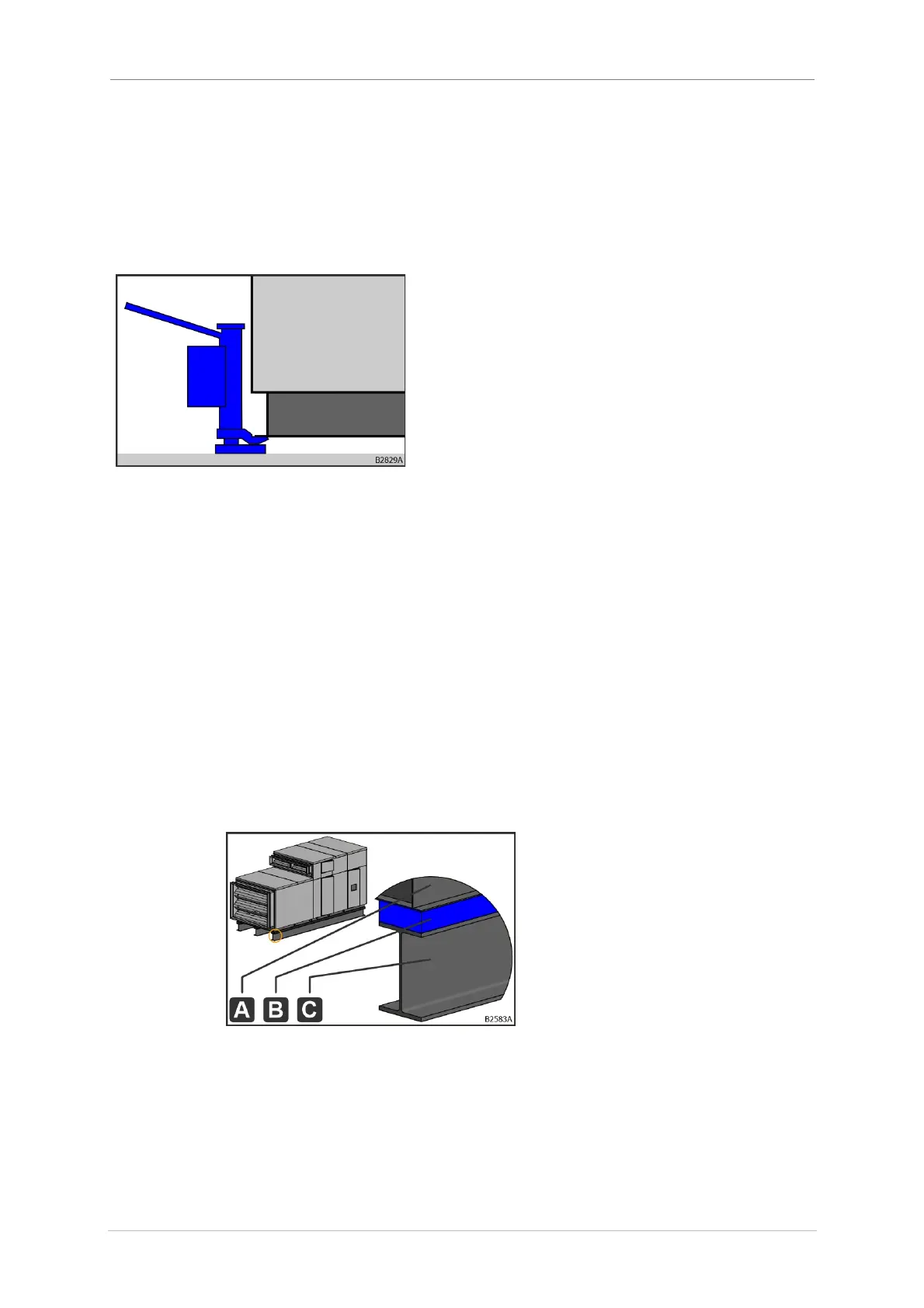

Lifting jack
Always place the lifting jack on the lower edge
of the base frame. Do not place the lifting jack
on the edge of the panels, as this will cause
deformation and damage to the panels. Make
sure that the force is evenly distributed on the
base frame.
Fig. 20: Lifting jack
Sound reduction
To comply with the permissible sound emission values, sound-reducing components (e.g., duct
silencers, noise barriers) must be provided on the intake and discharge sides or the casing if they are
not integrated or not sufficiently integrated into the AHU.
Vibration damping
Use vibration dampers for vibration damping (e.g., Mafund, Sylomer, or Ilmod Kompri tape) in the
length and width direction. Use the appropriate type depending on the load. The dimensioning of the
vibration dampers is done by the customer. Use vibration dampers on all types of support points.
Installation on longitudinal supports
A base frame
B Vibration damper
C On-site longitudinal support
Fig. 21: Longitudinal support
