Unit assembly
© robatherm 29
Transport lugs/transport loops
After assembly, remove the transport lugs and close the openings with plugs.
Remove transport loops after assembly.
Unit connection
The ducts must be connected free of voltage. Ducts, including unit connections, must be properly
insulated and protected against weather effects.
Flexible connection
A Frame
B flexible connection
C On-site duct
L component length

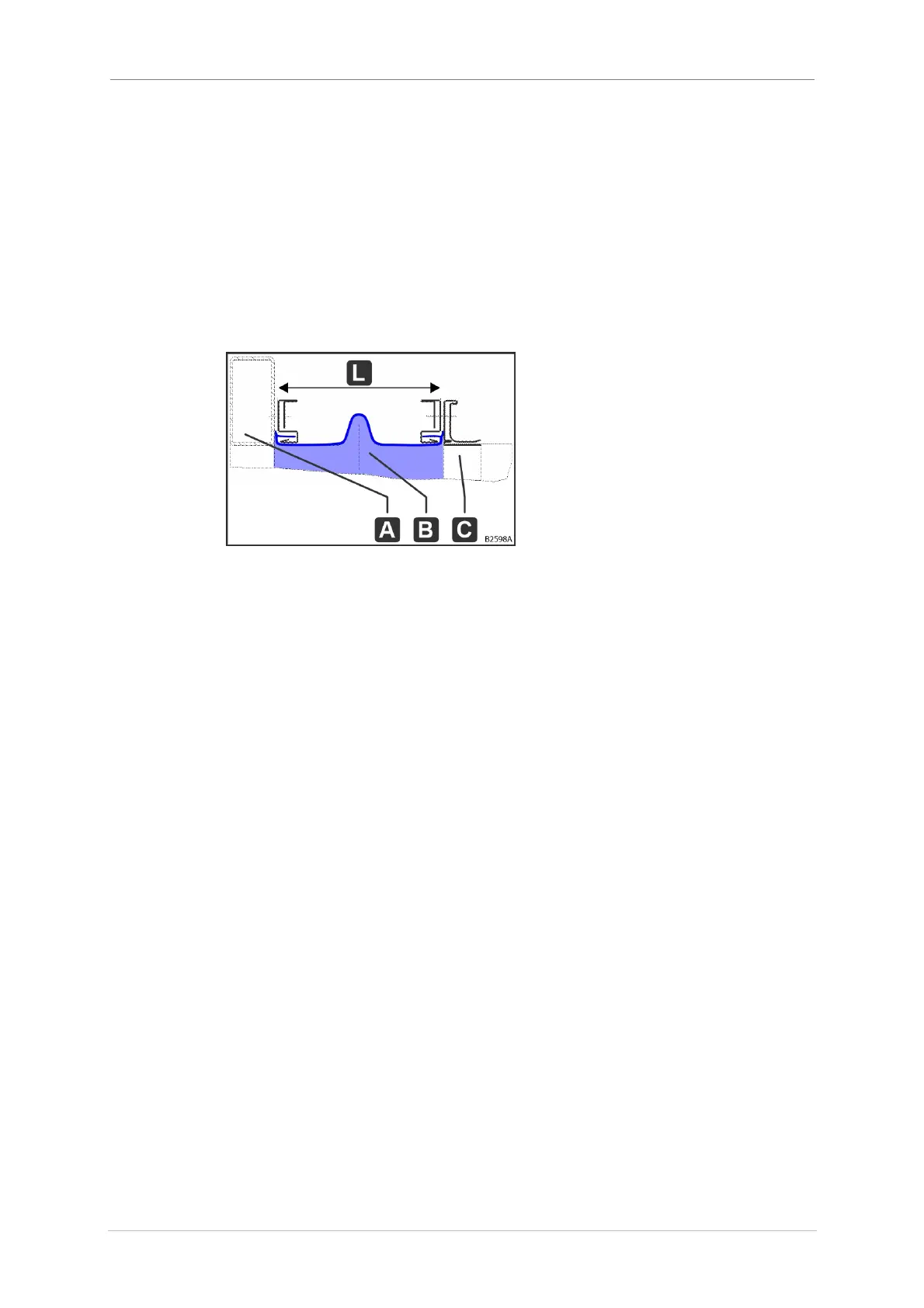

Fig. 36: Flexible connection
The component length (L) of the flexible nozzle must in no case be the stretched length. The optimum
component length (L) is 100 - 120 mm.
