Heat recovery systems (HRS)
© robatherm 65
Run around coil
Connecting run around coils

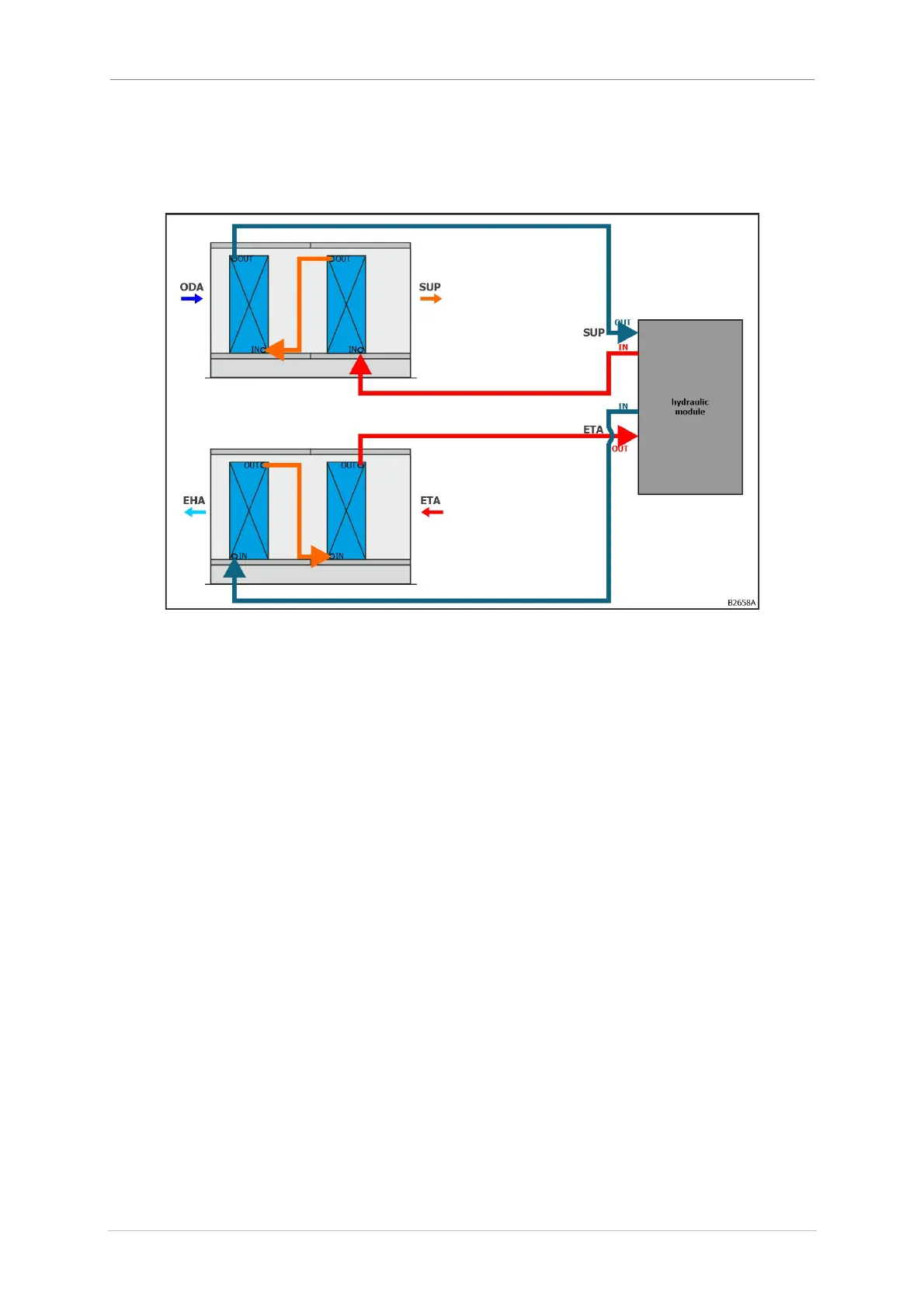

Fig. 122: The coils are to be connected according to the counterflow principle.
Information on connecting coils see chapter "Coil connection", page 67. Information on the hydraulic
set see chapter "Hydraulic set", page 80.
