Unit assembly
32 © robatherm
Door
After completion of the unit assembly, all doors must be checked for freedom of movement and
aligned if necessary. Tightening torques for screws: 3 Nm.
• Align door leaf vertically using the
slotted holes in the hinge bracket.
• Align door leaf horizontally using
the slotted holes in the hinge
bracket.

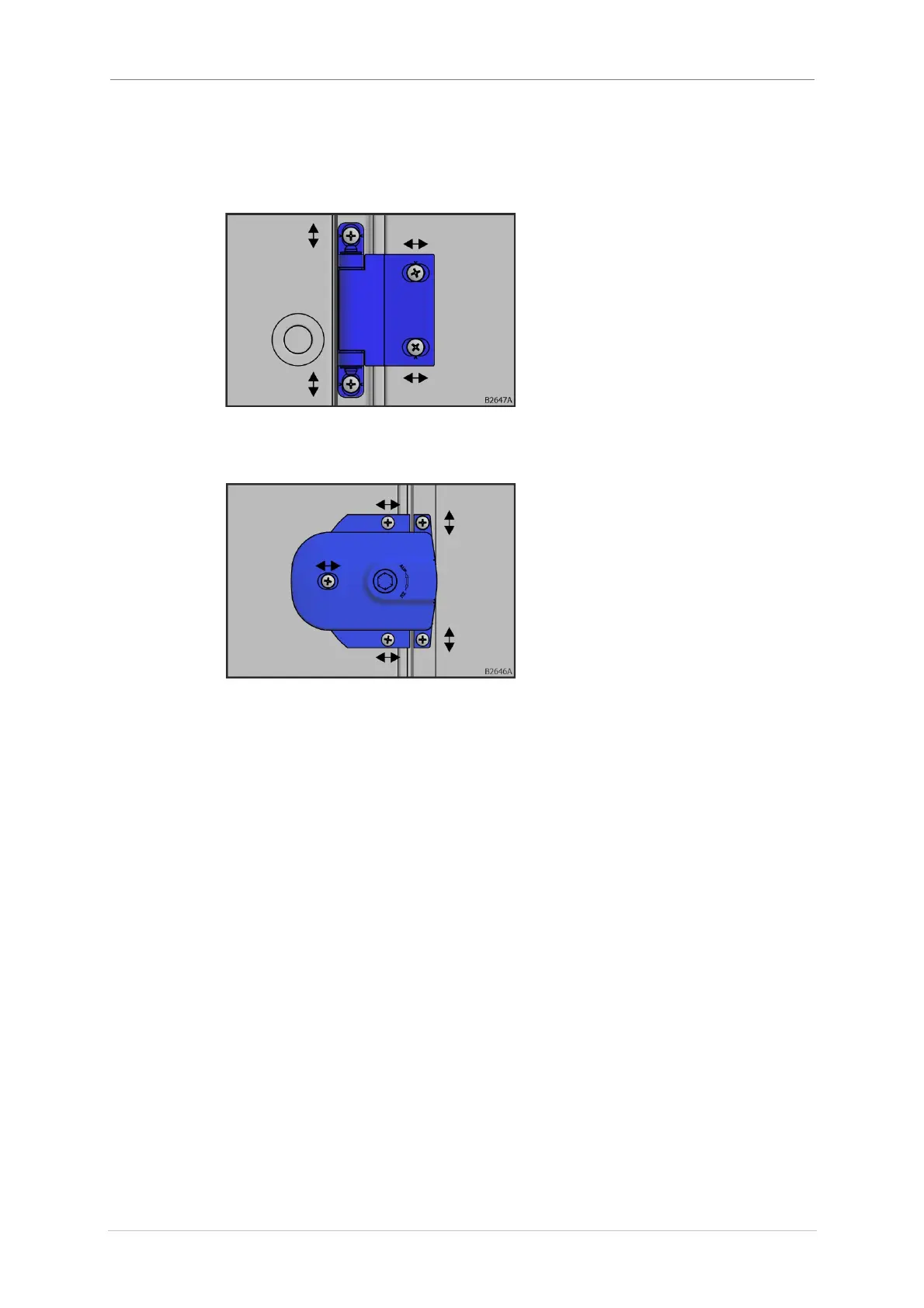

Fig. 42: Hinge of the door
After aligning the door leaf on the hinge
side, align the external latch:
• Align the locking cam bracket
vertically.
• Align the lock casing horizontally.
Fig. 43: External lock with key size 10 /
double-bit 3
