Dampers
© robatherm 69
Dampers
Damper
WARNING
Risk of death due to moving parts
Risk of death when closing fins, moving coupling bars or gears due to crushing
between two moving parts.
• Attach separating protective devices (e.g., downstream grid, duct) to the
damper.
• Before opening the door, switch off the AHU and secure it against restarting.
• Do not reach between the fins.
Check screw fittings and connections for tight fit.
Coupled dampers
In case of coupled dampers, check connecting bars for force-locking connection and for correct
function, i.e. direction of rotation and end position of the dampers.
Pressure relief damper
Settings
The release or contact pressure of the pressure
relief damper against the unit or duct wall can
be adjusted by adjusting the height, number,
and distance of the weights (see chapter
"Characteristic tripping or contact pressure",
page 70).
The presetting is made by means of the
specified a dimension.

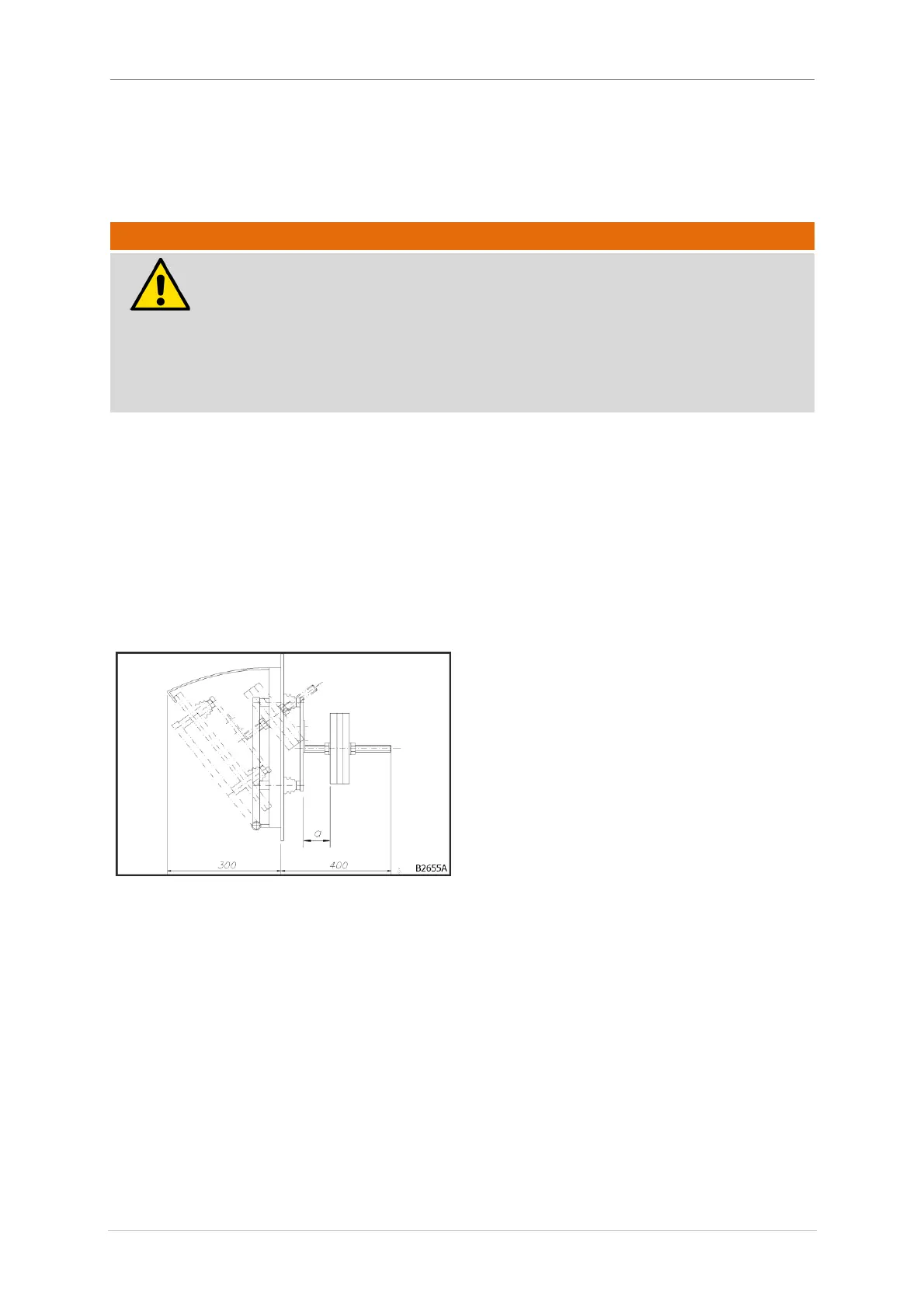

Fig. 124: Pressure relief damper
