Unit assembly
© robatherm 27
For weatherproof units with roof rack frames see chapter "Connection of weatherproof devices with
roof rack frame", page 49.
1. Set up the lower AHU (A) and
fasten it to the foundation (see
chapter "Fastening to on-site
beams", page 25).

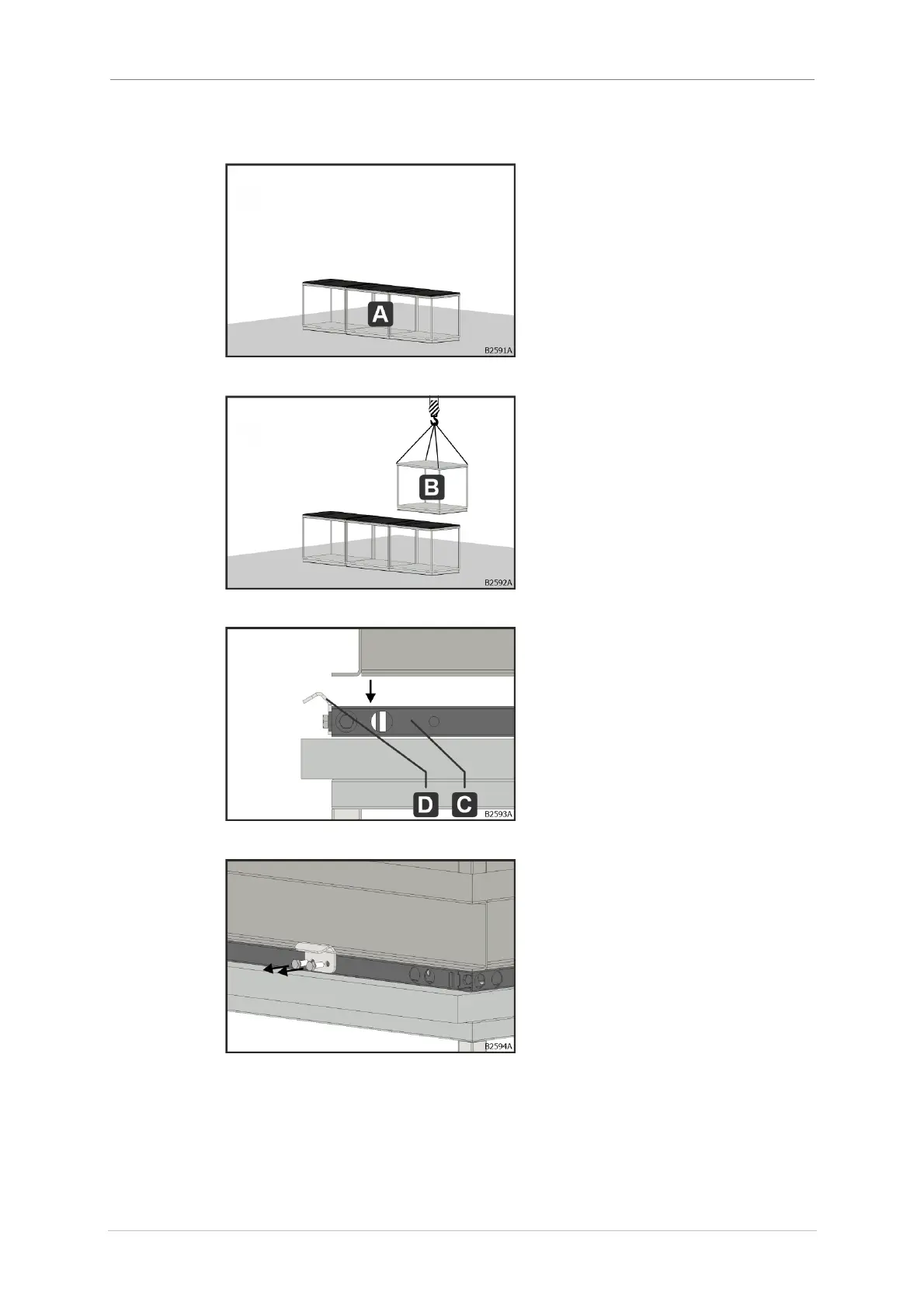

Fig. 29: Lower AHU set up
2. Place the upper AHU (B) on the
roof rack frame of the lower AHU
(A).
Fig. 30: Crane upper section individually
3. Roof rack brackets (D) on the roof
rack frame (C) serve to guide and
center the base frame of the
upper AHU (B).
Fig. 31: Setting down the upper section
4. Remove hexagonal screws from
roof rack brackets (D).
Fig. 32: Disassembling roof rack
brackets
