The new LED light source includes PCB with LEDs, connecting cables with connectors and the heat sink.
Handle with care. Do not touch LEDs with bare hands.
6. To install the new LED source module, proceed in a reverse order than at its dismantling, i.e. screw the LED
source module (6) to the head, screw the rear cover (4) to the head and connect the connectors from the LED
source module to the LED control PCB (1).

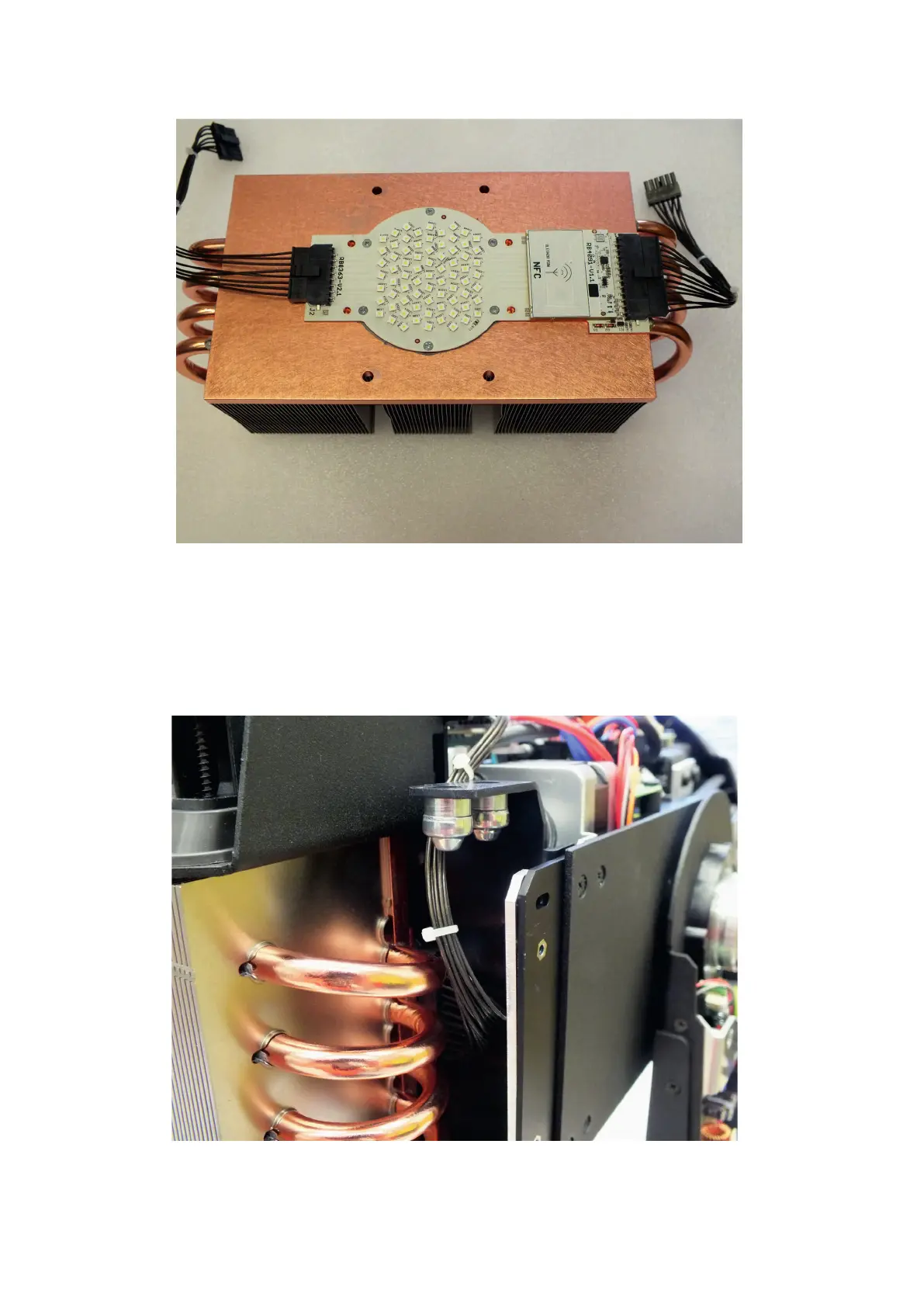

Placing of the LED source module cable:
