58

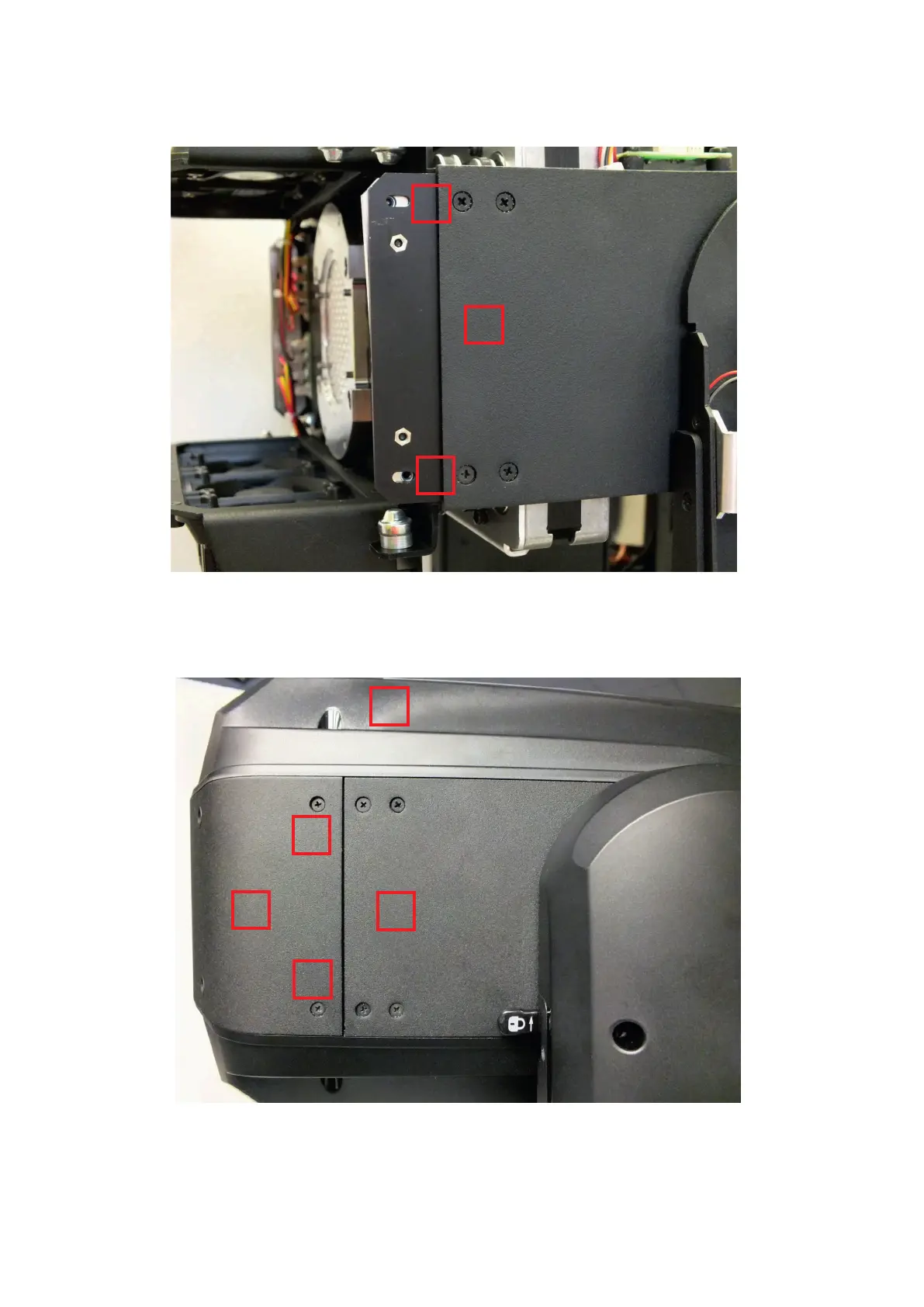

Note for mounting of the rear cover (4).
After placing the rear cover (4) on the head, do not fully tighten the screws (3) in the holes with M3 thread (7)
We recommend you to install one or both plastic covers (8) on the head, check that cover (s) properly ts to
the rear cover (4) and then fully tighten the rear cover screws (3).
There can be a space (about 1 mm) between the rear cover (4) and the side cover (9).
After nishing the LED source module installation and placing all covers back on the xture, connect the xture
to mains and run the procedure LEDs Measure from the tab Service.
7
7
9
3
3
8
4
9
