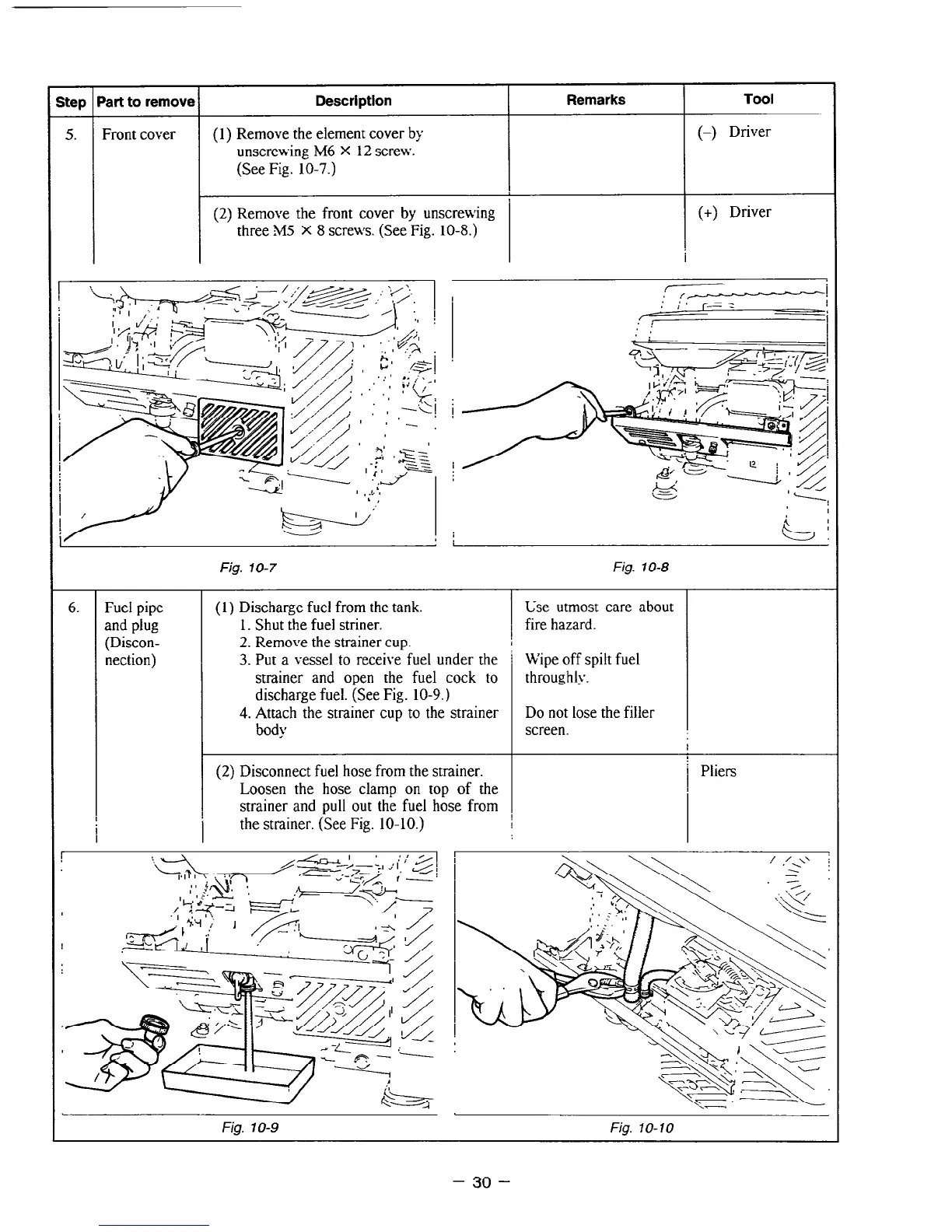

Step Part to remove
Descrlptlon
Remarks
Tool
5.
Front cover
(1) Remove the element cover by
(-) Driver
unscrew.-ing M6 X 12 scre\v.
(See Fig. 10-7.)
(2) Remove the front cover by unscrewing
three $15 X 8 screws. (See Fig. 10-S.)
(+) Driver
6. Fuel pipe
and plug
(Discon-
nection)
Fig. 10-7
Fig. 10-8
(1) Discharge fuel from the tank.
Use utmost care about
1. Shut the fuel striner.
2. Remove the strainer cup.
I fire hazard.
3. Put a vessel to receive fuel under the i Wipe off spilt fuel
strainer and open the fuel cock to
throughly.
discharge fuel. (See Fig. 10-9.)
4. Attach the strainer cup to the strainer
body
(2) Disconnect fuel hose from the strainer.
Loosen the hose clamp on top of the
strainer and pull out the fuel hose from
the strainer. (See Fig. 10-10.)
Do not lose the filler
screen.
/ Pliers
Fig. 10-9
Fig. lo-10
- 30 -
