Robin R1210 Brushless - Page 37

! I
‘art to remove
Descrlptlon
I
Remarks
Tool
I
Step
7.
Fuel tank
handle
(1) Remove the handle cover by unscrewing
the hvo I43 X 10 screws.
The fuel tank can be
removed without
disassembling the
handle.
(+) Driver
(2) Pull off the breather pipe.
(3) Remove the handle body by taking off
the hv0 M8 nuts.
Handle cover
\
13mm box wrench
Breather pipe
A Handle
M3x IO Screw (2 PCS.)
Full tank
M8xNut (2 pm.)

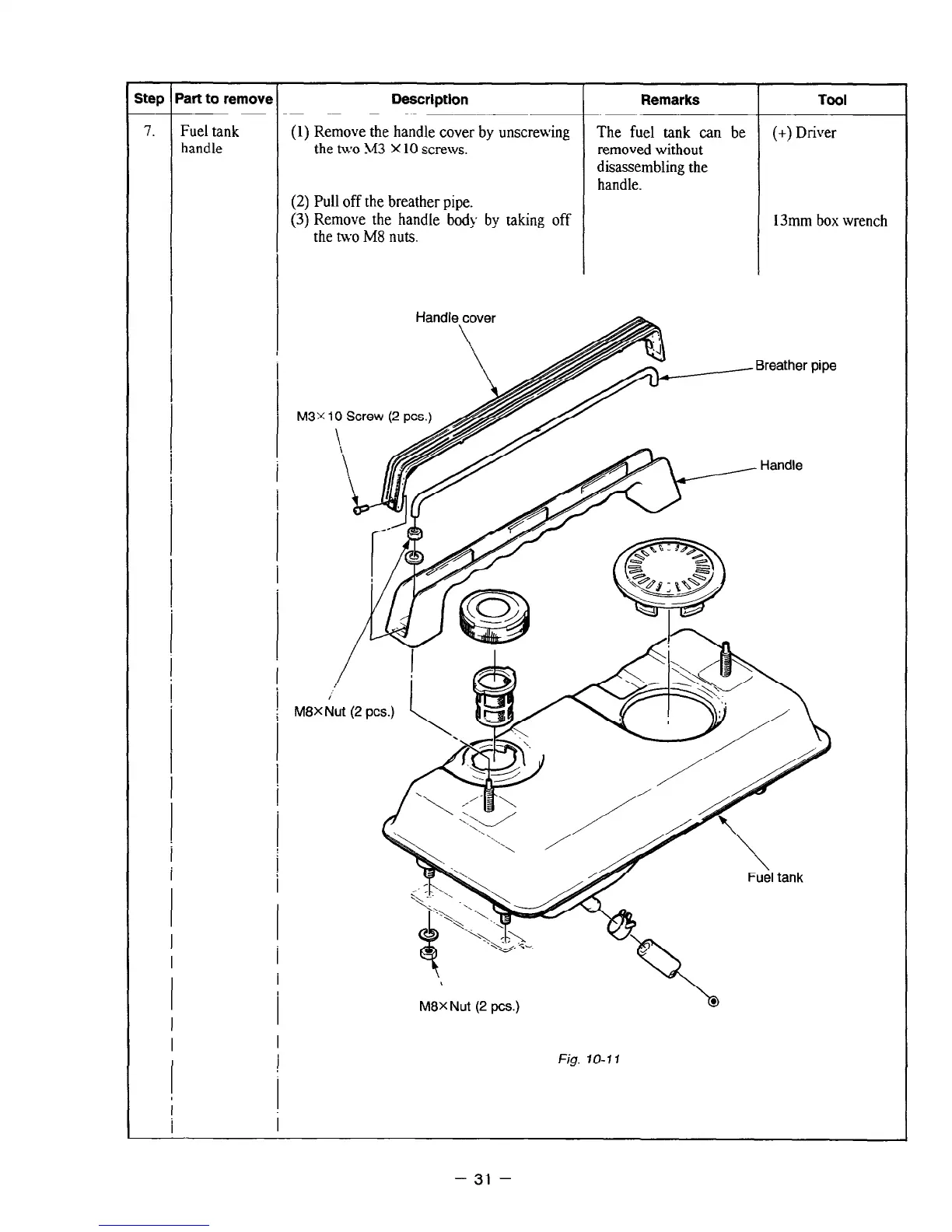

Fig. 10-11
