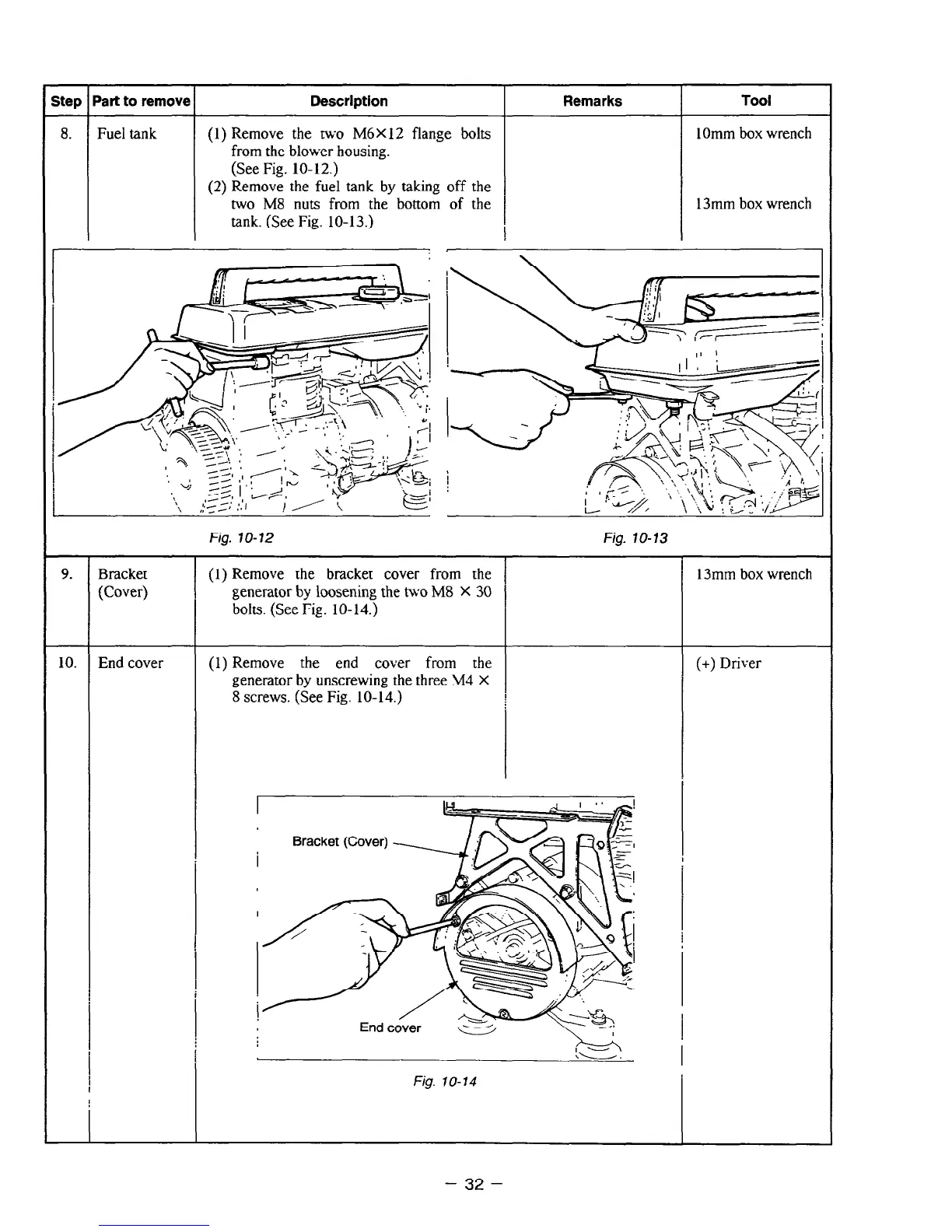

Robin R1210 Brushless User Manual

I Step I Part to remove
8. Fuel tank
Remarks Descrlptlon
(1) Remove the two M6X 12 flange bolts
from the blower housing.
(See Fig. 10-12.)
(2) Remove the fuel tank by taking off the
hv0 M8 nuts from the bottom of the
tank. (See Fig. 10-13.)
I ’
I I
Tool
1Omm box wrench
13mm box wrench
Bracket
(Cover)
End cover
Fig. 10-72
Fig. 70-13
(1) Remove the bracket cover from the
generator by loosening the two M8 X 30
bolts. (See Fig. 10-14.)
(1) Remove the end cover from the
generator by unscrewing the three %I X
8 screws. (See Fig. 10-14.)
Fig. lo-14
13mm box wrench
(+) Driver
