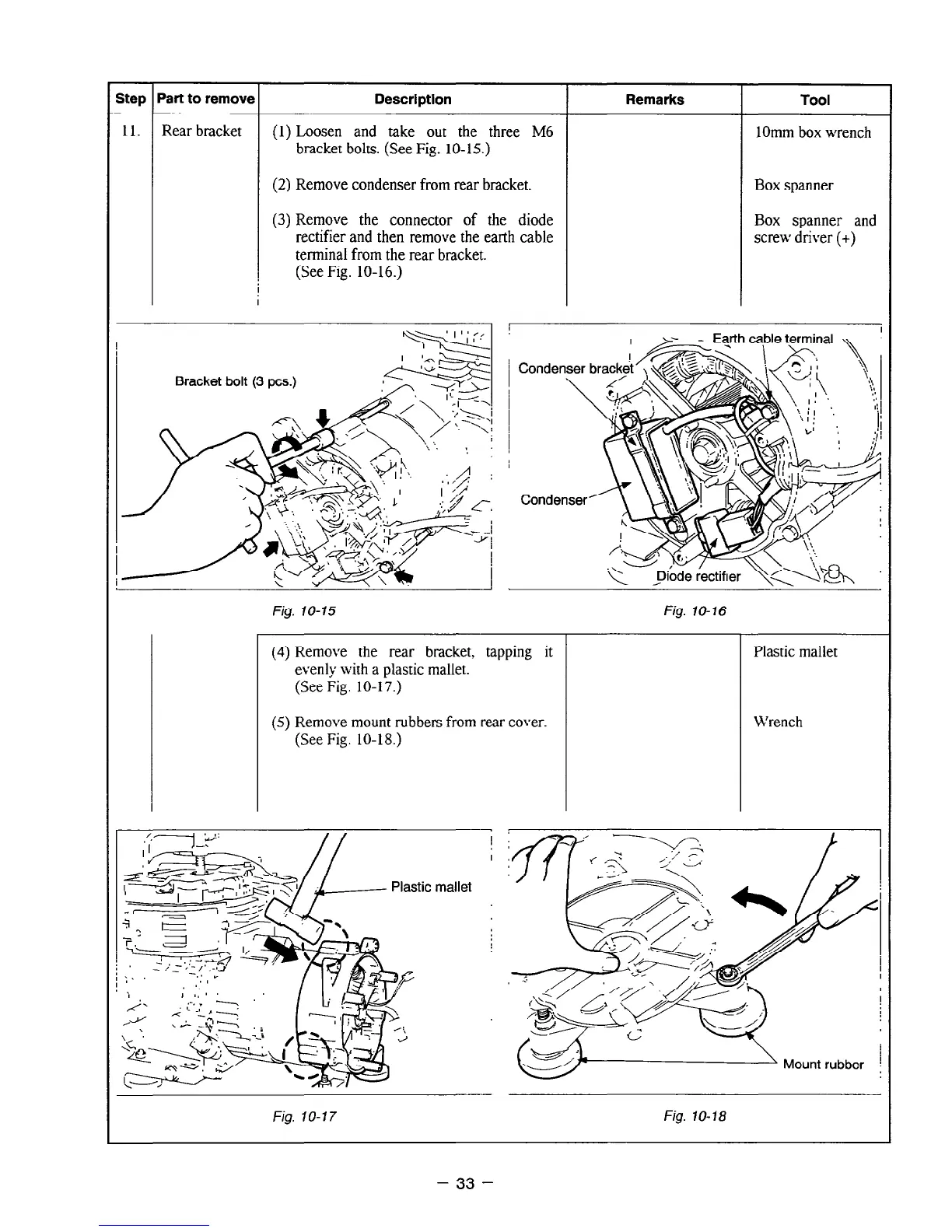

Step
11.
Dart to remove
Rear bracket
Description
(1) Loosen and take out the three M6
bracket bolts. (See Fig. 10-15.)
(2) Remove condenser from rear bracket.
(3) Remove the connector of the diode
rectifier and then remove the earth cable
terminal from the rear bracket.
(See Fig. 10-16.)
Remarks
Tool
1Omm box wrench
Box spanner
Box spanner ant
screw driver (+)
Bracket bolt (3 PCS.)
Fig. IO-15
(4) Remove the rear bracket, tapping it
evenly with a plastic mallet.
(See Fig. 10-U.)
(5) Remove mount rubbers from rear cover.
(See Fig. 10-18.)
Fig. 70-16
Plastic mallet
Wrench
mallet
Fig. IO-17
Fig. 10-18
- 33 -
