Robin R1210 Brushless User Manual

Step Part to remove
Descrlptlon
Remarks
Tool

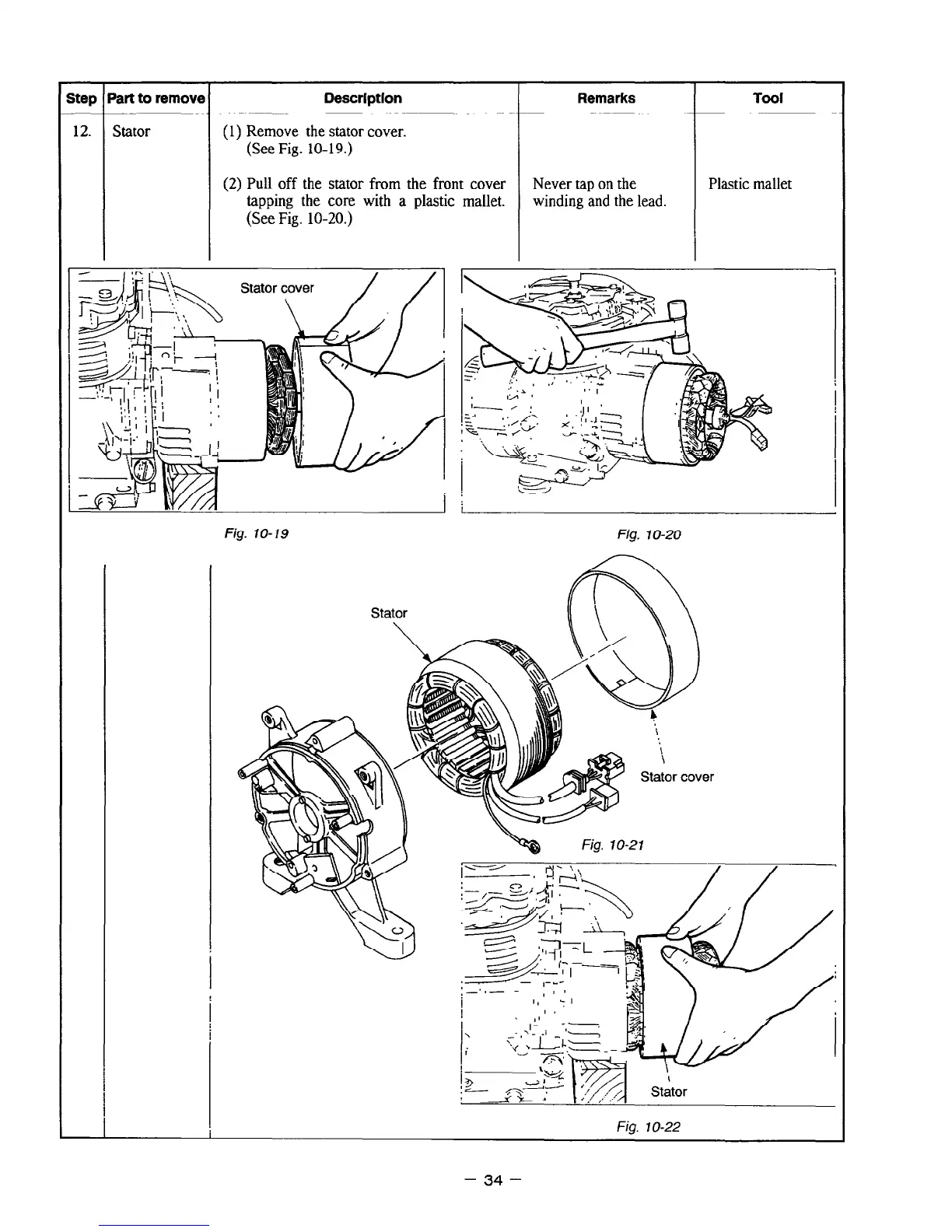

12. Stator
(1) Remove the stator cover.
(See Fig. 10-19.)
(2) Pull off the stator from the front cover
tapping the core with a plastic mallet.
(See Fig. 10-20.)
Never tap on the
winding and the lead.
Plastic mallet
Fig. 10-79
Fig. IO-20
Fig. 70-22
