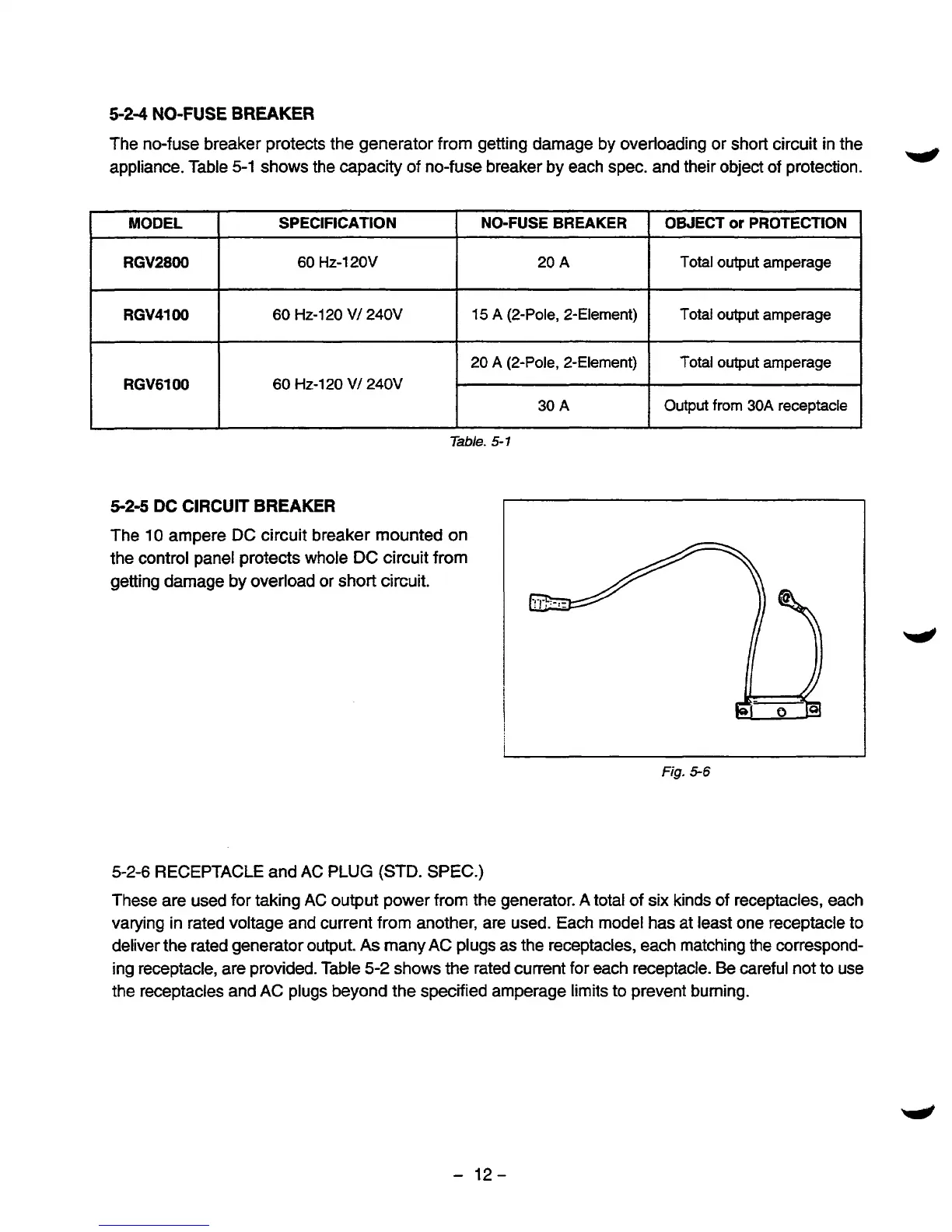

5-2-4
NO-FUSE
BREAKER
The no-fuse breaker protects the generator from getting damage by overloading or short circuit in the
appliance. Table
5-1
shows
the
capacity of no-fuse breaker by each spec. and their object
of
protection.
w
IpMO~~~"l
SPECIFICATION
RGV2800
60
Hz-120V
RGV4100
60
HZ-1
20
V/ 240V
RGV6100
60
HZ-120 V/ 240V
I
I
NO-FUSE BREAKER
OBJECT
or
PROTECTION
20
A
Total
output amperage
15
A
(2-Pole, 2-Element) Total
output
amperage
20
A
(PPole, 2-Element) Total output amperage
30
A
Output
from
30A receptacle
Table.
5-7
52-5
DC
CIRCUIT BREAKER
The
10
ampere
DC
circuit breaker mounted on
the control panel protects whole
DC
circuit from
getting damage
by
overload or short circuit.
I
j
j
Fig.
5-6
5-2-6
RECEPTACLE
and
AC
PLUG
(STD.
SPEC.)
These are used for taking
AC
output power from the generator.
A
total of six kinds of receptacles, each
varying in rated voltage and current from another, are used. Each model has at least one receptacle to
deliver the rated generator output.
As
many
AC
plugs as the receptacles, each matching the correspond-
ing receptacle, are provided. Table
5-2
shows the rated current for each receptacle.
Be
careful
not
to use
the receptacles and
AC
plugs beyond the specified amperage limits to prevent burning.
-
12
-
