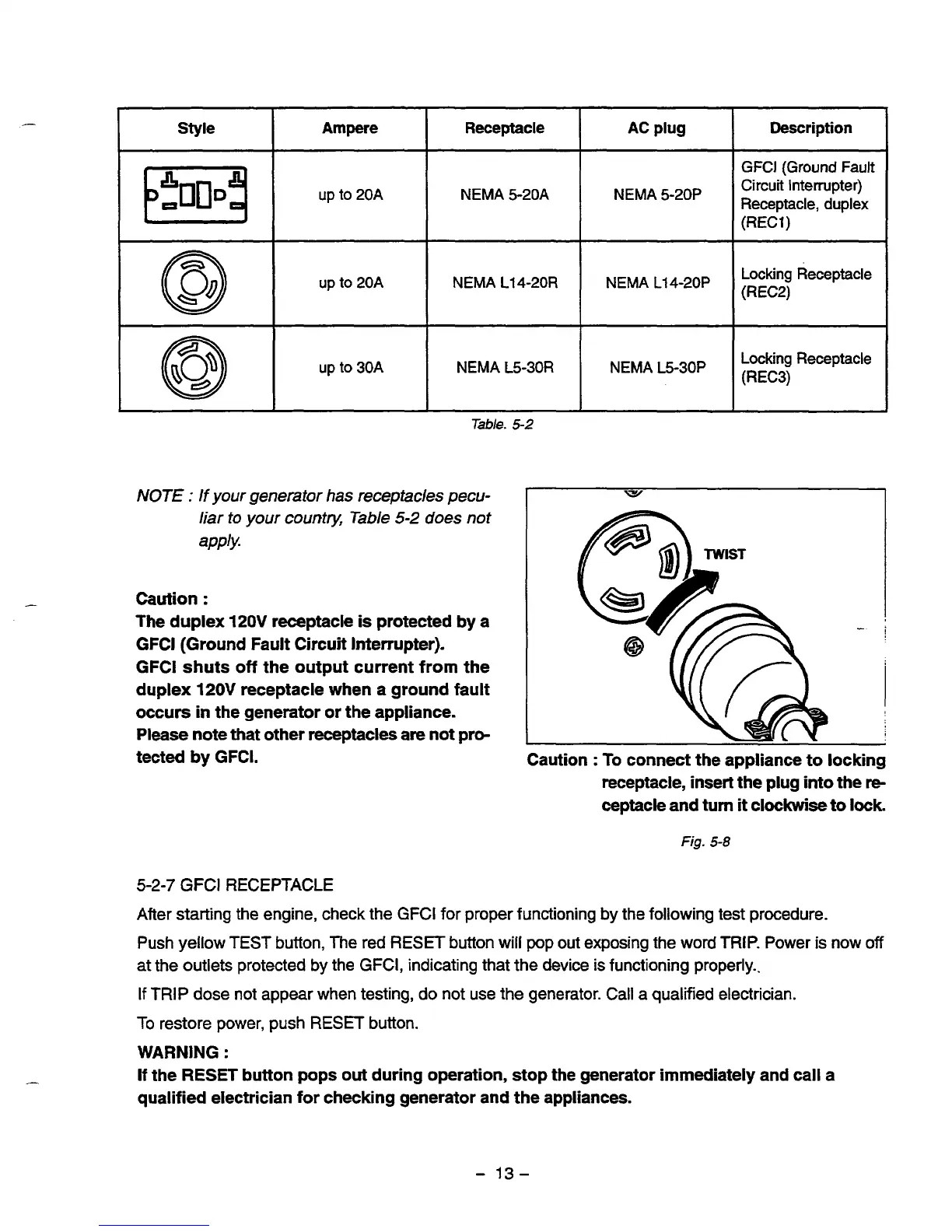

Robin RGV2800 Service Manual

Style Description
AC plug Receptacle Ampere
GFCl (Ground Fault
Circuit Interrupter)
(RECi)
b5q
NEMA L14-20P NEMA L14-20R
UPt020A
@
NEMA 5-20A up to 20A NEMA 5-20p
Receptacle, duplex
Locking Receptacle
up
to 30A
(REC3)
NEMA L5-30P NEMA L5-30R
Locking Receptacle
Table. 5-2
NOTE : If your generator has receptacles pecu-
liar
io your countv, Table 5-2 does not
apply.
Caution :
The duplex 120V receptacle is protected by a
GFCl (Ground Fault Circuit Interrupter).
GFCl shuts
off the output current from the
duplex
120V receptacle when a ground fault
occurs
in the generator or the appliance.
Please note that other receptacles are not pro-
tected by GFCI.
Caution
: To connect the appliance to locking
receptacle, insert the plug into the
re-
ceptacle and turn it clockwise to lock
Fig. 5-8
5-2-7 GFCl RECEPTACLE
After starting the engine, check the
GFCl for proper functioning by the following test procedure.
Push yellow
TEST button, The red RESET button will pop out exposing the word TRIP. Power is now off
at the outlets protected by the GFCI, indicating that the device is functioning properly..
If TRIP dose not appear when testing, do not use the generator. Call a qualified electrician.
To restore power, push RESET button.
WARNING
:
If the RESET button pops out during operation, stop the generator immediately and call a
qualified electrician for checking generator and the appliances.
- 13-
