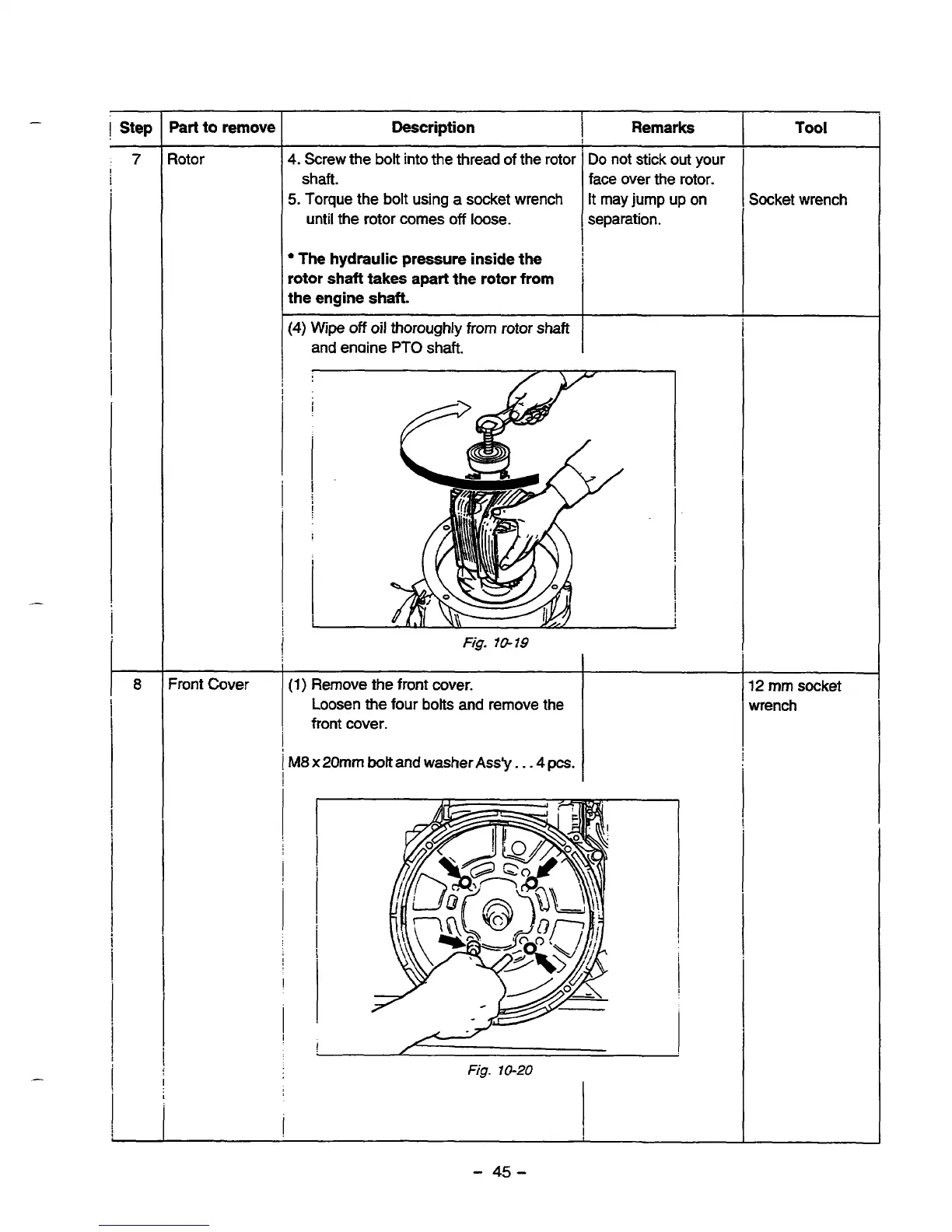

Robin RGV2800 Service Manual

i Step
Part to remove
3otor
Front Cover
L
!
I
I
1
I
I
!
!
II
I
I
!
I
!
!
Description i Remarks
4. Screw the bolt into the thread of the rotor Do not stick out your
shaft.
face over the rotor.
5. Torque the bolt using a socket wrench It may jump up on
until
the rotor comes off loose.
The hydraulic pressure inside the
rotor shaft
takes apart the rotor from
the engine shaft.
I
(4) Wipe off oil thoroughly from rotor shaft
and enaine PTO shaft.
Fig. 10- 19
[l) Remove the front cover.
Loosen
the four bolts and remove the
front cover.
M8 x 20mm bolt and washer Ass'y . . -4 pcs.
Fig. 10-20
Tool
Socket wrench
12 mm socket
wrench
- 45-
