Dust extraction
For your health and to avoid risk of fire and dust explosion, the machine should be connected to a dust
extraction system. When using the machine, the dust extraction system must always be turned on.
The machines are provided with a 120mm exhaust section on the spindle protection (above the working
table) and a 120mm disposal opening on the frame (under working table). It is advisable to connect the
disposal pipes as close as possible to the exhaust openings of the machine to direct the dust and the chips
in a joint pipe ( 160mm) to the dust extraction/disposal system.
We recommend an extraction speed of 25m/s. The flow rate of the air in the joint pipe ( 160mm) must
be higher than 1800 m3/h. To prevent wood waste in the piping, a sufficiently high transmission speed
must be guaranteed throughout the system. A minimal airspeed of about 20 meters per second for wood
dust, 25 m/s for dry shavings and 28 m/s for wet shavings is sufficient in most cases. Suction speeds
above 28 m/s are generally not technically feasible.
Operating and locking the sliding table
on T110i

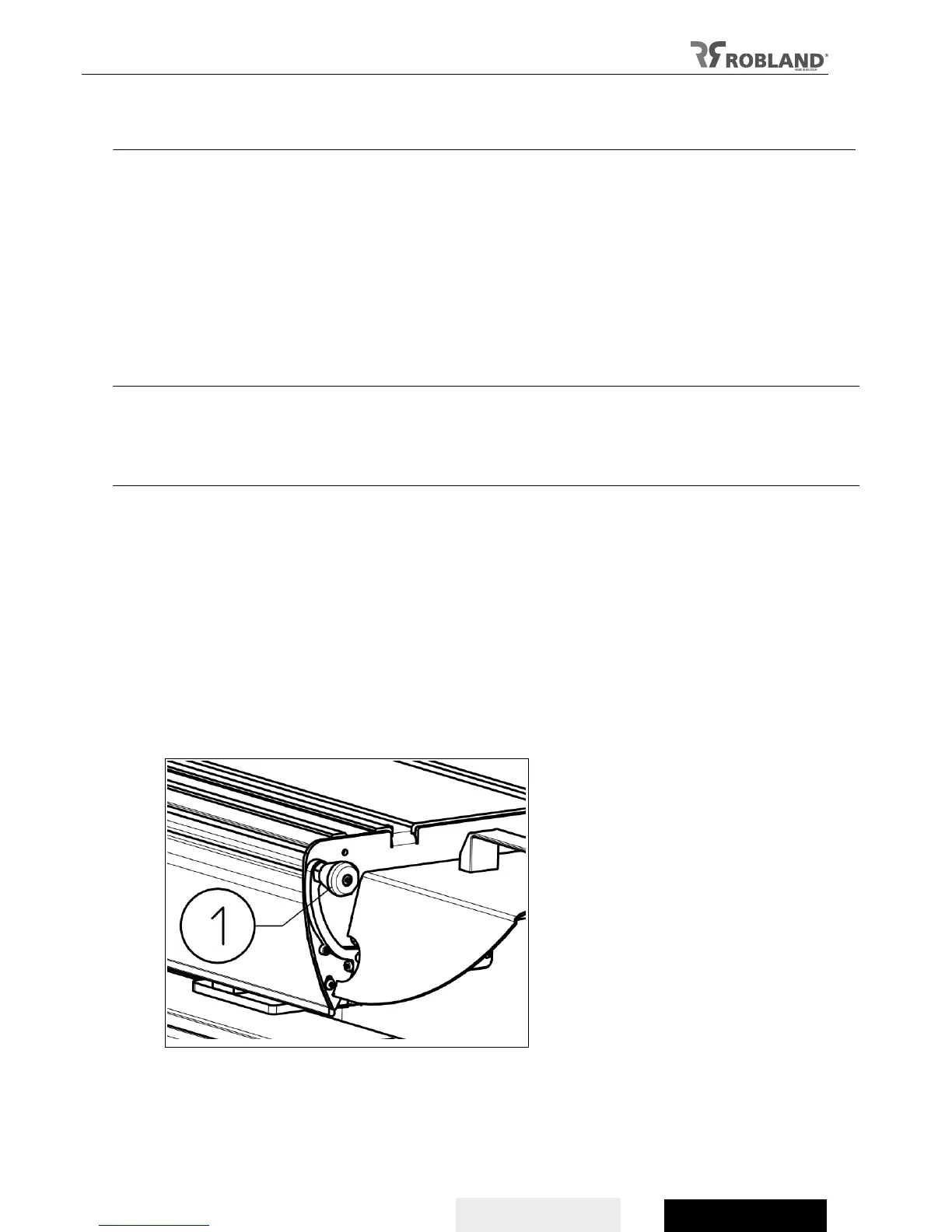

The sliding table can be blocked in 2 positions by means of a latch system. This is used when workpieces
to be modified are loaded against the parallel conductor. The latch system is located on the front of the
sliding table. Pull the knob (1) in your direction and turn to the right to free the sliding table. Pull the sliding
table backwards. At the end pull the button and turn to the left to block the sliding table.
By the repeated movements of the sliding table it is possible that the bearing cage between the two profiles
moves a little. This is also noticeable by a reduced travel distance of the sliding table. To proceed working
and restore the normal travel distance of the sliding table, you can adjust the position of the bearing cage.
Push the table with a few short, light pushes, back against the rubber end buffers.
Cleaning and maintaining the sliding table
It is important to remove on a regular basis the sawdust and other dust particles that get collected between
the trolley and the bearings cage. Push the sliding table to the end to get a better reach to the bearings
cage and gliding tracks. Lubricant, such as WD40, is extremely suitable for lubricating the rails and
provides an extra guarantee for good use and function.
