Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 52/78

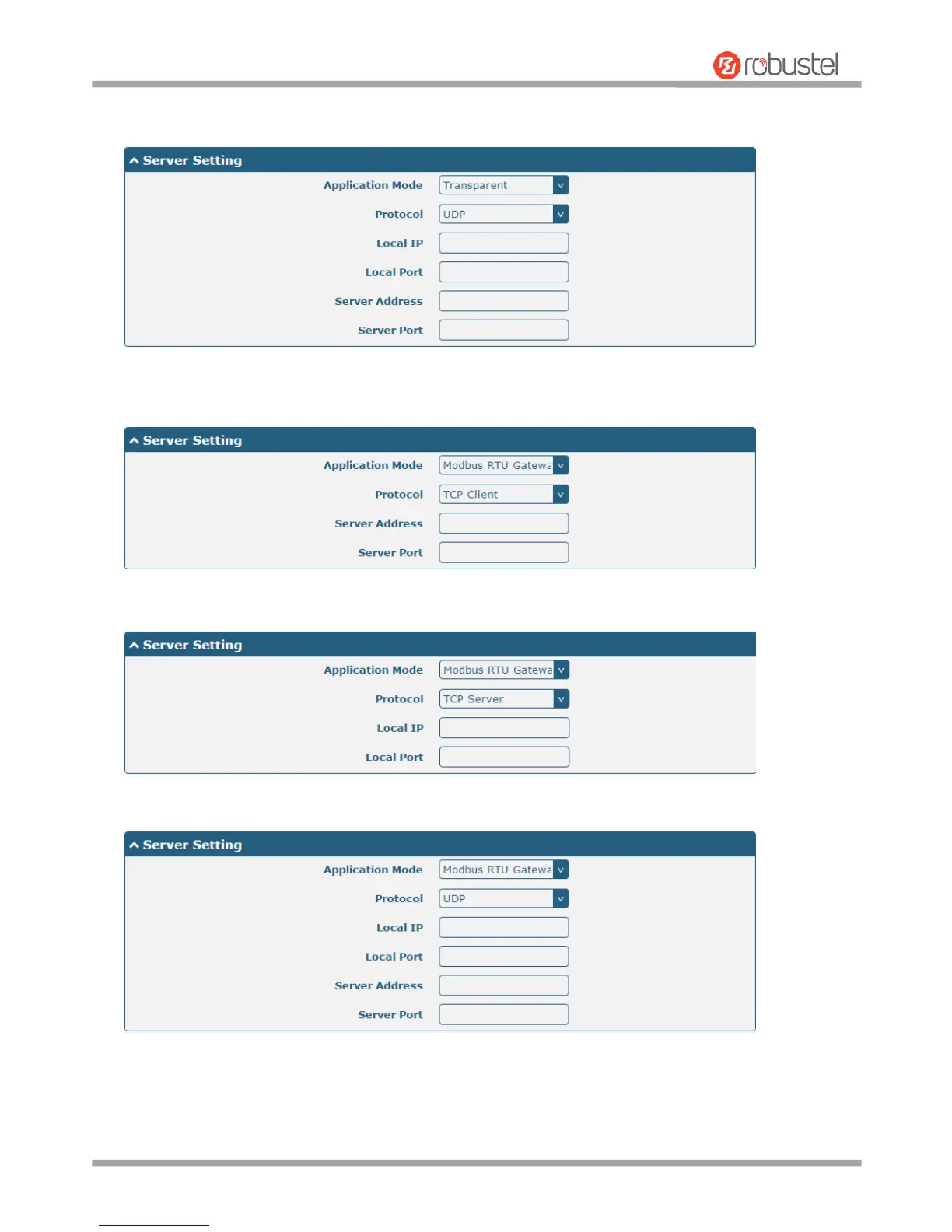

The window is displayed as below when choosing “Transparent” as the application mode and “UDP” as the
protocol.
 The window is displayed as below when choosing “Modbus RTU Gateway” as the application mode and “TCP
Client” as the protocol.
The window is displayed as below when choosing “Modbus RTU Gateway” as the application mode and “TCP
Server” as the protocol.
The window is displayed as below when choosing “Modbus RTU Gateway” as the application mode and “UDP”
as the protocol.
