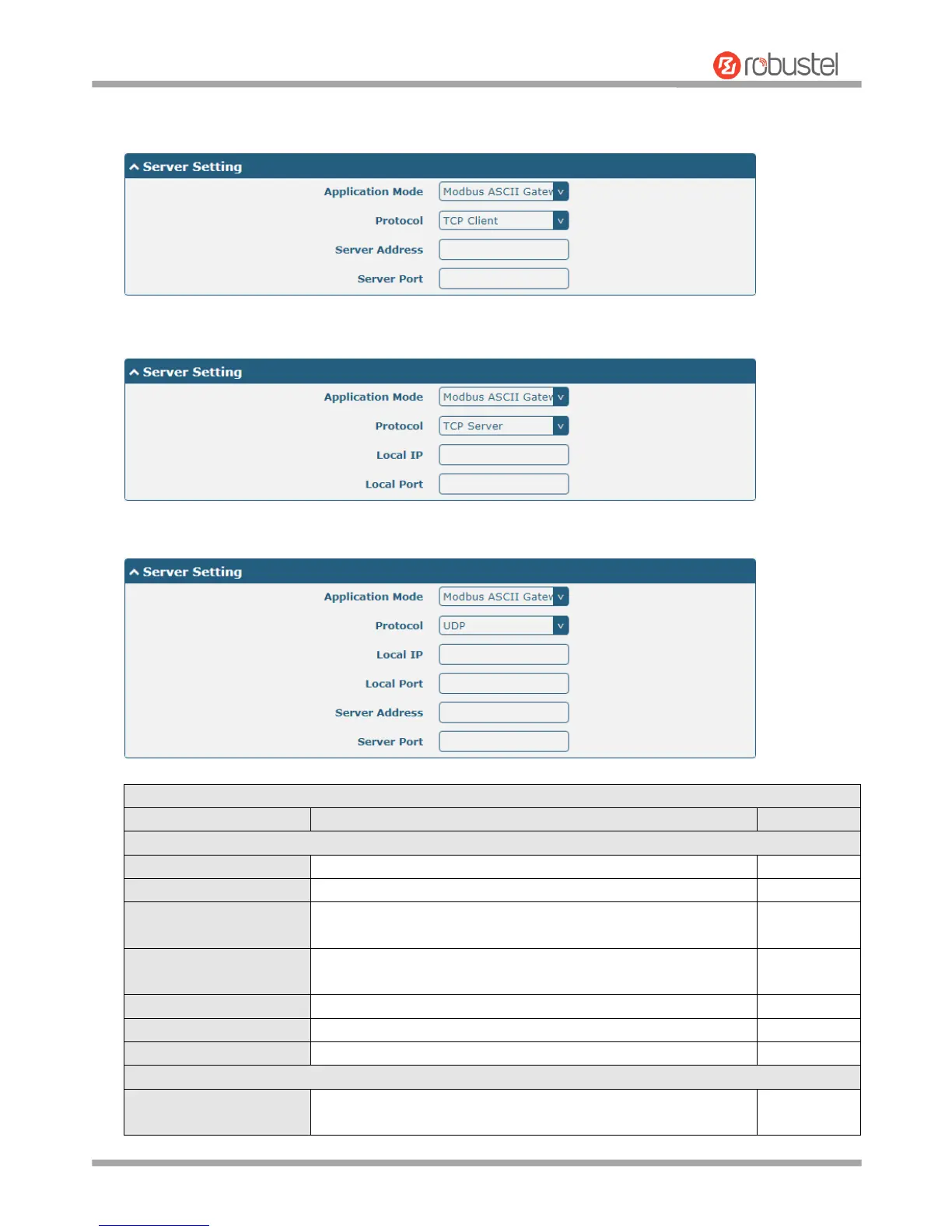

 The window is displayed as below when choosing “Modbus ASCII Gateway” as the application mode and “TCP
Client” as the protocol.
The window is displayed as below when choosing “Modbus ASCII Gateway” as the application mode and “TCP
Server” as the protocol.
The window is displayed as below when choosing “Modbus ASCII Gateway” as the application mode and “UDP”
as the protocol.
Serial Port
Item
Description
Default
Serial Port Application Settings
Index
Indicate the ordinal of the list.
--
Port
Show the current serial’s name, read only.
--
Enable
Click the toggle button to enable/disable this serial port. When
the status is OFF, the serial port is not available.
OFF
Baud Rate
Select from “300”, “600”, “1200”, “2400”, “4800”, “9600”,
“19200”, “38400”, “57600” , “115200” or “230400”.
115200
Data Bits
Select from “7” or “8”.
8
Stop Bits
Select from “1” or “2”.
1
Parity
Select from “None”, “Odd” or “Even”.
None
Data Packing
Packing Timeout
Set the packing timeout. The serial port will queue the data in the
buffer and send the data to the Cellular WAN/Ethernet WAN
50
