106 Rockwell Automation Publication 1766-UM001O-EN-P - September 2021
Chapter 5 LCD and Keypad

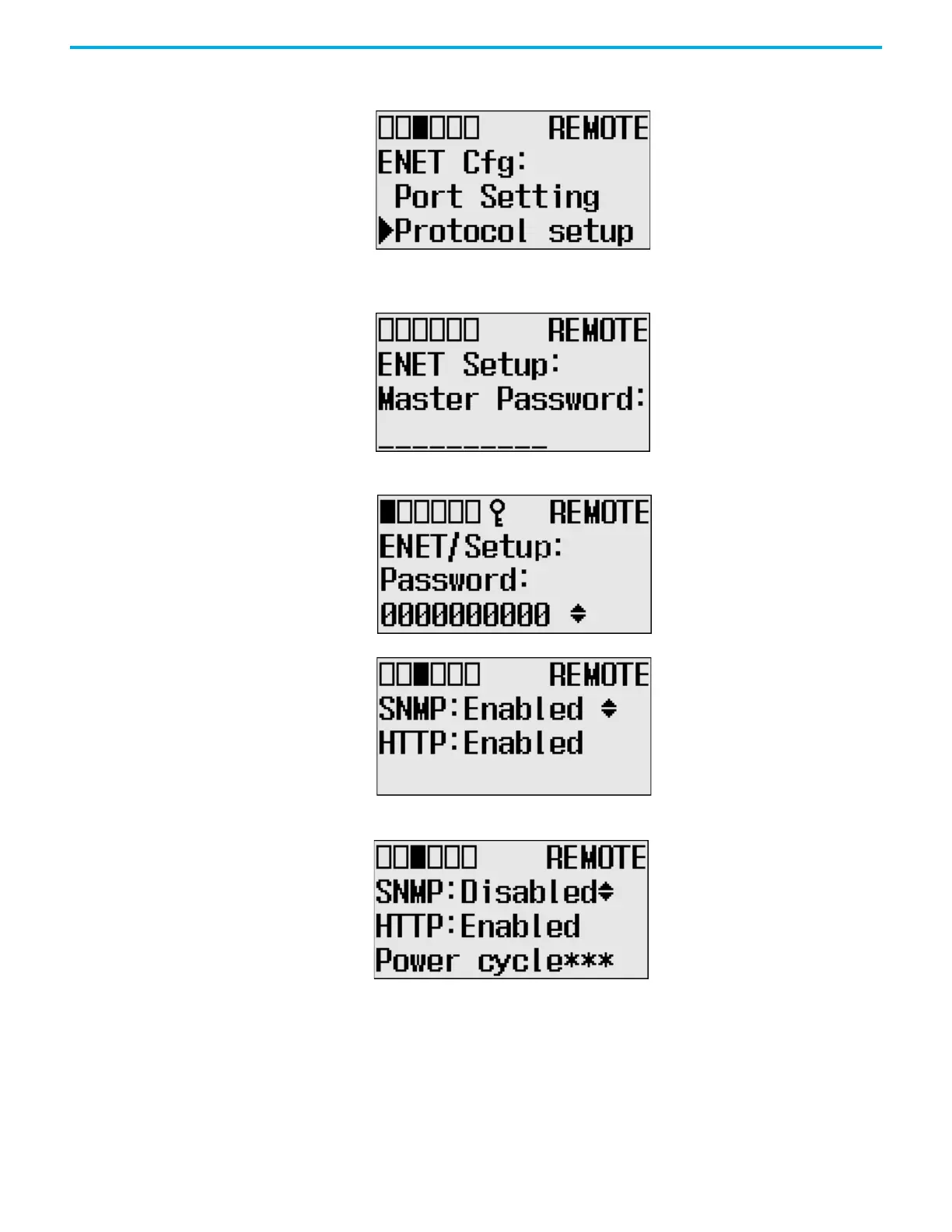

4. If Protocol setup is selected, press OK. If not, select Protocol setup using
the Up and Down keys, and then press OK.
5. The password screen displays. Press Up, Down, Left and Right keys to
enter a master password up to a maximum of 10 digits. In this example,
the current master password is allocated as 1234.
Note: For firmware revisions 21.000 or later the LCD password screen
displays.
After entering the Master password, press the OK key on the LCD keypad.
6. The following menu displays.
7. If you want to change the SNMP setting, press Up or Down and press OK
to apply the change.
