Chapter 5 LCD and Keypad
You can access the Advanced Set Menu screen shown, by selecting Advanced
Set on the Main Menu screen.
Change Key In Mode Key In Modes
There are two Key In modes, Continuous and Discrete.
The current Key In mode determines how the value changes are applied when
you press Up and Down to change the data value for a trim pot. When set to
Continuous, the changes apply immediately when you press the Up and Down
keys. When set to Discrete, the changes apply only when you press OK after
you have changed the value using the Up and Down keys.

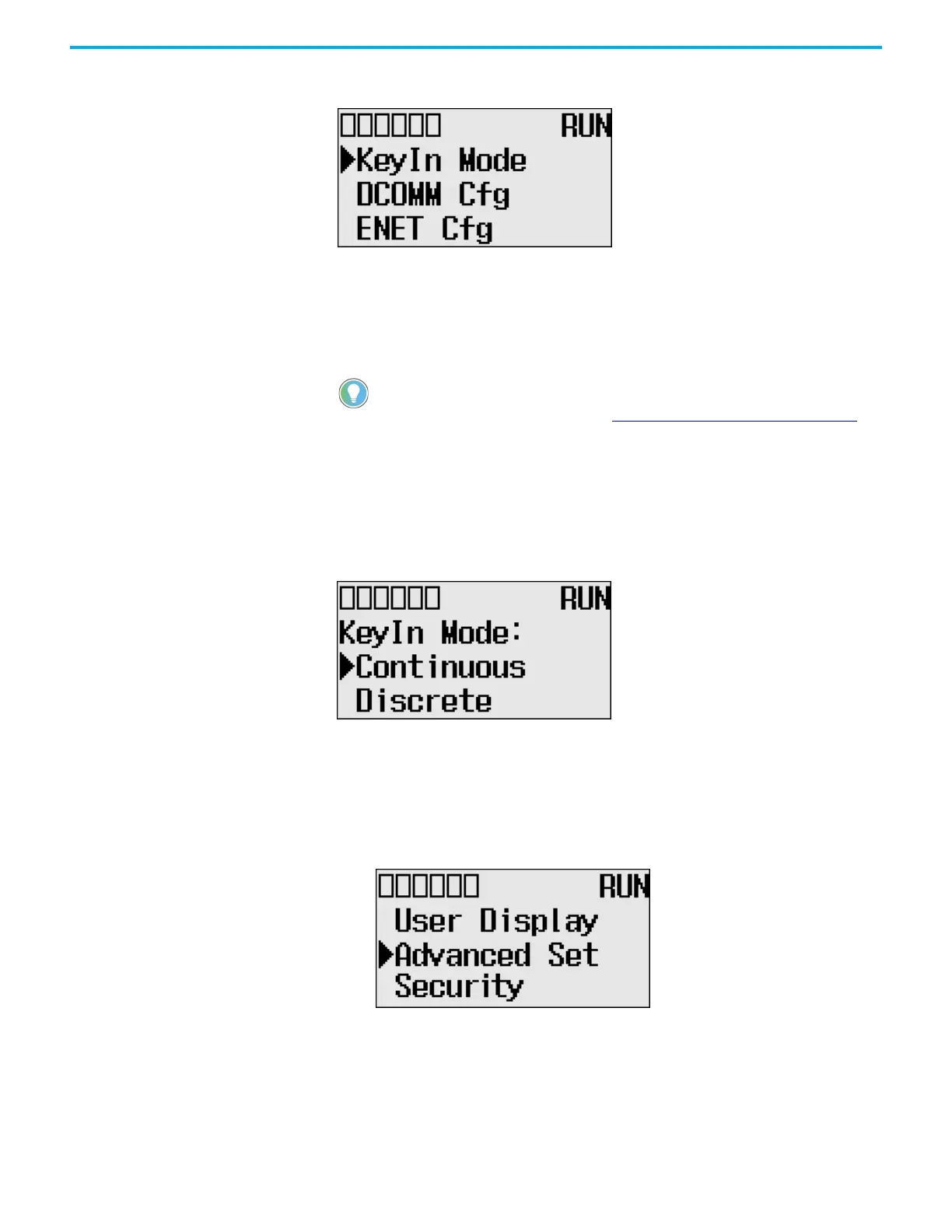

By using the Key In Mode screen shown, you can change the Key In mode to
use.
Change Key In Mode
To change the current Key In mode, perform the following:
1. On the Main Menu screen, select Advance Set by using the Up and Down
keys on the LCD keypad. If the menu items do not display on the Main
Menu screen as shown, scroll down the screen by pressing the Down key.
Note: The Security menu is available in firmware revision 21.000 or later.
The Key In mode has an effect only when you change the data value of a trim pot on a
trim pot screen, either Trim Pot 0 or Trim Pot 1 screen. For more information on how to
change the data value of a trim pot, see Change Data Value of a Trim Pot on page 107.
