Appendix F MicroLogix 1400 Distributed Network Protocol
For MicroLogix 1400 Series B and Series C controllers:

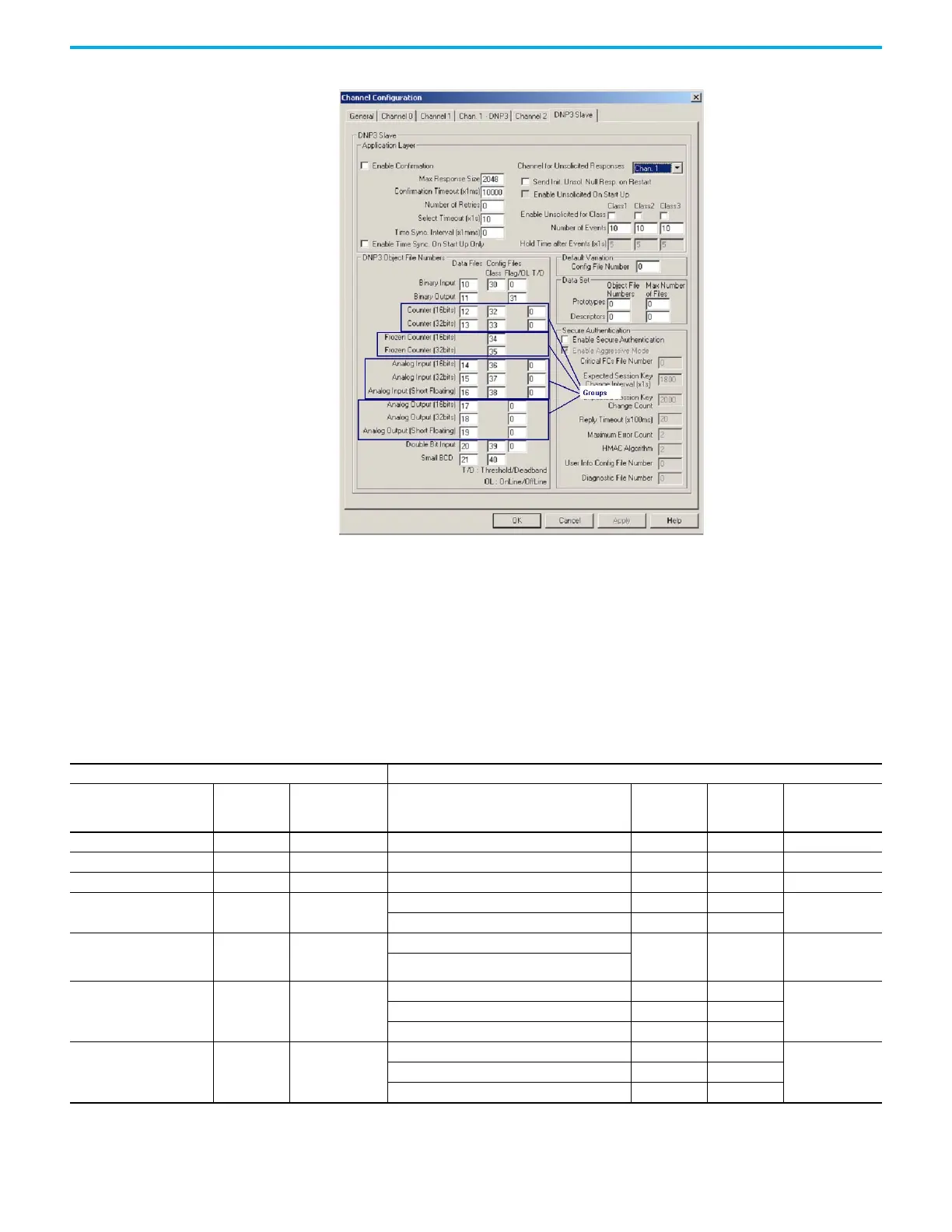

Each of the data files for a DNP3 Object will have a file number in the user
memory as shown below. You can configure the Data file number for each
DNP3 Object in the DNP3 Slave tab of the DNP3 Slave Application Layer
Configuration. File types for this object file can be Binary, Integer, Long, or
Float data files.
The file numbers for each DNP3 Object cannot be in conflict with each other.
DNP3 Data Files
Table 25 - Relationship between DNP3 Object Database and MicroLogix Data Files
DNP Objects MicroLogix Data Files
Object Name
Related
Groups
Maximum
Configurable
Index
File name for Data File Type File Number
Maximum
Configurable
Elements
Binary Input Object 1, 2 4096 Binary Input Object File Only B file 3, 9…255 256
Double Bit Binary Input Object 3, 4 2048 Double Bit Binary Input Object File Only B file 3, 9…255 256
Binary Output Object 10, 12 4096 Binary Input Object File Only B file 3, 9…255 256
Counter Object 20, 22 256
16-bit Counter Object File Only N file 7, 9…255
256
32 bit Counter Object File Only L file 9…255
Frozen Counter Object 21, 23
reflection of Counter
Object which was
configured
reflection of 16-bit Counter Object File
---
reflection of 32-bit Counter Object File
Analog Input Object 30, 32 256
16-bit Analog Input Object File Only N file 7, 9…255
25632-bit Analog Input Object File Only L file 9…255
Short Floating Point Analog Input Object File Only F file 8, 9…255
Analog Output Object 40, 41 256
16-bit Analog Output Object File Only N file 7, 9…255
25632-bit Analog Output Object File Only L file 9…255
Short Floating Point Analog Output Object File Only F file 8, 9…255
