Rockwell Automation Publication 1766-UM001O-EN-P - September 2021 165
Appendix D Use ControlFLASH to Upgrade Your Operating System

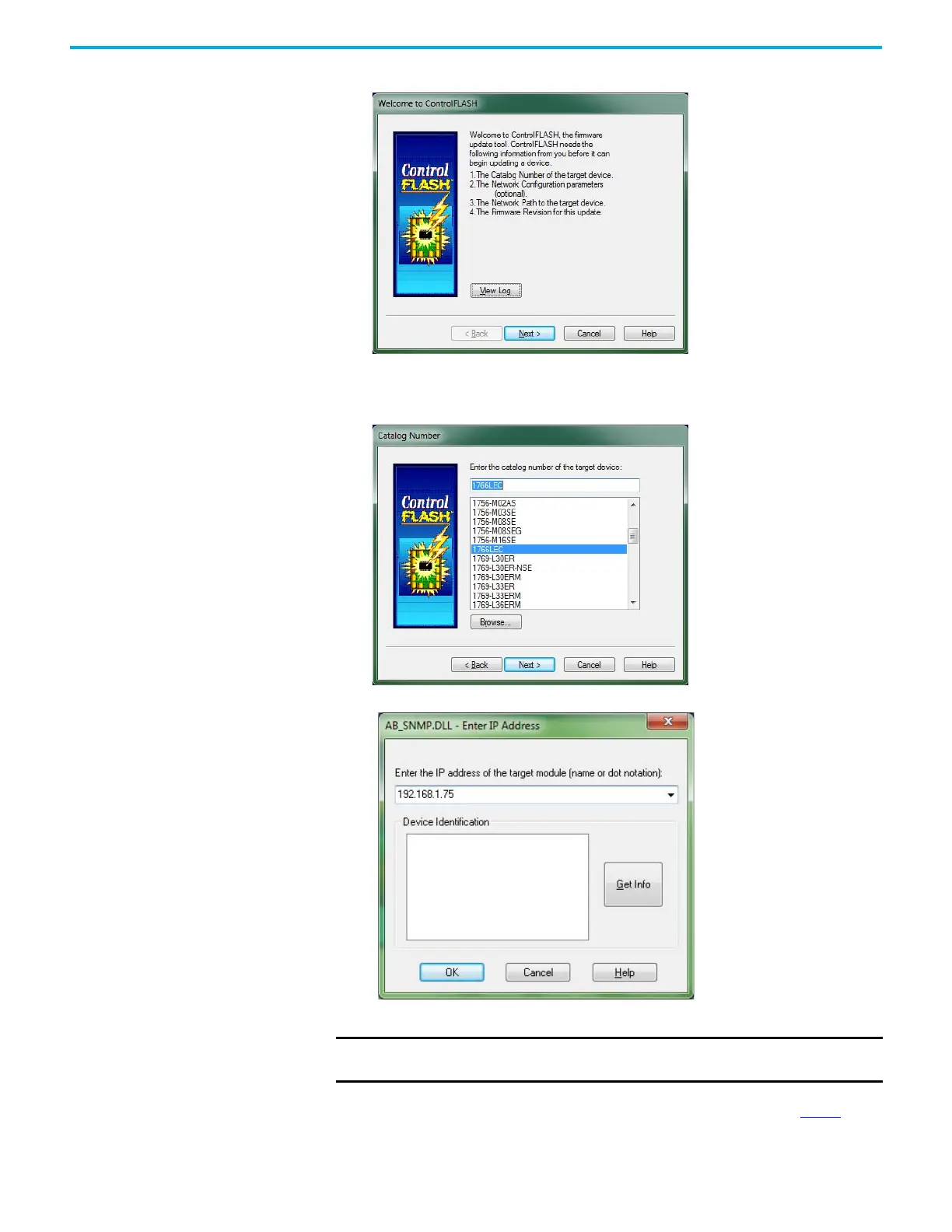

The Welcome to ControlFLASH dialog box displays.
2. Click Next.
3. Select the appropriate catalog number from the Catalog Number dialog
box and click Next.
The AB_SNMP.DLL – Enter IP Address dialog box displays.
4. Type in the IP address for the processor.
5. Click Get Info. If the IP address was previously configured and the
necessary information about the controller is obtained, go to step 9
.
IMPORTANT Use the IP address that was configured earlier, or use an available IP
address that is assigned to by your network administrator.
To Next Page
