108 Publication IASIMP-QS003B-EN-P - October 2009
Chapter 9 Create a Project in RSLogix 5000 Programming Software

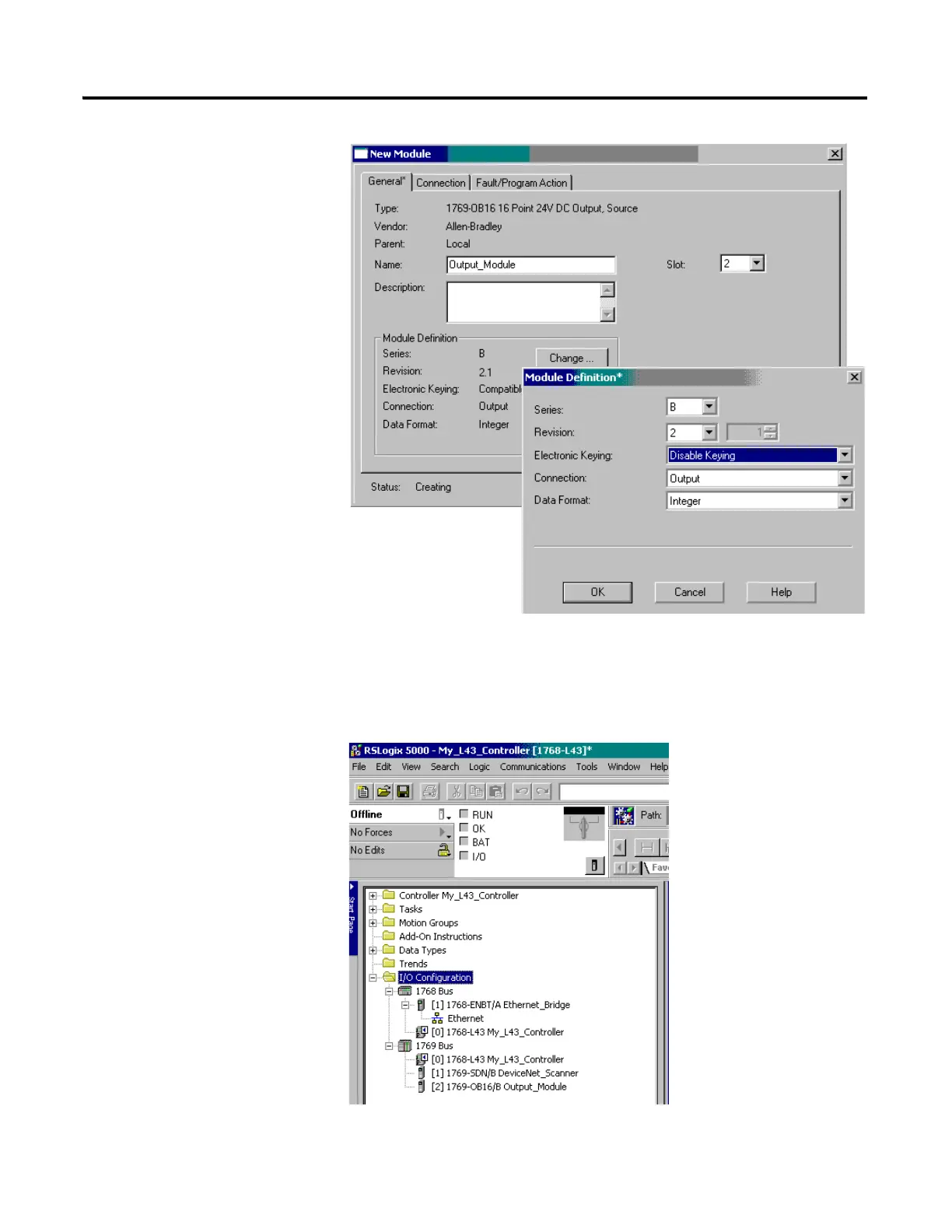

3. In the dialog box:
a. Enter a Name for the
module.
b. Set the appropriate Slot
number.
c. Click Change.
d. Select Disable Keying.
e. Click OK to accept
module definition
changes, then OK to
exit dialog box.
4. Repeat steps 1 through 3
to add all your local I/O
modules in order from
left to right.
Verify I/O Configuration
Required EtherNet/IP and DeviceNet Systems
When you are done with I/O
configuration, verify that all
modules are populated in the
I/O Configuration tree.
