Publication IASIMP-QS003B-EN-P - October 2009 139
Create a PowerFlex 70 Application Chapter 11

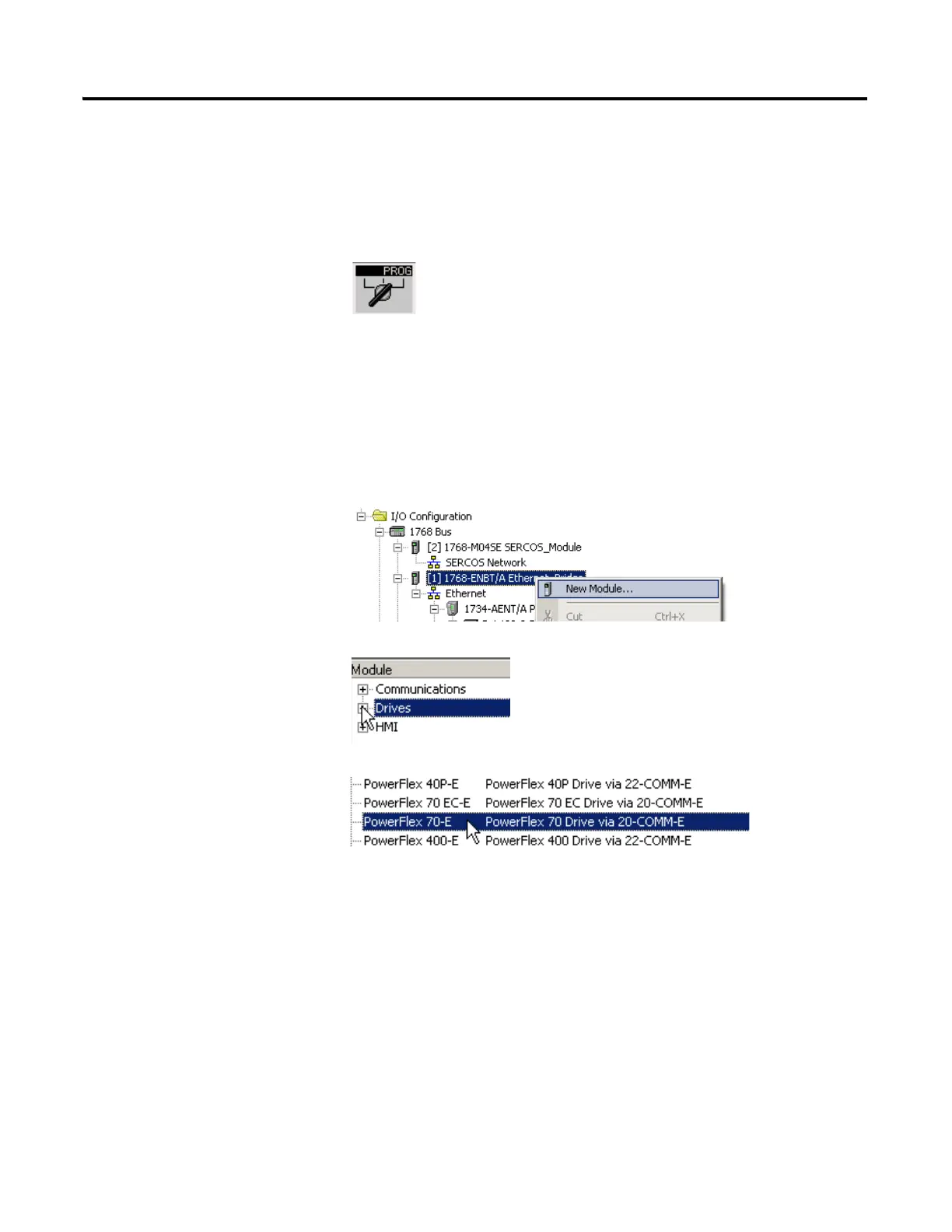

Add the Drive to Your RSLogix 5000 Project
Required for EtherNet/IP System
1. Move the controller
keyswitch to Program.
2. Launch RSLogix 5000
programming software if
not open.
3. Open the project offline.
4. Expand 1768 Bus,
right-click 1768-ENBT
Ethernet, and select New
Module.
5. Expand Drives.
6. Select the PowerFlex 70
and click OK.
To Next Page
