Chapter 12 Create a PanelView Plus Application
Create the OB16_Light Indicator

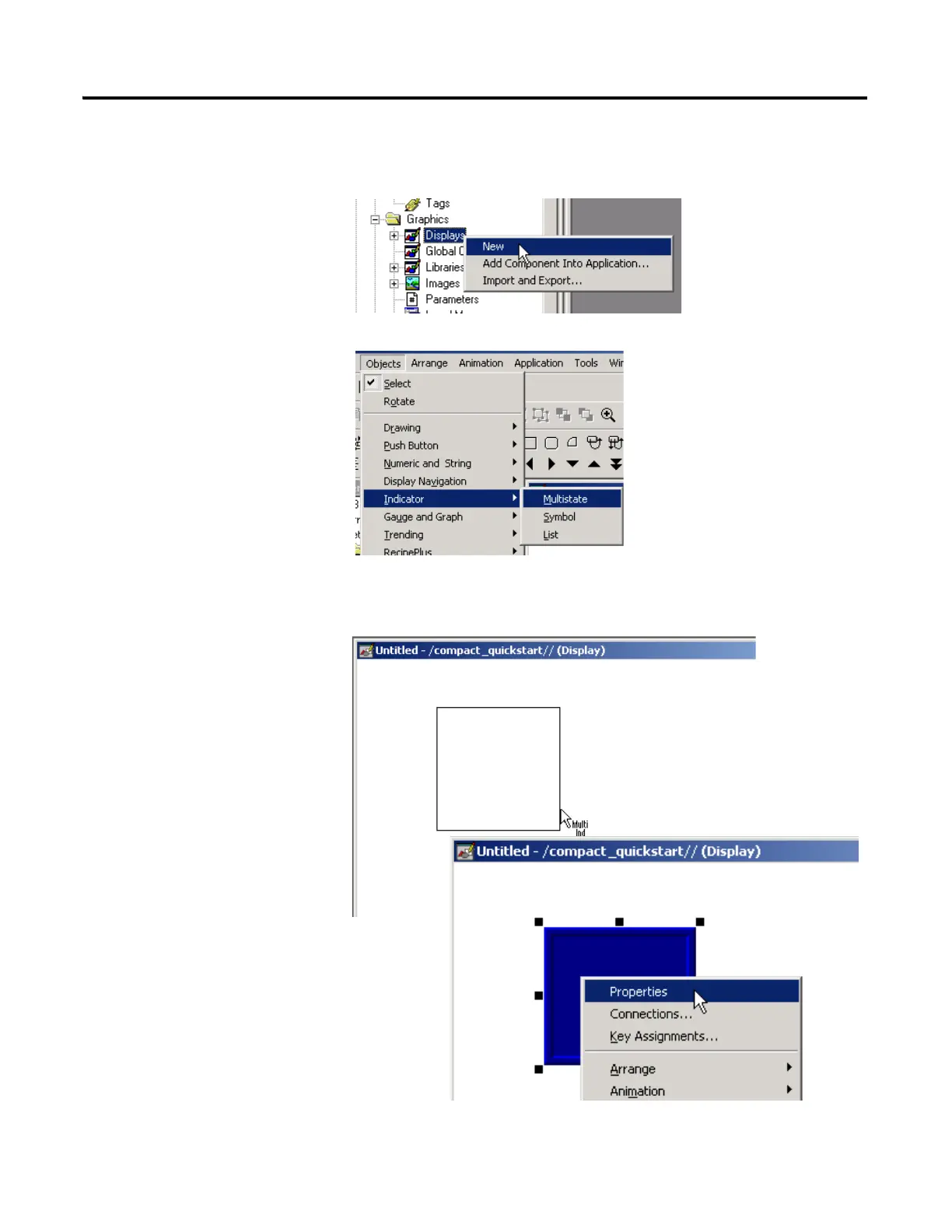

1. In FactoryTalk ME
software, under Graphics,
right-click Displays and
select New.
2. Select
Objects>Indicator>
Multistate.
3. Click and drag to create
the indicator.
4. Right-click and select
Properties.
The Multistate Indicator
Properties dialog box
opens
