Publication 2711C-UM001C-EN-P - September 2009 29
Configuration Mode Chapter 2

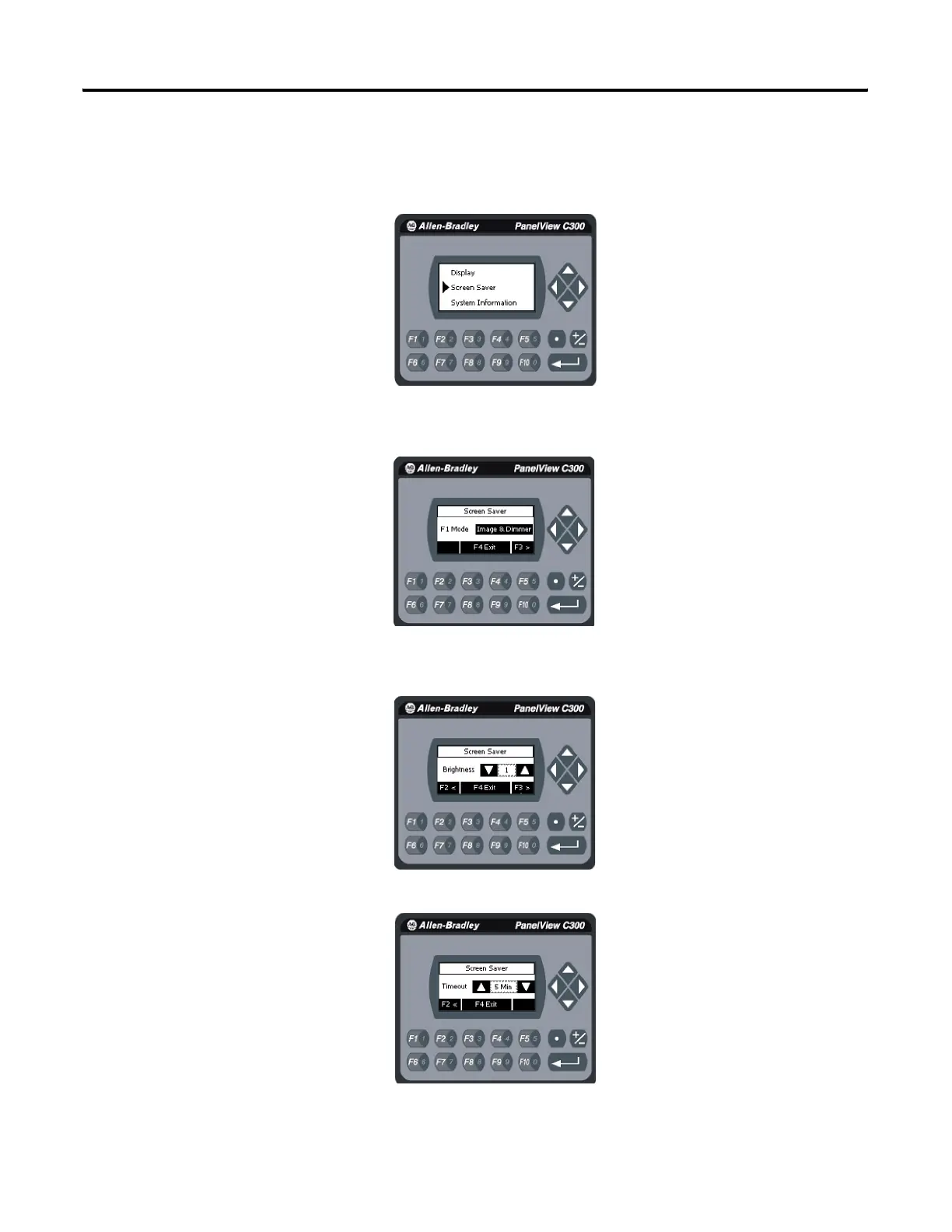

Follow these steps to configure the screen saver from the C200 and
C300 terminals.
1. Select Screen Saver on the menu list and press the enter key.
2. Press F1 to select the Mode.
Mode = Image, Disable, Dimmer, Image and Dimmer.
3. Press F3 and use the arrows to select the brightness.
Brightness 1…100, increments of 1.
4. Press F3 to get to the Timeout selection.
5. Press F1 to select the time.
Choices are 1, 2, 5, 10, 15, 20, 30, or 60 min.
